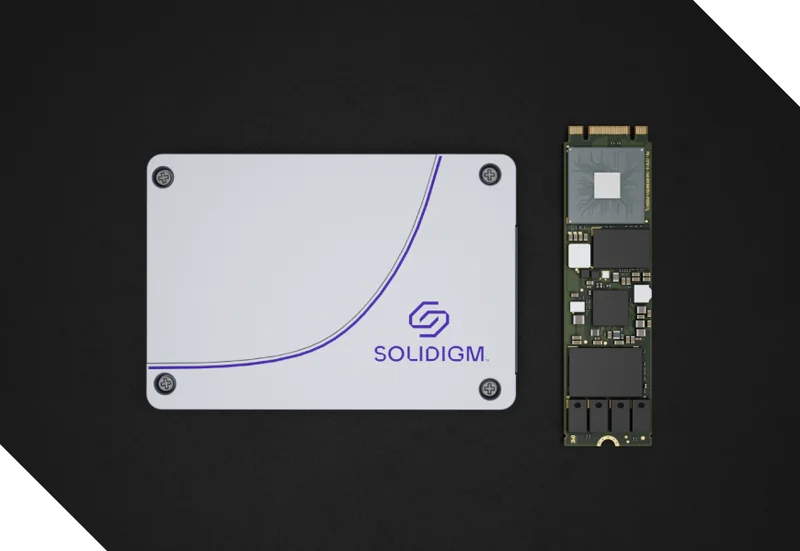

Solidigm / Intel SSDSC2KB480GZ01 D3 / S45xx Series 480GB 2.5-inch SATA III SSD

Solidigm / Intel SSDSC2KB480GZ01 D3 / S45xx Series 480GB 2.5-inch SATA III SSD

Brand: Solidigm | Category: Enterprise SSDs

SKU: SOL-SSDSC2KB480GZ01 | Part #: SSDSC2KB480GZ01 | MPN: SSDSC2KB480GZ01

Contact for Pricing — Request a Quote

Request a Quote Contact Us

About the Solidigm / Intel SSDSC2KB480GZ01 D3 / S45xx Series 480GB 2.5-inch SATA III SSD

The Solidigm / Intel SSDSC2KB480GZ01 D3 / S45xx Series 480GB 2.5-inch SATA III SSD from Solidigm is enterprise-grade Enterprise SSDs hardware built for data centers. It features 480GB capacity, 2.5" form factor, SATA interface. The Solidigm D3-S4520 Series (model SSDSC2KB480GZ01) is a 480GB 2.5-inch SATA III enterprise solid-state drive engineered for read-intensive and mixed-use server and storage workloads. Built on Intel's 3D TLC NAND technology with a DRAM cache architecture, it delivers consistent, low-latency I/O performance suited to the sustained demands of data center environments. The drive targets deployments where predictable quality-of-service (QoS) and enterprise-grade data integrity a Available in brand new condition. Solidigm enterprise ssds products are trusted by enterprises and data centers worldwide. Available from Omnixon Global. Contact our sales team to request a quote.

Technical Specifications

BrandSolidigm
CategoryEnterprise SSDs
SKUSOL-SSDSC2KB480GZ01
Part NumberSSDSC2KB480GZ01
ConditionNew
Capacity480GB
Form Factor2.5"
InterfaceSATA
Manufacturer Part NumberSSDSC2KB480GZ01
SeriesD3-S4520
Capacity480 GB
Form Factor2.5-inch (SFF)
InterfaceSATA III 6 Gb/s
NAND Flash Technology3D TLC (Triple-Level Cell) NAND
Sequential Read ThroughputUp to 550 MB/s
Sequential Write ThroughputUp to 510 MB/s
Random Read IOPS (4K)Up to 97,000 IOPS
Random Write IOPS (4K)Up to 32,000 IOPS
Endurance (TBW)1,752 TBW (over rated design life)
Drive Writes Per Day (DWPD)1.3 DWPD (5-year design life)
Power-Loss Data ProtectionYes — capacitor-backed power-loss protection circuitry
Hardware EncryptionAES 256-bit (SED — Self-Encrypting Drive)
Data Path ProtectionEnd-to-end data integrity (E2E ECC)
Active Power (Read)Approximately 2.8 W
Idle PowerApproximately 0.6 W
Operating Temperature0°C to 70°C
Dimensions (W x H x D)69.85 mm x 7.0 mm x 100.45 mm
WeightApproximately 42 g
Mean Time Between Failures (MTBF)2,000,000 hours

Frequently Asked Questions about Solidigm / Intel SSDSC2KB480GZ01 D3 / S45xx Series 480GB 2.5-inch SATA III SSD

What does the Solidigm / Intel SSDSC2KB480GZ01 D3 / S45xx Series 480GB 2.5-inch SATA III SSD do?

At 480GB, the Solidigm / Intel SSDSC2KB480GZ01 D3 / S45xx Series 480GB 2.5-inch SATA III SSD suits enterprise data-center storage tiers — all-flash arrays, hyperconverged storage pools (vSAN, Ceph), database backends, and high-throughput backup repositories. The SATA interface is supported by major server platforms.

What are the headline specs of the Solidigm / Intel SSDSC2KB480GZ01 D3 / S45xx Series 480GB 2.5-inch SATA III SSD?

Key specifications for the Solidigm / Intel SSDSC2KB480GZ01 D3 / S45xx Series 480GB 2.5-inch SATA III SSD: capacity 480GB; form factor 2.5-inch SATA III; interface SATA; new condition; capacity 480GB; series D3 / S45xx Series; interface / form factor 2.5-inch SATA III; drive class Enterprise SSD; use case Servers, storage arrays, virtualization, and cloud infrastructure. Manufacturer part number SSDSC2KB480GZ01. For the full datasheet with electrical, environmental, and compliance details, contact our pre-sales engineering team.

Is the Solidigm / Intel SSDSC2KB480GZ01 D3 / S45xx Series 480GB 2.5-inch SATA III SSD compatible with my infrastructure?

The Solidigm / Intel SSDSC2KB480GZ01 D3 / S45xx Series 480GB 2.5-inch SATA III SSD uses a SATA interface in a 2.5-inch SATA III form factor. It's compatible with server platforms that expose this interface — typical deployments include Dell PowerEdge, HPE ProLiant, Lenovo ThinkSystem, and Supermicro SuperServer chassis. For specific vendor part-number compatibility, our team validates against the manufacturer support matrix.
