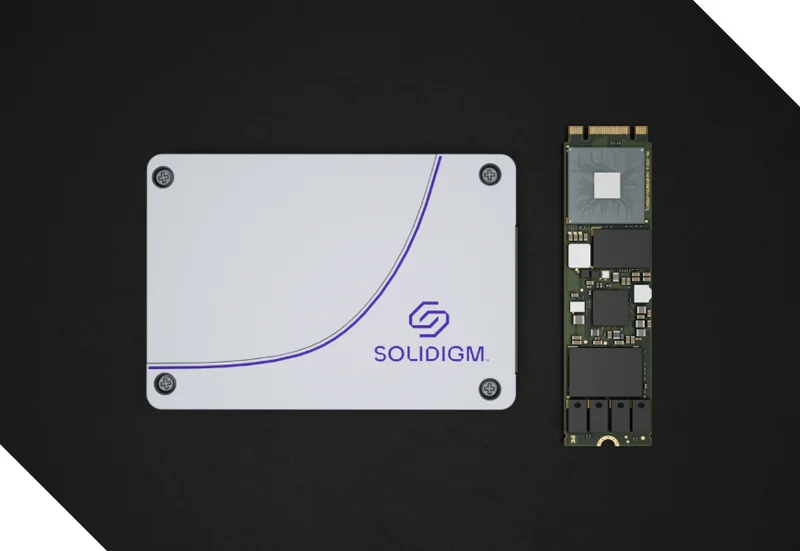

Solidigm / Intel SSDSC2KB480G801 D3-S4510 480GB 2.5-inch SATA III SSD
Brand: Solidigm | Category: Enterprise SSDs
SKU: SOL-SSDSC2KB480G801 | Part #: SSDSC2KB480G801 | MPN: SSDSC2KB480G801
Contact for Pricing — Request a Quote
About the Solidigm / Intel SSDSC2KB480G801 D3-S4510 480GB 2.5-inch SATA III SSD
The Solidigm / Intel SSDSC2KB480G801 D3-S4510 480GB 2.5-inch SATA III SSD from Solidigm is enterprise-grade Enterprise SSDs hardware built for data centers. It features 480GB capacity, 2.5" form factor, SATA interface. The Solidigm D3-S4510 (model SSDSC2KB480G801) is a 2.5-inch SATA III enterprise solid-state drive delivering 480GB of usable capacity. Built on Intel's 64-layer 3D TLC NAND with a purpose-designed enterprise controller, the D3-S4510 targets read-intensive and mixed-use server workloads where sustained, predictable throughput and consistent low latency are non-negotiable. The drive adheres to the SATA 6Gb/s interface standard and fits the universally supported 2.5-inch, 7mm z- Available in brand new condition. Solidigm enterprise ssds products are trusted by enterprises and data centers worldwide. Available from Omnixon Global. Contact our sales team to request a quote.
Technical Specifications
| Brand | Solidigm |
| Category | Enterprise SSDs |
| SKU | SOL-SSDSC2KB480G801 |
| Part Number | SSDSC2KB480G801 |
| Condition | New |
| Capacity | 480GB |
| Form Factor | 2.5" |
| Interface | SATA |
| Manufacturer Part Number | SSDSC2KB480G801 |
| Product Line | D3-S4510 Series |
| Capacity | 480 GB |
| Form Factor | 2.5-inch |
| Height (Z-height) | 7 mm |
| Interface | SATA III 6Gb/s |
| NAND Flash Type | 64-layer 3D TLC NAND |
| Sequential Read Speed | Up to 560 MB/s |
| Sequential Write Speed | Up to 510 MB/s |
| Random 4K Read IOPS | Up to 97,000 |
| Random 4K Write IOPS | Up to 36,000 |
| Endurance (TBW) | 876 TBW |
| Drive Writes Per Day (DWPD) | 1 DWPD (5-year rated period) |
| Power-Loss Protection | Power-Loss Imminent (PLI) with onboard capacitors |
| Encryption | AES 256-bit hardware encryption; TCG Opal 2.0 compliant |
| Data Integrity | End-to-End Data Path Protection (E2E DPP) |
| Active Power (Read) | Approximately 2.8 W |
| Idle Power | Approximately 1.0 W |
| Operating Temperature | 0°C to 70°C |
| Shock Resistance (Operating) | 1000 G / 0.5 ms |
| Mean Time Between Failures (MTBF) | 2,000,000 hours |
Frequently Asked Questions about Solidigm / Intel SSDSC2KB480G801 D3-S4510 480GB 2.5-inch SATA III SSD
What does the Solidigm / Intel SSDSC2KB480G801 D3-S4510 480GB 2.5-inch SATA III SSD do?
At 480GB, the Solidigm / Intel SSDSC2KB480G801 D3-S4510 480GB 2.5-inch SATA III SSD suits enterprise data-center storage tiers — all-flash arrays, hyperconverged storage pools (vSAN, Ceph), database backends, and high-throughput backup repositories. The SATA interface is supported by major server platforms.
What are the headline specs of the Solidigm / Intel SSDSC2KB480G801 D3-S4510 480GB 2.5-inch SATA III SSD?
Key specifications for the Solidigm / Intel SSDSC2KB480G801 D3-S4510 480GB 2.5-inch SATA III SSD: capacity 480GB; form factor 2.5-inch SATA III; interface SATA; new condition; capacity 480GB; series D3-S4510; interface / form factor 2.5-inch SATA III; drive class Enterprise SSD; use case Servers, storage arrays, virtualization, and cloud infrastructure. Manufacturer part number SSDSC2KB480G801. For the full datasheet with electrical, environmental, and compliance details, contact our pre-sales engineering team.
Is the Solidigm / Intel SSDSC2KB480G801 D3-S4510 480GB 2.5-inch SATA III SSD compatible with my infrastructure?
The Solidigm / Intel SSDSC2KB480G801 D3-S4510 480GB 2.5-inch SATA III SSD uses a SATA interface in a 2.5-inch SATA III form factor. It's compatible with server platforms that expose this interface — typical deployments include Dell PowerEdge, HPE ProLiant, Lenovo ThinkSystem, and Supermicro SuperServer chassis. For specific vendor part-number compatibility, our team validates against the manufacturer support matrix.
