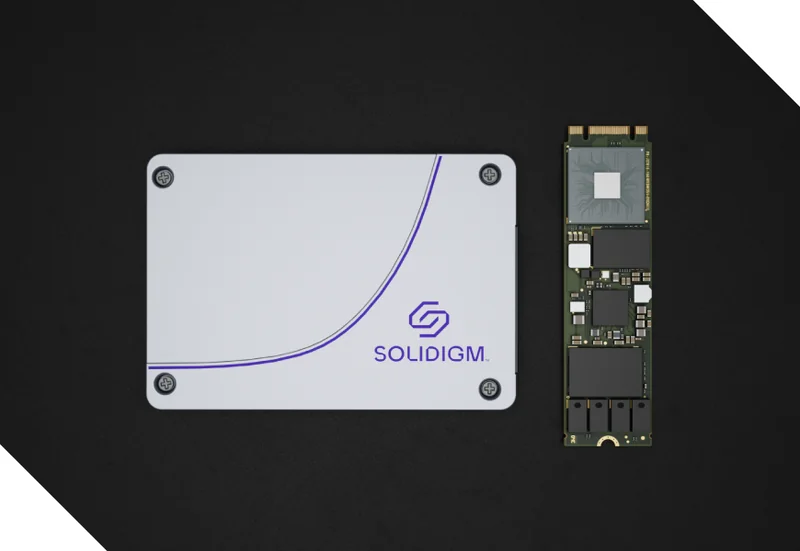

Solidigm / Intel SSDSC2KB076TZ01 D3 / S45xx Series 7.68TB 2.5-inch SATA III SSD
Brand: Solidigm | Category: Enterprise SSDs
SKU: SOL-SSDSC2KB076TZ01 | Part #: SSDSC2KB076TZ01 | MPN: SSDSC2KB076TZ01
Contact for Pricing — Request a Quote
About the Solidigm / Intel SSDSC2KB076TZ01 D3 / S45xx Series 7.68TB 2.5-inch SATA III SSD
The Solidigm / Intel SSDSC2KB076TZ01 D3 / S45xx Series 7.68TB 2.5-inch SATA III SSD from Solidigm is enterprise-grade Enterprise SSDs hardware built for data centers. It features 7.68TB capacity, 2.5" form factor, SATA interface. The Solidigm D3-S4520 Series SSDSC2KB076TZ01 is a 7.68TB 2.5-inch SATA III enterprise solid-state drive built on 3D NAND technology and engineered for read-intensive and mixed-use data center workloads. Designed as a direct evolution of Intel's enterprise SATA SSD lineage following the Solidigm acquisition, this drive delivers consistent, predictable latency and sustained throughput across demanding server and storage environments. The D3-S4520 is optimized for rack-mounted s Available in brand new condition. Solidigm enterprise ssds products are trusted by enterprises and data centers worldwide. Available from Omnixon Global. Contact our sales team to request a quote.
Technical Specifications
| Brand | Solidigm |
| Category | Enterprise SSDs |
| SKU | SOL-SSDSC2KB076TZ01 |
| Part Number | SSDSC2KB076TZ01 |
| Condition | New |
| Capacity | 7.68TB |
| Form Factor | 2.5" |
| Interface | SATA |
| Series | D3-S4520 |
| Manufacturer Part Number | SSDSC2KB076TZ01 |
| Form Factor | 2.5-inch |
| Interface | SATA III 6 Gb/s |
| Capacity | 7.68 TB |
| NAND Technology | 3D TLC NAND |
| Sequential Read Speed | Up to 550 MB/s |
| Sequential Write Speed | Up to 510 MB/s |
| Random Read IOPS (4K) | Up to 97,000 IOPS |
| Random Write IOPS (4K) | Up to 32,000 IOPS |
| Endurance (TBW) | 14,016 TBW |
| Drive Writes Per Day (DWPD) | 1 DWPD (over 5 years) |
| Power-Loss Data Protection | Yes — capacitor-based protection for in-flight data |
| End-to-End Data Path Protection | Yes |
| Encryption | AES 256-bit hardware encryption; TCG Opal 2.0, IEEE 1667 |
| Power Consumption (Active Read) | Approximately 4.2 W |
| Power Consumption (Active Write) | Approximately 4.5 W |
| Operating Temperature | 0°C to 70°C |
| Dimensions | 100.45 mm x 69.85 mm x 7.0 mm |
| Weight | Approximately 72 g |
| MTBF | 2,000,000 hours |
Frequently Asked Questions about Solidigm / Intel SSDSC2KB076TZ01 D3 / S45xx Series 7.68TB 2.5-inch SATA III SSD
What does the Solidigm / Intel SSDSC2KB076TZ01 D3 / S45xx Series 7.68TB 2.5-inch SATA III SSD do?
At 7.68TB, the Solidigm / Intel SSDSC2KB076TZ01 D3 / S45xx Series 7.68TB 2.5-inch SATA III SSD suits enterprise data-center storage tiers — all-flash arrays, hyperconverged storage pools (vSAN, Ceph), database backends, and high-throughput backup repositories. The SATA interface is supported by major server platforms.
What are the headline specs of the Solidigm / Intel SSDSC2KB076TZ01 D3 / S45xx Series 7.68TB 2.5-inch SATA III SSD?
Key specifications for the Solidigm / Intel SSDSC2KB076TZ01 D3 / S45xx Series 7.68TB 2.5-inch SATA III SSD: capacity 7.68TB; form factor 2.5-inch SATA III; interface SATA; new condition; capacity 7.68TB; series D3 / S45xx Series; interface / form factor 2.5-inch SATA III; drive class Enterprise SSD; use case Servers, storage arrays, virtualization, and cloud infrastructure. Manufacturer part number SSDSC2KB076TZ01. For the full datasheet with electrical, environmental, and compliance details, contact our pre-sales engineering team.
Is the Solidigm / Intel SSDSC2KB076TZ01 D3 / S45xx Series 7.68TB 2.5-inch SATA III SSD compatible with my infrastructure?
The Solidigm / Intel SSDSC2KB076TZ01 D3 / S45xx Series 7.68TB 2.5-inch SATA III SSD uses a SATA interface in a 2.5-inch SATA III form factor. It's compatible with server platforms that expose this interface — typical deployments include Dell PowerEdge, HPE ProLiant, Lenovo ThinkSystem, and Supermicro SuperServer chassis. For specific vendor part-number compatibility, our team validates against the manufacturer support matrix.
