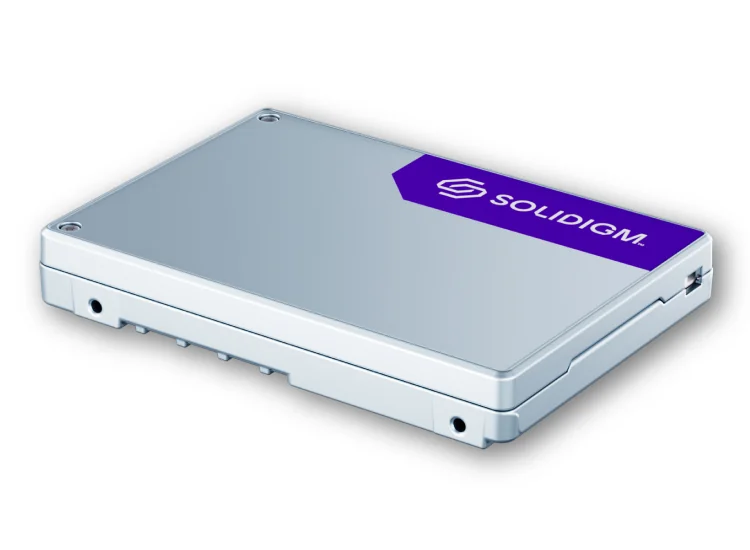

Solidigm / Intel SSDPF2NV307TZN1 D5 / D7 Series 30.72TB PCIe NVMe SSD
Brand: Solidigm | Category: Enterprise SSDs
SKU: SOL-SSDPF2NV307TZN1 | Part #: SSDPF2NV307TZN1 | MPN: SSDPF2NV307TZN1
Contact for Pricing — Request a Quote
About the Solidigm / Intel SSDPF2NV307TZN1 D5 / D7 Series 30.72TB PCIe NVMe SSD
The Solidigm / Intel SSDPF2NV307TZN1 D5 / D7 Series 30.72TB PCIe NVMe SSD from Solidigm is enterprise-grade Enterprise SSDs hardware built for data centers. It features 30.72TB capacity, PCIe form factor, NVMe interface. The Solidigm D5-P5336 series, represented by part number SSDPF2NV307TZN1, delivers 30.72TB of QLC NAND-based storage in a U.2 15mm form factor, purpose-built for read-intensive enterprise workloads. Leveraging Solidigm's fourth-generation QLC NAND technology and a PCIe 4.0 x4 NVMe interface, this drive achieves high sequential read throughput while maintaining the low, predictable latency demanded by data center environments. The architecture is optimized to sustain performan Available in brand new condition. Solidigm enterprise ssds products are trusted by enterprises and data centers worldwide. Available from Omnixon Global. Contact our sales team to request a quote.
Technical Specifications
| Brand | Solidigm |
| Category | Enterprise SSDs |
| SKU | SOL-SSDPF2NV307TZN1 |
| Part Number | SSDPF2NV307TZN1 |
| Condition | New |
| Capacity | 30.72TB |
| Form Factor | PCIe |
| Interface | NVMe |
| Product Series | D5-P5336 |
| Manufacturer Part Number | SSDPF2NV307TZN1 |
| Capacity | 30.72 TB |
| Form Factor | U.2 15mm (2.5-inch) |
| Interface | PCIe 4.0 x4, NVMe 1.4 |
| NAND Technology | QLC (Quad-Level Cell) NAND |
| Sequential Read Throughput | Up to 7,000 MB/s |
| Sequential Write Throughput | Up to 3,200 MB/s |
| Random Read IOPS (4K) | Up to 1,500,000 IOPS |
| Random Write IOPS (4K) | Up to 200,000 IOPS |
| Read Latency (Average) | 120 µs |
| Write Latency (Average) | 35 µs |
| Endurance (Drive Writes Per Day) | 0.58 DWPD |
| Total Bytes Written (TBW) | Approximately 6,400 TBW (over rated life) |
| Power Consumption (Active Read) | Approximately 25 W |
| Power Loss Protection | Yes (capacitor-based) |
| Security | TCG Opal 2.0, AES 256-bit encryption |
| Operating Temperature | 0°C to 70°C |
| Connector | SFF-8639 (U.2) |
| Dimensions | 100.45 mm x 69.85 mm x 15 mm |
| MTBF | 2,000,000 hours |
Frequently Asked Questions about Solidigm / Intel SSDPF2NV307TZN1 D5 / D7 Series 30.72TB PCIe NVMe SSD
What does the Solidigm / Intel SSDPF2NV307TZN1 D5 / D7 Series 30.72TB PCIe NVMe SSD do?
At 30.72TB, the Solidigm / Intel SSDPF2NV307TZN1 D5 / D7 Series 30.72TB PCIe NVMe SSD suits enterprise data-center storage tiers — all-flash arrays, hyperconverged storage pools (vSAN, Ceph), database backends, and high-throughput backup repositories. The NVMe interface is supported by major server platforms.
What are the headline specs of the Solidigm / Intel SSDPF2NV307TZN1 D5 / D7 Series 30.72TB PCIe NVMe SSD?
Key specifications for the Solidigm / Intel SSDPF2NV307TZN1 D5 / D7 Series 30.72TB PCIe NVMe SSD: capacity 30.72TB; form factor PCIe NVMe; interface NVMe; new condition; capacity 30.72TB; series D5 / D7 Series; interface / form factor PCIe NVMe; drive class Enterprise SSD; use case Servers, storage arrays, virtualization, and cloud infrastructure. Manufacturer part number SSDPF2NV307TZN1. For the full datasheet with electrical, environmental, and compliance details, contact our pre-sales engineering team.
Is the Solidigm / Intel SSDPF2NV307TZN1 D5 / D7 Series 30.72TB PCIe NVMe SSD compatible with my infrastructure?
The Solidigm / Intel SSDPF2NV307TZN1 D5 / D7 Series 30.72TB PCIe NVMe SSD uses a NVMe interface in a PCIe NVMe form factor. It's compatible with server platforms that expose this interface — typical deployments include Dell PowerEdge, HPE ProLiant, Lenovo ThinkSystem, and Supermicro SuperServer chassis. For specific vendor part-number compatibility, our team validates against the manufacturer support matrix.
