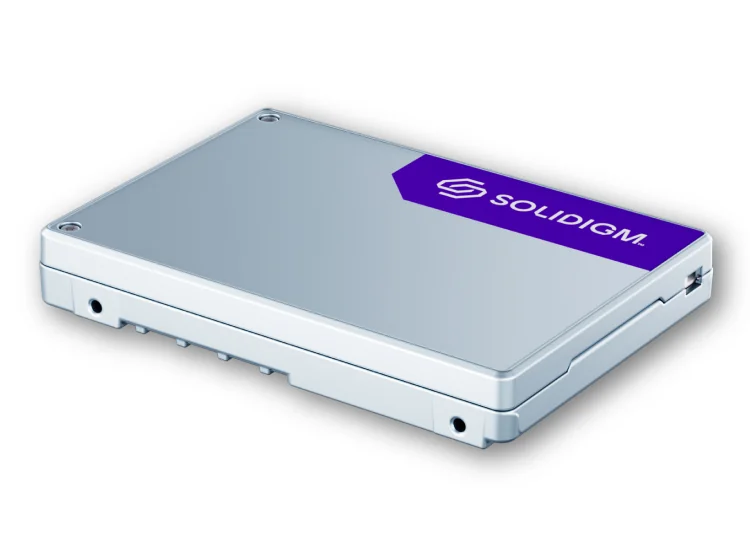

Solidigm / Intel SSDPF2KX076T9N1 D5 / D7 Series 7.68TB PCIe NVMe SSD
Brand: Solidigm | Category: Enterprise SSDs
SKU: SOL-SSDPF2KX076T9N1 | Part #: SSDPF2KX076T9N1 | MPN: SSDPF2KX076T9N1
Contact for Pricing — Request a Quote
About the Solidigm / Intel SSDPF2KX076T9N1 D5 / D7 Series 7.68TB PCIe NVMe SSD
The Solidigm / Intel SSDPF2KX076T9N1 D5 / D7 Series 7.68TB PCIe NVMe SSD from Solidigm is enterprise-grade Enterprise SSDs hardware built for data centers. It features 7.68TB capacity, PCIe form factor, NVMe interface. The Solidigm D5-P5336 series 7.68TB NVMe SSD (SSDPF2KX076T9N1) is a high-density, read-optimized enterprise solid-state drive built on Solidigm's QLC (Quad-Level Cell) NAND technology and paired with a PCIe 4.0 x4 host interface. Designed for data center environments where capacity efficiency and consistent sequential read performance are paramount, this drive delivers up to 7,000 MB/s sequential read throughput and sustained random read IOPS suited to large-scale read-intens Available in brand new condition. Solidigm enterprise ssds products are trusted by enterprises and data centers worldwide. Available from Omnixon Global. Contact our sales team to request a quote.
Technical Specifications
| Brand | Solidigm |
| Category | Enterprise SSDs |
| SKU | SOL-SSDPF2KX076T9N1 |
| Part Number | SSDPF2KX076T9N1 |
| Condition | New |
| Capacity | 7.68TB |
| Form Factor | PCIe |
| Interface | NVMe |
| Product Series | D5-P5336 |
| Manufacturer Part Number | SSDPF2KX076T9N1 |
| Raw Capacity | 7.68 TB |
| Form Factor | 2.5-inch U.2 (SFF-8639) |
| Interface | PCIe 4.0 x4, NVMe 1.4 |
| NAND Technology | QLC (Quad-Level Cell) 3D NAND |
| Sequential Read Throughput | Up to 7,000 MB/s |
| Sequential Write Throughput | Up to 3,300 MB/s |
| Random Read IOPS | Up to 1,500,000 IOPS |
| Random Write IOPS | Up to 200,000 IOPS |
| Endurance (TBW) | 1,400 TBW |
| Drive Writes Per Day (DWPD) | 0.1 DWPD (over 5-year rating period) |
| Power Loss Protection | Yes (capacitor-based) |
| Hardware Encryption | AES 256-bit, TCG Opal 2.0 |
| Data Path Protection | End-to-end data protection |
| Operating Temperature | 0°C to 70°C |
| Power Consumption (Active Read) | Approximately 14W |
| Dimensions | 100.45 mm x 69.85 mm x 15.00 mm |
| Weight | Approximately 140 g |
| MTBF | 2,000,000 hours |
Frequently Asked Questions about Solidigm / Intel SSDPF2KX076T9N1 D5 / D7 Series 7.68TB PCIe NVMe SSD
What does the Solidigm / Intel SSDPF2KX076T9N1 D5 / D7 Series 7.68TB PCIe NVMe SSD do?
At 7.68TB, the Solidigm / Intel SSDPF2KX076T9N1 D5 / D7 Series 7.68TB PCIe NVMe SSD suits enterprise data-center storage tiers — all-flash arrays, hyperconverged storage pools (vSAN, Ceph), database backends, and high-throughput backup repositories. The NVMe interface is supported by major server platforms.
What are the headline specs of the Solidigm / Intel SSDPF2KX076T9N1 D5 / D7 Series 7.68TB PCIe NVMe SSD?
Key specifications for the Solidigm / Intel SSDPF2KX076T9N1 D5 / D7 Series 7.68TB PCIe NVMe SSD: capacity 7.68TB; form factor PCIe NVMe; interface NVMe; new condition; capacity 7.68TB; series D5 / D7 Series; interface / form factor PCIe NVMe; drive class Enterprise SSD; use case Servers, storage arrays, virtualization, and cloud infrastructure. Manufacturer part number SSDPF2KX076T9N1. For the full datasheet with electrical, environmental, and compliance details, contact our pre-sales engineering team.
Is the Solidigm / Intel SSDPF2KX076T9N1 D5 / D7 Series 7.68TB PCIe NVMe SSD compatible with my infrastructure?
The Solidigm / Intel SSDPF2KX076T9N1 D5 / D7 Series 7.68TB PCIe NVMe SSD uses a NVMe interface in a PCIe NVMe form factor. It's compatible with server platforms that expose this interface — typical deployments include Dell PowerEdge, HPE ProLiant, Lenovo ThinkSystem, and Supermicro SuperServer chassis. For specific vendor part-number compatibility, our team validates against the manufacturer support matrix.
