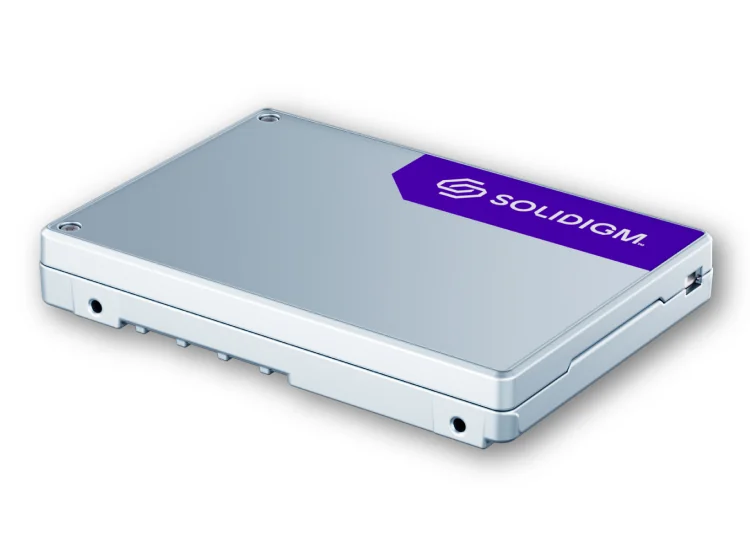

Solidigm / Intel SSDPF2KX076T11Z D7-P5520 7.68TB U.2 NVMe PCIe SSD
Brand: Solidigm | Category: Enterprise SSDs
SKU: SOL-SSDPF2KX076T11Z | Part #: SSDPF2KX076T11Z | MPN: SSDPF2KX076T11Z
Contact for Pricing — Request a Quote
About the Solidigm / Intel SSDPF2KX076T11Z D7-P5520 7.68TB U.2 NVMe PCIe SSD
The Solidigm / Intel SSDPF2KX076T11Z D7-P5520 7.68TB U.2 NVMe PCIe SSD from Solidigm is enterprise-grade Enterprise SSDs hardware built for data centers. It features 7.68TB capacity, U.2 NVMe PCIe form factor, NVMe interface. The Solidigm D7-P5520 is a high-density enterprise NVMe SSD built on 144-layer Intel QLC NAND flash, housed in a U.2 2.5-inch form factor and connected via a PCIe 4.0 x4 host interface. The 7.68TB capacity point makes it one of the highest-density single-drive options available in this form factor, enabling data centers to maximize usable storage per rack unit without sacrificing the low-latency, high-bandwidth characteristics required of modern NVMe storage. The drive target Available in brand new condition. Solidigm enterprise ssds products are trusted by enterprises and data centers worldwide. Available from Omnixon Global. Contact our sales team to request a quote.
Technical Specifications
| Brand | Solidigm |
| Category | Enterprise SSDs |
| SKU | SOL-SSDPF2KX076T11Z |
| Part Number | SSDPF2KX076T11Z |
| Condition | New |
| Capacity | 7.68TB |
| Form Factor | U.2 NVMe PCIe |
| Interface | NVMe |
| Model | D7-P5520 |
| Manufacturer Part Number | SSDPF2KX076T11Z |
| Raw Capacity | 7.68 TB |
| Form Factor | U.2 2.5-inch (15mm) |
| Interface | PCIe 4.0 x4 NVMe |
| NVMe Protocol Version | NVMe 1.4 |
| NAND Flash Type | 144-layer Intel QLC (Quad-Level Cell) 3D NAND |
| Sequential Read Throughput | Up to 7,000 MB/s |
| Sequential Write Throughput | Up to 3,800 MB/s |
| Random Read IOPS (4K) | Up to 1,500,000 IOPS |
| Random Write IOPS (4K) | Up to 130,000 IOPS |
| Endurance (DWPD) | 1 DWPD |
| Total Bytes Written (TBW) | 14,016 TBW |
| Power-Loss Imminent (PLI) | Yes — capacitor-based data protection |
| Hardware Encryption | AES 256-bit, TCG Opal 2.0 |
| End-to-End Data Protection | T10 DIF/DIX |
| Management Interface | NVMe-MI (NVMe Management Interface) |
| Multiple Namespace Support | Yes |
| Operating Temperature | 0°C to 70°C |
| Power Consumption (Active Read) | Approximately 24W |
| Connector | SFF-8639 (U.2) |
Frequently Asked Questions about Solidigm / Intel SSDPF2KX076T11Z D7-P5520 7.68TB U.2 NVMe PCIe SSD
What does the Solidigm / Intel SSDPF2KX076T11Z D7-P5520 7.68TB U.2 NVMe PCIe SSD do?
At 7.68TB, the Solidigm / Intel SSDPF2KX076T11Z D7-P5520 7.68TB U.2 NVMe PCIe SSD suits enterprise data-center storage tiers — all-flash arrays, hyperconverged storage pools (vSAN, Ceph), database backends, and high-throughput backup repositories. The NVMe interface is supported by major server platforms.
What are the headline specs of the Solidigm / Intel SSDPF2KX076T11Z D7-P5520 7.68TB U.2 NVMe PCIe SSD?
Key specifications for the Solidigm / Intel SSDPF2KX076T11Z D7-P5520 7.68TB U.2 NVMe PCIe SSD: capacity 7.68TB; form factor U.2 NVMe PCIe; interface NVMe; new condition; capacity 7.68TB; series D7-P5520; interface / form factor U.2 NVMe PCIe; drive class Enterprise SSD; use case Servers, storage arrays, virtualization, and cloud infrastructure. Manufacturer part number SSDPF2KX076T11Z. For the full datasheet with electrical, environmental, and compliance details, contact our pre-sales engineering team.
Is the Solidigm / Intel SSDPF2KX076T11Z D7-P5520 7.68TB U.2 NVMe PCIe SSD compatible with my infrastructure?
The Solidigm / Intel SSDPF2KX076T11Z D7-P5520 7.68TB U.2 NVMe PCIe SSD uses a NVMe interface in a U.2 NVMe PCIe form factor. It's compatible with server platforms that expose this interface — typical deployments include Dell PowerEdge, HPE ProLiant, Lenovo ThinkSystem, and Supermicro SuperServer chassis. For specific vendor part-number compatibility, our team validates against the manufacturer support matrix.
