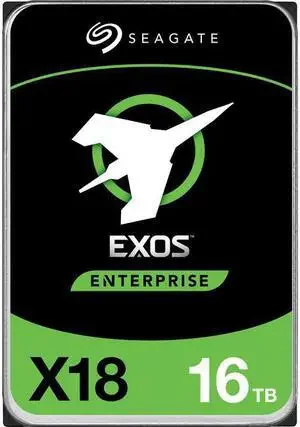

Seagate ST16000NM000J 16TB 3.5-inch SATA Enterprise HDD
Brand: Seagate | Category: Enterprise HDDs
SKU: SEA-ST16000NM000J | Part #: ST16000NM000J | MPN: ST16000NM000J
Contact for Pricing — Request a Quote
About the Seagate ST16000NM000J 16TB 3.5-inch SATA Enterprise HDD
The Seagate ST16000NM000J 16TB 3.5-inch SATA Enterprise HDD from Seagate is enterprise-grade Enterprise HDDs hardware built for data centers. It features 16TB capacity, 3.5" form factor, SATA 6Gb/s interface, 7,200 RPM speed. The Seagate ST16000NM000J is a 16TB 3.5-inch SATA III enterprise hard drive built on Seagate's proven Exos X16 platform, designed to deliver high-density capacity storage for demanding data center environments. Utilizing conventional magnetic recording (CMR) technology with helium-sealed enclosures, the drive achieves a sustained transfer rate of up to 261 MB/s while maintaining a low power profile suited for always-on enterprise deployments. The drive targets capacity-tier w Available in brand new condition. Seagate enterprise hdds products are trusted by enterprises and data centers worldwide. Available from Omnixon Global. Contact our sales team to request a quote.
Technical Specifications
| Brand | Seagate |
| Category | Enterprise HDDs |
| SKU | SEA-ST16000NM000J |
| Part Number | ST16000NM000J |
| Condition | New |
| Capacity | 16TB |
| Form Factor | 3.5" |
| Interface | SATA 6Gb/s |
| Speed | 7,200 RPM |
| Manufacturer Part Number | ST16000NM000J |
| Series | Exos X16 |
| Formatted Capacity | 16TB |
| Form Factor | 3.5-inch |
| Interface | SATA III 6Gb/s |
| Recording Technology | Conventional Magnetic Recording (CMR) |
| Sustained Transfer Rate (OD) | Up to 261 MB/s |
| Cache Buffer | 512MB |
| Spindle Speed | 7200 RPM |
| Workload Rating | 550TB/year |
| Annualized Failure Rate (AFR) | 0.35% |
| Mean Time Between Failures (MTBF) | 2,500,000 hours |
| Power Consumption (Operating, Random Read/Write) | 9.0W |
| Power Consumption (Idle A) | 5.0W |
| Rotational Vibration Compensation | Yes (RV sensors) |
| Enclosure Gas | Helium-sealed |
| Operating Temperature | 5°C to 60°C |
| Non-Operating Temperature | -40°C to 70°C |
| Shock (Operating) | 70Gs, 2ms |
| Shock (Non-Operating) | 250Gs, 1ms |
| Dimensions (H x W x D) | 26.11mm x 101.85mm x 146.99mm |
| Weight | 670g |
Frequently Asked Questions about Seagate ST16000NM000J 16TB 3.5-inch SATA Enterprise HDD
What does the Seagate ST16000NM000J 16TB 3.5-inch SATA Enterprise HDD do?
At 16TB, the Seagate ST16000NM000J 16TB 3.5-inch SATA Enterprise HDD suits enterprise data-center storage tiers — all-flash arrays, hyperconverged storage pools (vSAN, Ceph), database backends, and high-throughput backup repositories. The SATA 6Gb/s interface is supported by major server platforms.
What are the headline specs of the Seagate ST16000NM000J 16TB 3.5-inch SATA Enterprise HDD?
Key specifications for the Seagate ST16000NM000J 16TB 3.5-inch SATA Enterprise HDD: capacity 16TB; form factor 3.5-inch; interface SATA 6Gb/s; new condition; capacity 16TB; form factor 3.5-inch; interface SATA 6Gb/s; drive class Enterprise HDD; typical spindle speed 7200 RPM; use case Servers, NAS, JBOD, and storage arrays. Manufacturer part number ST16000NM000J. For the full datasheet with electrical, environmental, and compliance details, contact our pre-sales engineering team.
Is the Seagate ST16000NM000J 16TB 3.5-inch SATA Enterprise HDD compatible with my infrastructure?
The Seagate ST16000NM000J 16TB 3.5-inch SATA Enterprise HDD uses a SATA 6Gb/s interface in a 3.5-inch form factor. It's compatible with server platforms that expose this interface — typical deployments include Dell PowerEdge, HPE ProLiant, Lenovo ThinkSystem, and Supermicro SuperServer chassis. For specific vendor part-number compatibility, our team validates against the manufacturer support matrix.
