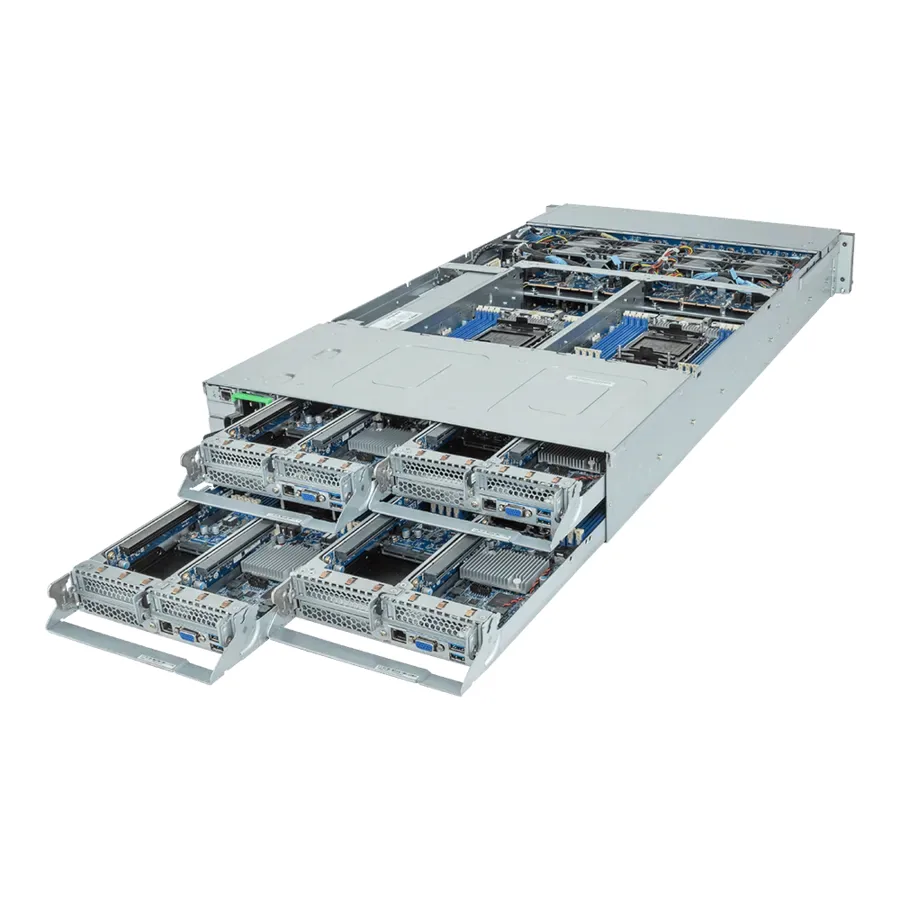

GIGABYTE H263-S62 High-Density 2U4N Server
Brand: Gigabyte | Category: Servers
SKU: GIGA-H263S62AAW1 | Part #: H263-S62-AAW1 | MPN: H263-S62-AAW1
Contact for Pricing — Request a Quote
About the GIGABYTE H263-S62 High-Density 2U4N Server
The GIGABYTE H263-S62 High-Density 2U4N Server from Gigabyte is enterprise-grade Servers hardware built for data centers. Four independent Intel Xeon 6 nodes packed into a single 2U chassis for extreme compute density in HPC and hyperscale cloud environments. Available in brand new condition. Gigabyte servers products are trusted by enterprises and data centers worldwide. Available from Omnixon Global. Contact our sales team to request a quote.
Technical Specifications
| Brand | Gigabyte |
| Category | Servers |
| SKU | GIGA-H263S62AAW1 |
| Part Number | H263-S62-AAW1 |
| Condition | New |
| Model | H263-S62 |
| Form Factor | 2U 4-Node (2U4N) Multi-Node Server |
| Processor Support | Intel Xeon 6 Processor Family (P-core and E-core variants) |
| Sockets per Node | 1x LGA4710 / LGA4711 (Intel Xeon 6) |
| Nodes per Chassis | 4 independent nodes |
| Memory Type | DDR5 RDIMM / MRDIMM |
| Memory Slots per Node | Up to 12x DIMM slots per node |
| Maximum Memory per Node | Up to 1.5TB DDR5 per node (configuration dependent) |
| PCIe Generation | PCIe 5.0 |
| Expansion per Node | PCIe 5.0 expansion slots for GPU, NIC, or accelerator add-in cards |
| Storage per Node | Support for NVMe U.2 / E1.S SSDs; SATA/SAS HDD/SSD via backplane |
| Network | Onboard 1GbE management port per node; support for high-speed 25GbE/100GbE via PCIe NIC |
| Power Supply | Redundant high-efficiency PSUs shared across chassis (80 PLUS Titanium rated) |
| Cooling | Shared hot-swap fan modules with per-node thermal zones and intelligent fan speed control |
| Node Hot-Swap | Yes — individual node hot-swap without affecting adjacent nodes |
| Systems Management | IPMI 2.0, Redfish API, GIGABYTE Server Management (GSM), per-node independent BMC |
| Operating System Support | Major Linux distributions, Windows Server, VMware ESXi, containerized environments |
| Security Features | Secure Boot, TPM 2.0 header per node, Intel Platform Firmware Resilience (Intel PFR) |
| Chassis Dimensions | 2U standard EIA-310 rack form factor |
| Target Applications | HPC, AI Inferencing, Cloud IaaS, Virtualization, Kubernetes, Container Workloads |
| Launch | 2025 Q3 |
Frequently Asked Questions about GIGABYTE H263-S62 High-Density 2U4N Server
What does the GIGABYTE H263-S62 High-Density 2U4N Server do?
The GIGABYTE H263-S62 High-Density 2U4N Server is built for enterprise data-center workloads — virtualization (VMware, Proxmox, Nutanix), private cloud, database hosting, and AI/ML training. It fits standard EIA-310 server racks and supports redundant PSUs and hot-swap drives common in production environments.
What are the headline specs of the GIGABYTE H263-S62 High-Density 2U4N Server?
Key specifications for the GIGABYTE H263-S62 High-Density 2U4N Server: new condition; manufacturer Gigabyte; model H263-S62; form factor 2U 4-Node (2U4N) Multi-Node Server; processor support Intel Xeon 6 Processor Family (P-core and E-core variants); sockets per node 1x LGA4710 / LGA4711 (Intel Xeon 6); nodes per chassis 4 independent nodes. Manufacturer part number H263-S62-AAW1. For the full datasheet with electrical, environmental, and compliance details, contact our pre-sales engineering team.
