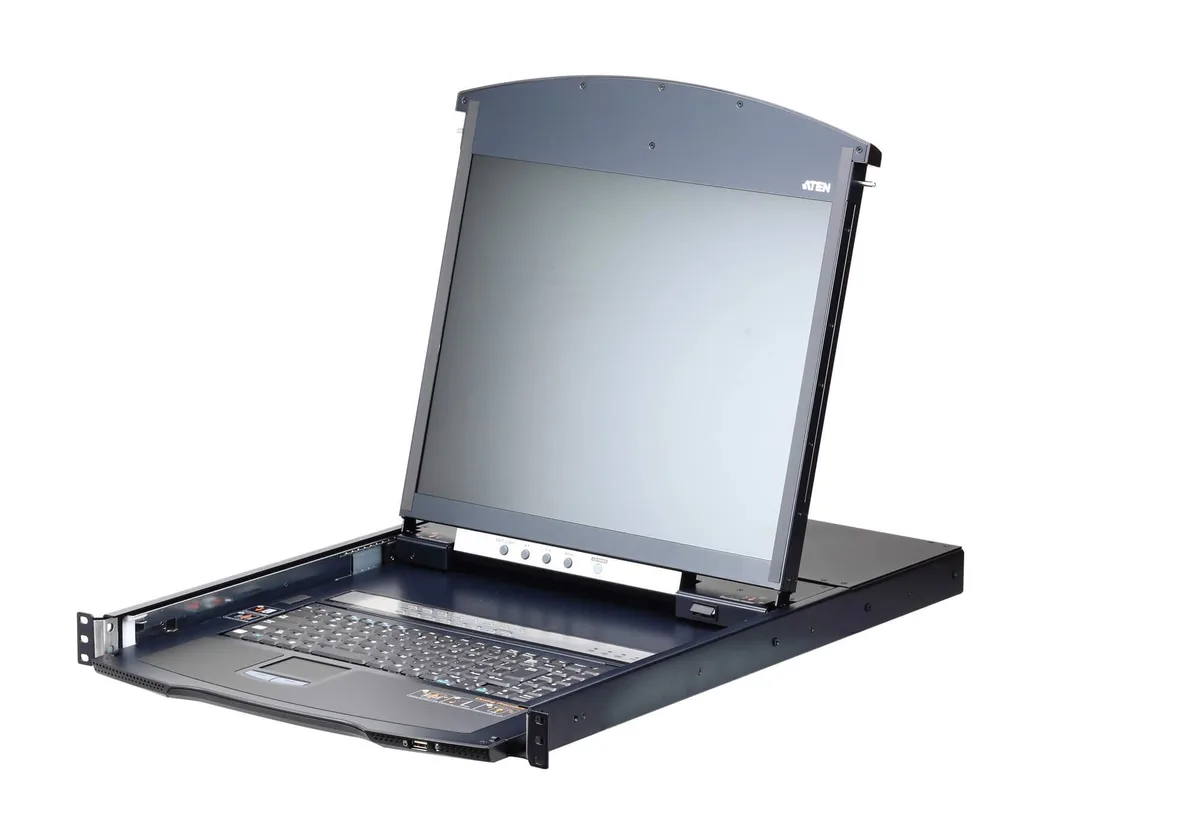

Aten KVM1116R 16-Port Rackmount LCD Console KVM Switch
Brand: Aten | Category: KVM & Console
SKU: KL1116Vn | Part #: KL1116Vn | MPN: KL1116Vn
Contact for Pricing — Request a Quote
About the Aten KVM1116R 16-Port Rackmount LCD Console KVM Switch
The Aten KVM1116R 16-Port Rackmount LCD Console KVM Switch from Aten is enterprise-grade KVM & Console hardware built for data centers. The Aten KVM1116R is a 1U rackmount integrated LCD console KVM switch designed for enterprise server environments requiring both local and remote management capabilities. The unit combines a 16-port KVM switch with an embedded 17-inch LCD display, keyboard, and touchpad in a single compact form factor, eliminating the need for separate console hardware while maintaining full local access to connected servers. Available in brand new condition. Aten kvm & console products are trusted by enterprises and data centers worldwide. Available from Omnixon Global. Contact our sales team to request a quote.
Technical Specifications
| Brand | Aten |
| Category | KVM & Console |
| SKU | KL1116Vn |
| Part Number | KL1116Vn |
| Condition | New |
| Model | KVM1116R |
| Port Count | 16 |
| Form Factor | 1U rackmount |
| Display | 17-inch integrated LCD |
| Console Interface | Integrated keyboard and touchpad |
| Video Inputs | 16× VGA (DB-15) |
| USB Ports | 2× USB Type-A (downstream) |
| Keyboard/Mouse Interface | PS/2 and USB |
| Video Resolution Support | Up to 1920×1440 |
| Video Scaling | Yes |
| Dual Console | Supported (local and remote) |
| Remote Access | IP-based |
| Switch Type | Electronic KVM |
| Rack Units | 1U |
| Operating Temperature | 0–55°C |
| Storage Temperature | -20–60°C |
| Humidity | 10–90% non-condensing |
