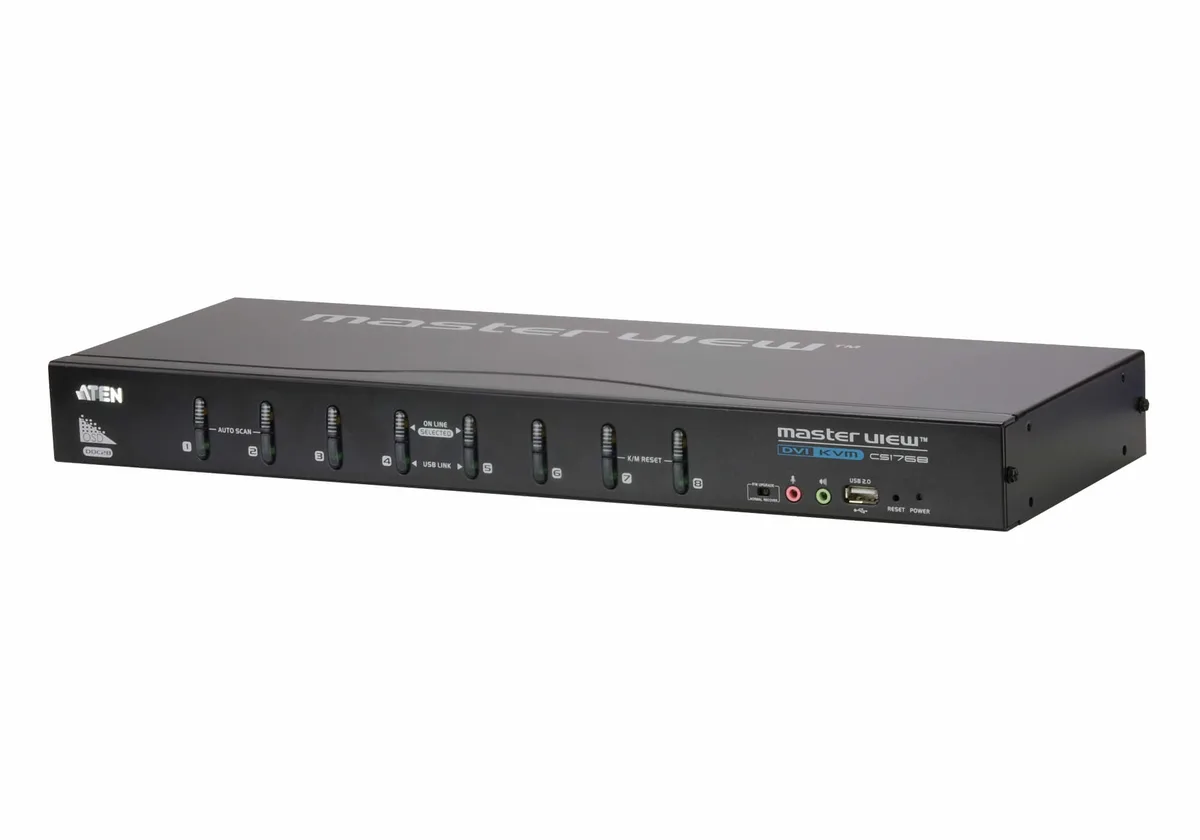

Aten CS1768 8-Port USB DVI KVM Switch with Audio
Brand: Aten | Category: KVM & Console
SKU: CS1768 | Part #: CS1768 | MPN: CS1768
Contact for Pricing — Request a Quote
About the Aten CS1768 8-Port USB DVI KVM Switch with Audio
The Aten CS1768 8-Port USB DVI KVM Switch with Audio from Aten is enterprise-grade KVM & Console hardware built for data centers. The Aten CS1768 is an 8-port USB DVI KVM switch designed for high-density server consolidation in enterprise data centers and trading environments. It enables a single operator to control up to 8 computers from one USB keyboard, mouse, and DVI monitor, reducing physical footprint and simplifying multi-system administration. Available in brand new condition. Aten kvm & console products are trusted by enterprises and data centers worldwide. Available from Omnixon Global. Contact our sales team to request a quote.
Technical Specifications
| Brand | Aten |
| Category | KVM & Console |
| SKU | CS1768 |
| Part Number | CS1768 |
| Condition | New |
| Model | CS1768 |
| PartNumber | CS1768 |
| Type | USB DVI KVM Switch |
| Ports | 8 |
| VideoInterface | DVI-D (Dual Link) |
| VideoResolution | 1920×1200 @ 60Hz |
| KeyboardMouseInterface | USB |
| AudioSupport | Yes (Speaker and Microphone) |
| SwitchingMethod | Hot-key and OSD menu |
| VideoBuffering | 2MB SDRAM per port |
| Connectors | 8× DVI-D (female), 1× USB (female), 1× 3.5mm audio in, 1× 3.5mm audio out |
| Cascading | Supported |
| PowerConsumption | 30W (typical) |
| OperatingTemperature | 0°C to 40°C |
| StorageTemperature | -20°C to 60°C |
| Dimensions | 433×155×44 mm |
| Weight | 1.7 kg |
| Enclosure | Metal chassis |
