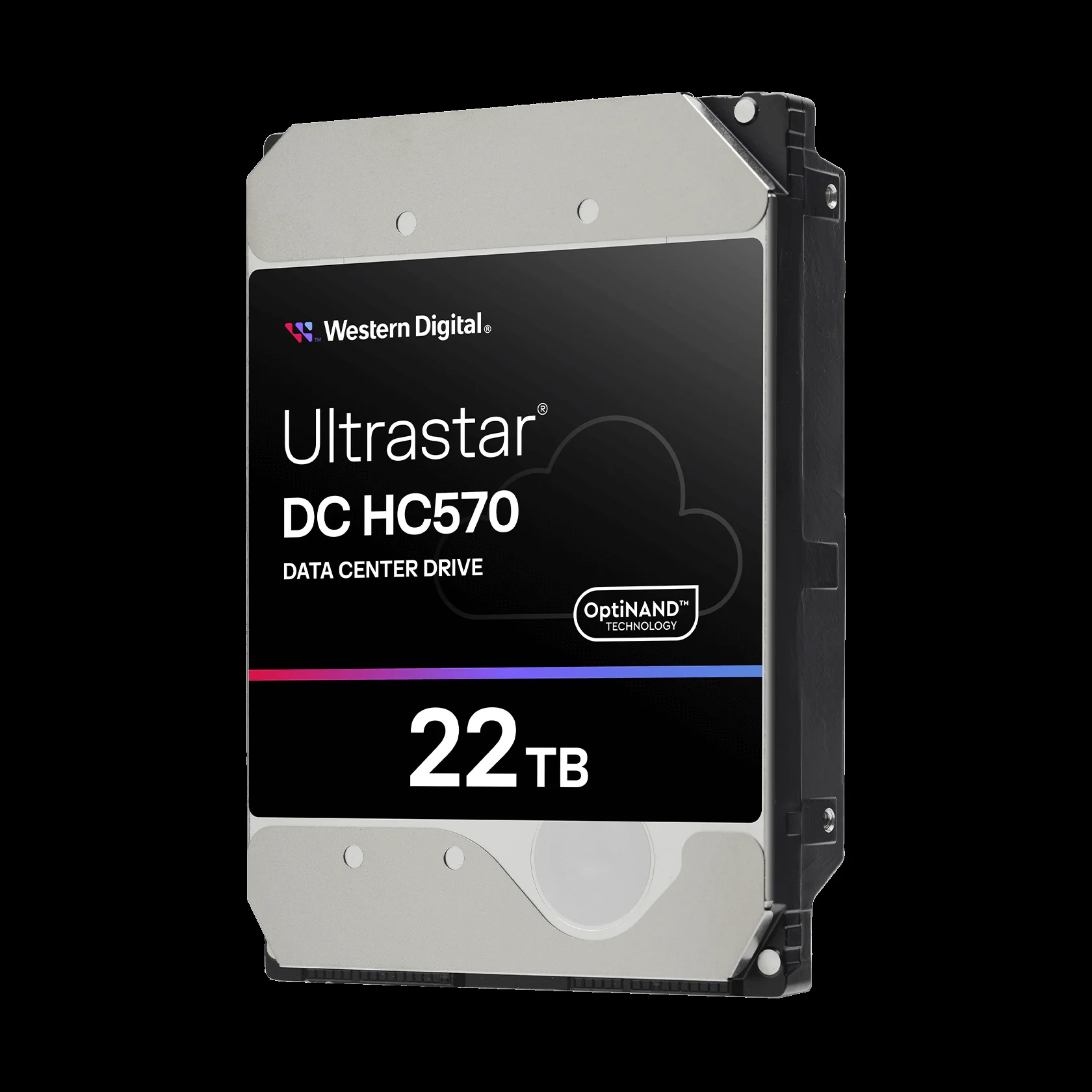

WD Ultrastar DC HC570 22TB Enterprise HDD
Brand: Western Digital | Category: Enterprise HDDs
SKU: WD-HC570-22TB | Part #: WD-HC570-22TB | MPN: WD-HC570-22TB
Contact for Pricing — Request a Quote
About the WD Ultrastar DC HC570 22TB Enterprise HDD
The WD Ultrastar DC HC570 22TB (part number WD-HC570-22TB) consumes just 5.0W at idle and 7.4W during active read/write operations—critical efficiency metrics for power-dense JBOD and data center environments where thousands of drives run simultaneously. This Western Digital enterprise-class HDD delivers 22TB formatted capacity in a standard 3.5-inch form factor, combining helium-sealed construction with CMR recording technology to maximize reliability across demanding 24/7 workloads.
Built for storage architects managing petabyte-scale infrastructure, the HC570 series balances capacity with thermal efficiency. Its 512MB cache, 7200 RPM spindle speed, and 2.5M-hour MTBF support up to 550TB annualized workload rates, while rotational vibration compensation (RVPE) minimizes performance degradation in multi-drive arrays. The SATA 6Gb/s interface integrates seamlessly into legacy and modern storage systems alike. Western Digital specifies wide temperature tolerances (0–60°C operating) and robust shock protection, ensuring reliability across diverse facility conditions. Contact Omnixon Global to request a quote for your deployment.
Typical Enterprise Deployment Scenarios
- Large-scale cold storage and archival repositories requiring low idle power consumption and high sequential throughput
- Multi-petabyte JBOD expansions in hyperscale data centers where per-drive power efficiency directly reduces operational costs
- Video surveillance and media asset management systems with sustained high workload rates and 24/7 operational cycles
- Backup and disaster recovery infrastructure demanding reliable long-term retention without frequent access patterns
- Content distribution networks and streaming platforms needing dense, power-efficient capacity at the edge
Technical Specifications
| Brand | Western Digital |
| Category | Enterprise HDDs |
| SKU | WD-HC570-22TB |
| Part Number | WD-HC570-22TB |
| Condition | New |
| Capacity | 22TB |
| Form Factor | 3.5" |
| Interface | SATA 6Gb/s |
| Speed | 7,200 RPM |
| Manufacturer Part Number | WD-HC570-22TB |
| Series | Ultrastar DC HC570 |
| Formatted Capacity | 22TB (22,000GB) |
| Interface | SATA 6Gb/s |
| Rotational Speed | 7200 RPM |
| Cache Buffer | 512MB |
| MTBF | 2,500,000 hours |
| Annualized Workload Rate | 550TB/year |
| Sector Size | 512e / 4Kn (user-selectable) |
| Form Factor | 3.5-inch |
| Recording Technology | CMR (Conventional Magnetic Recording) |
| Internal Atmosphere | Helium (HelioSeal) |
| Vibration Compensation | RVPE (Rotational Vibration Predictive Error correction) |
| Operating Temperature | 0°C to 60°C |
| Non-Operating Temperature | -40°C to 70°C |
| Operating Shock | 30G, 2ms |
| Non-Operating Shock | 250G, 2ms |
| Power: Active Read/Write (typical) | 7.4W |
| Power: Idle (typical) | 5.0W |
| Acoustics: Idle | 20dBA (typical) |
Frequently Asked Questions about WD Ultrastar DC HC570 22TB Enterprise HDD
What does the WD Ultrastar DC HC570 22TB Enterprise HDD do?
the WD Ultrastar DC HC570 22TB Enterprise HDD suits enterprise data-center storage tiers — all-flash arrays, hyperconverged storage pools (vSAN, Ceph), database backends, and high-throughput backup repositories. It is supported by major server platforms.
What are the headline specs of the WD Ultrastar DC HC570 22TB Enterprise HDD?
Key specifications for the WD Ultrastar DC HC570 22TB Enterprise HDD: new condition; capacity 22TB; interface SATA 6Gb/s; form factor 3.5 inch; rpm 7200; mtbf 2.5 million hours; workload rating 550TB/year. Manufacturer part number WD-HC570-22TB. For the full datasheet with electrical, environmental, and compliance details, contact our pre-sales engineering team.
