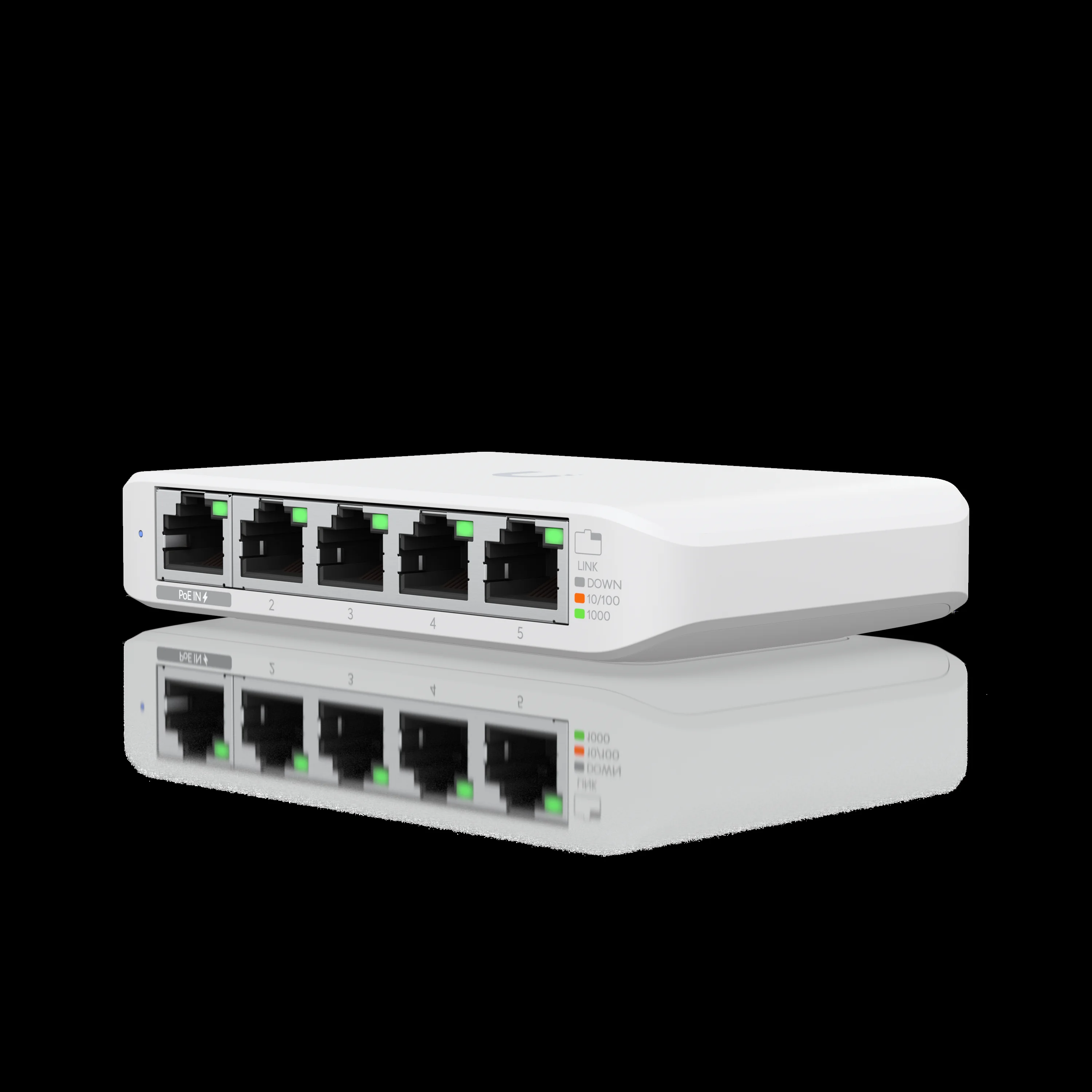

UniFi Switch Flex Mini 5-Port
Brand: Ubiquiti | Category: Network Switches
SKU: UBQ-USW-FLEX-MINI | Part #: USW-FLEX-MINI | MPN: USW-FLEX-MINI
Contact for Pricing — Request a Quote
About the UniFi Switch Flex Mini 5-Port
As a Layer 2 managed switch, the UniFi Switch Flex Mini 5-Port operates at the access layer where straightforward packet forwarding and VLAN segmentation handle most enterprise connectivity tasks. Manufactured by Ubiquiti under part number USW-FLEX-MINI, this compact switch delivers a 10 Gbps switching capacity and 7.4 Mpps forwarding rate across five RJ-45 Gigabit Ethernet ports, making it ideal for network engineers and IT procurement teams deploying distributed edge infrastructure or branch office expansions.
The device draws power exclusively via 802.3af/at PoE input on Port 1, eliminating the need for separate power outlets while consuming just 5W maximum. Ports 2–5 provide non-PoE output, supporting full-duplex Gigabit speeds (10/100/1000 Mbps) with auto MDI/MDI-X on all ports. Management integrates seamlessly with the UniFi Network application running on cloud or on-premises controllers, while native 802.1Q VLAN tagging enables logical network segmentation. At 101.6 × 61 × 19.1 mm and 91 grams, the switch fits tight mounting spaces. Operating temperature range spans 0 to 40 °C with humidity tolerance of 5 to 95% non-condensing. Ubiquiti certification includes CE, FCC, and IC compliance for global deployment.
Typical Deployment Scenarios
- Remote office access switches where PoE-powered uplinks reduce cabling complexity
- Wireless access point aggregation in small branch locations with managed VLAN trunking
- Edge IoT device connectivity requiring compact form factor and low power draw
- IP camera and telephony integration via Port 1 PoE input from upstream infrastructure
- Distributed UniFi network expansions maintaining centralized cloud or on-premises controller visibility
To request a quote for the USW-FLEX-MINI or discuss volume pricing and delivery timelines, contact Omnixon Global directly.
Technical Specifications
| Brand | Ubiquiti |
| Category | Network Switches |
| SKU | UBQ-USW-FLEX-MINI |
| Part Number | USW-FLEX-MINI |
| Condition | New |
| Interface | Ethernet / SFP / SFP+ |
| Speed | 1GbE |
| Manufacturer Part Number | USW-FLEX-MINI |
| Product Line | UniFi Switch Flex |
| Total Ports | 5 |
| Port Type | RJ-45 Gigabit Ethernet (10/100/1000 Mbps) |
| Uplink / PoE-In Port | Port 1 (802.3af/at PoE input) |
| Downstream Ports | Ports 2–5 (non-PoE output) |
| Power Input | 802.3af/at PoE (requires upstream PoE switch or injector) |
| Maximum Power Consumption | 5W |
| Switching Capacity | 10 Gbps |
| Forwarding Rate | 7.4 Mpps |
| Management | UniFi Network application (cloud or on-premises controller) |
| Layer | Layer 2 managed |
| VLAN Support | 802.1Q VLAN tagging |
| Auto MDI/MDI-X | Supported on all ports |
| Dimensions | 101.6 × 61 × 19.1 mm (4.0 × 2.4 × 0.75 in) |
| Weight | 91 g (0.2 lb) |
| Operating Temperature | 0 to 40 °C (32 to 104 °F) |
| Operating Humidity | 5 to 95% non-condensing |
| Certifications | CE, FCC, IC |
| Form Factor | Compact desktop / freestanding |
Frequently Asked Questions about UniFi Switch Flex Mini 5-Port
What does the UniFi Switch Flex Mini 5-Port do?
The UniFi Switch Flex Mini 5-Port is enterprise networking hardware for data-center, campus, and branch deployments. Common roles include core/distribution switching, server uplinks, top-of-rack fabric, and edge connectivity in mixed Cisco/Juniper/Arista environments.
What are the headline specs of the UniFi Switch Flex Mini 5-Port?
Key specifications for the UniFi Switch Flex Mini 5-Port: interface Ethernet / SFP / SFP+; 1 year support; new condition. Manufacturer part number USW-FLEX-MINI. For the full datasheet with electrical, environmental, and compliance details, contact our pre-sales engineering team.
Is the UniFi Switch Flex Mini 5-Port compatible with my infrastructure?
The UniFi Switch Flex Mini 5-Port interoperates with standard switching protocols (LACP, MLAG/VPC, 802.1Q, OSPF/BGP). For specific cross-vendor scenarios — Cisco-to-Arista MLAG peering, fabric integration with Cumulus/SONiC, or migration from legacy Catalyst — our network engineers map a compatibility plan as part of the RFQ.
