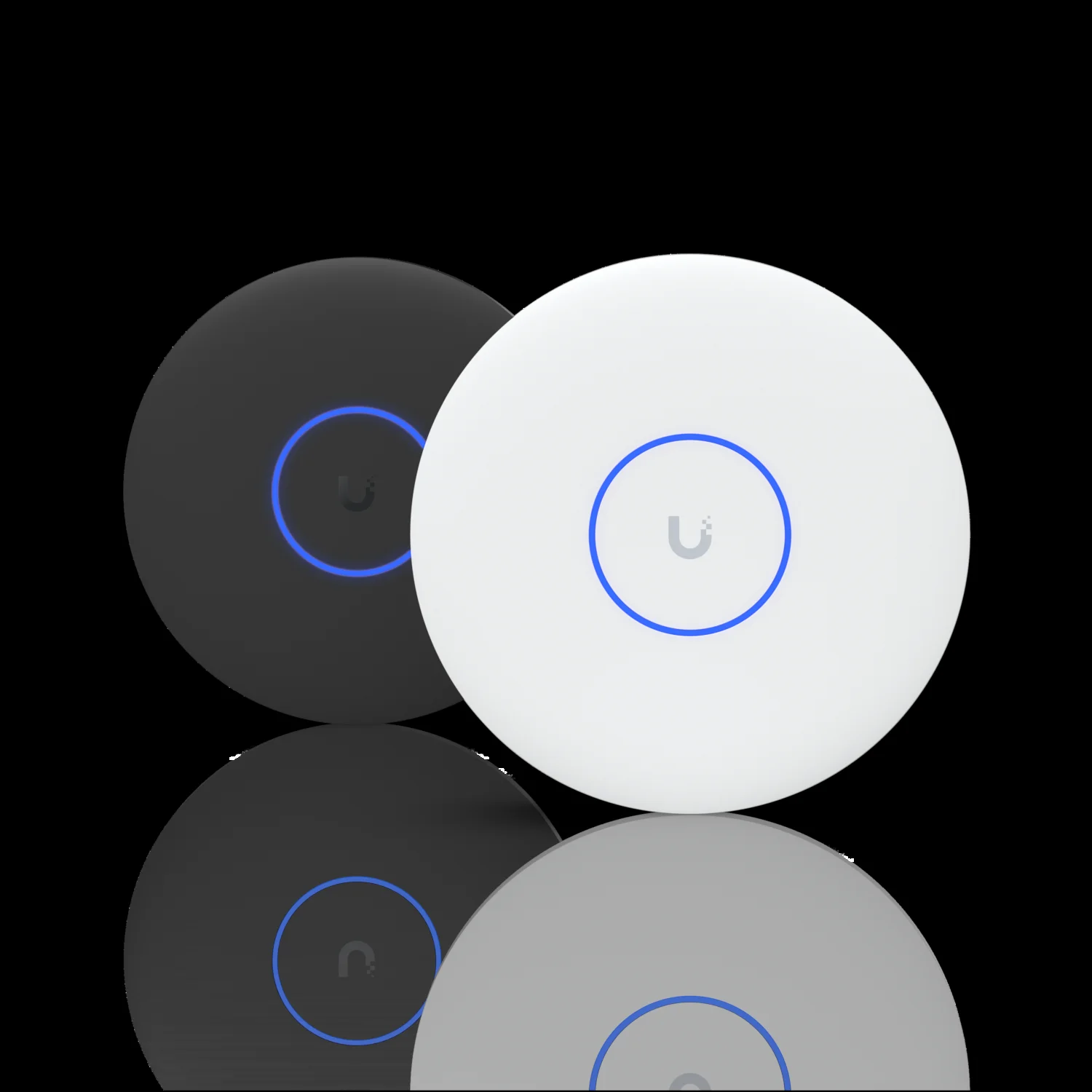

UniFi U7 Pro XGS Wi-Fi 7 Access Point
Brand: Ubiquiti | Category: Wireless Access Points
SKU: UBQ-U7-Pro-XGS | Part #: U7-Pro-XGS | MPN: U7-Pro-XGS
Contact for Pricing — Request a Quote
About the UniFi U7 Pro XGS Wi-Fi 7 Access Point
Deploy the Ubiquiti UniFi U7 Pro XGS Wi-Fi 7 Access Point in high-density office environments and enterprise campuses to deliver next-generation wireless coverage across multiple bands and client densities. Network engineers and IT procurement teams rely on this tri-band indoor ceiling-mount access point to future-proof their infrastructure with IEEE 802.11be support while maintaining backward compatibility with legacy 802.11a/b/g/n/ac/ax devices.
The U7-Pro-XGS combines exceptional throughput with enterprise-grade security and simplified management. With up to 18.0 Gbps maximum aggregate throughput across all radios, dedicated spatial streams per band—2×2 MIMO on 2.4 GHz and 4×4 MIMO on both 5 GHz and 6 GHz—and support for channel widths up to 320 MHz on the 6 GHz band, this access point handles demanding applications without bottlenecks. The 10 GbE SFP+ uplink port ensures wired backbone capacity matches wireless performance. Ubiquiti's UniFi Network Application enables centralized management through self-hosted or cloud-based administration, while WPA3, WPA2, and 802.1X RADIUS authentication provide defense-grade security controls. Powered via 802.3bt PoE++ (Type 4) or optional 48V DC adapter, the unit consumes up to 30W and operates reliably across 0° C to 40° C ambient conditions with non-condensing humidity up to 95%. Included ceiling-mount hardware simplifies installation in standard office environments.
Key Specifications
- Manufacturer: Ubiquiti
- Model & Part Number: UniFi U7 Pro XGS (U7-Pro-XGS)
- Wi-Fi Standard: IEEE 802.11be (Wi-Fi 7); backward compatible with 802.11a/b/g/n/ac/ax
- Radio Bands: Tri-band (2.4 GHz, 5 GHz, 6 GHz)
- Maximum Aggregate Throughput: Up to 18.0 Gbps
- Uplink Port: 1× 10 GbE SFP+
- Power Input: 802.3bt PoE++ (Type 4) or 48V DC adapter
- Maximum Power Consumption: Up to 30W
For pricing, specifications, and deployment guidance on the U7-Pro-XGS, contact Omnixon Global today to submit your RFQ.
Technical Specifications
| Brand | Ubiquiti |
| Category | Wireless Access Points |
| SKU | UBQ-U7-Pro-XGS |
| Part Number | U7-Pro-XGS |
| Condition | New |
| Form Factor | Indoor / Wall / Ceiling |
| Interface | Wi-Fi / Ethernet PoE |
| Model | UniFi U7 Pro XGS |
| Manufacturer Part Number | U7-Pro-XGS |
| Wi-Fi Standard | IEEE 802.11be (Wi-Fi 7), backwards compatible with 802.11a/b/g/n/ac/ax |
| Radio Bands | Tri-band: 2.4 GHz, 5 GHz, 6 GHz |
| Maximum Aggregate Throughput | Up to 18.0 Gbps (combined across all radios) |
| 2.4 GHz Max PHY Rate | Up to 688 Mbps |
| 5 GHz Max PHY Rate | Up to 5765 Mbps |
| 6 GHz Max PHY Rate | Up to 11530 Mbps |
| Spatial Streams | 2×2 MIMO (2.4 GHz), 4×4 MIMO (5 GHz), 4×4 MIMO (6 GHz) |
| Max Channel Width | 40 MHz (2.4 GHz), 160 MHz (5 GHz), 320 MHz (6 GHz) |
| Uplink Port | 1× 10 GbE SFP+ |
| Power Input | 802.3bt PoE++ (Type 4) or 48V DC power adapter (sold separately) |
| Maximum Power Consumption | Up to 30W |
| Mounting | Ceiling mount (mounting hardware included) |
| Form Factor | Indoor ceiling tile / surface mount |
| Management | UniFi Network Application (self-hosted or cloud via UniFi Site Manager) |
| Security Standards | WPA3, WPA2, 802.1X (RADIUS) |
| Operating Temperature | 0° C to 40° C (32° F to 104° F) |
| Operating Humidity | 5% to 95% non-condensing |
Frequently Asked Questions about UniFi U7 Pro XGS Wi-Fi 7 Access Point
What does the UniFi U7 Pro XGS Wi-Fi 7 Access Point do?
The UniFi U7 Pro XGS Wi-Fi 7 Access Point is enterprise networking hardware for data-center, campus, and branch deployments. Common roles include core/distribution switching, server uplinks, top-of-rack fabric, and edge connectivity in mixed Cisco/Juniper/Arista environments.
What are the headline specs of the UniFi U7 Pro XGS Wi-Fi 7 Access Point?
Key specifications for the UniFi U7 Pro XGS Wi-Fi 7 Access Point: form factor Indoor / Wall / Ceiling; interface Wi-Fi / Ethernet PoE; 1 year support; new condition. Manufacturer part number U7-Pro-XGS. For the full datasheet with electrical, environmental, and compliance details, contact our pre-sales engineering team.
Is the UniFi U7 Pro XGS Wi-Fi 7 Access Point compatible with my infrastructure?
The UniFi U7 Pro XGS Wi-Fi 7 Access Point interoperates with standard switching protocols (LACP, MLAG/VPC, 802.1Q, OSPF/BGP). For specific cross-vendor scenarios — Cisco-to-Arista MLAG peering, fabric integration with Cumulus/SONiC, or migration from legacy Catalyst — our network engineers map a compatibility plan as part of the RFQ.
