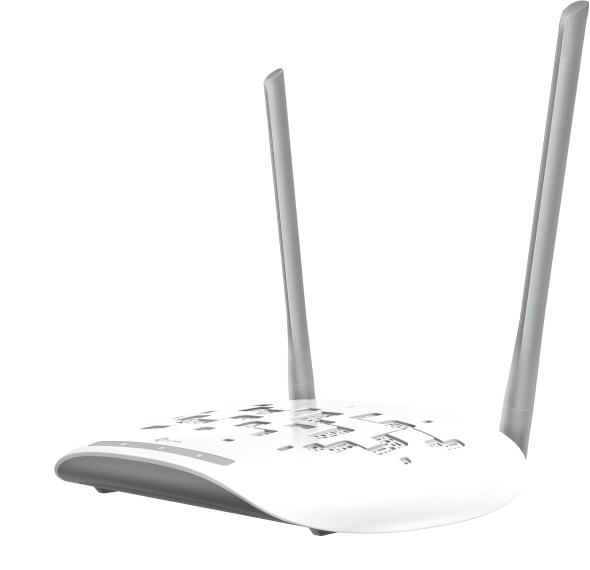

TP-Link Wireless Access Point, 300MBPS, Passive 10/100 PoE (1)

TP-Link Wireless Access Point, 300MBPS, Passive 10/100 PoE (1)

Brand: TP-Link | Category: Wireless Access Points

SKU: TL-WA801N | Part #: TL-WA801N | MPN: TL-WA801N

Contact for Pricing — Request a Quote

Request a Quote Contact Us

About the TP-Link Wireless Access Point, 300MBPS, Passive 10/100 PoE (1)

What This Product Does

The TP-LINK Wireless N Access Point TL-WA801N is designed to establish or expand a scalable high-speed wireless N network or to connect multiple Ethernet-enabled devices such as game consoles, digital media adapters, printers, or network-attached storage devices to a wireless network. The AP supports a host of different functions that makes your wireless networking experience more flexible than ever before. Now, you can enjoy a better Internet experience when downloading, gaming, video streaming or any other applications that you may wish to use.

Wireless N - Speed & Range

Adopting IEEE 802.11n advanced MIMO (Multi Input Multi Output) technology, it simultaneously works through two antennas to Tx and Rx to overcome the interference and signal degradation when traveling long distances or through physical barriers in a small office or a large apartment, resulting in an incredible improvement in the wireless performance, even in a steel-and-concrete building. Above all, you could easily pick up the wireless network during long-distance connection where legacy 11g products may not!

Multiple Operating Modes

  • Easy to Build WLAN

Supports multiple operation modes (Access Point, Multi-SSID, Client, Range Extender) to enable various wireless applications to give users a more dynamic and comprehensive experience when using their APs. Multiple operating modes also help you easily build wireless network for hard-to-wire locations or eliminating wireless dead zone.

Passive PoE Supported

  • More Flexible Deployment

The TL-WA801N is able to be powered using an Ethernet cable to simultaneously send data and electricity to wherever your AP may be located even up to 100 feet away. This feature multiplies your options allowing you to place the AP in a position that is most convenient to get the best signal possible, such as on the wall or on the ceiling of your office.

Technical Specifications

BrandTP-Link
CategoryWireless Access Points
SKUTL-WA801N
Part NumberTL-WA801N
ConditionNew
Ethernet LAN (RJ-45) ports1
Antennas quantity2
Antenna direction typeOmni-directional
Antenna typeExternal
Transmitting power (FCC)20 dBm
Wireless isolationYes
Wi-Fi Multimedia (WMM)/(WME)Yes
Networking standardsIEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates10,100 Mbit/s
Maximum data transfer rate (2.4 GHz)300 Mbit/s
Maximum data transfer rate300 Mbit/s
5 GHzNo
6 GHzNo
2.4 GHzYes
Management protocolsSNMP
Auto Wireless Distribution System (WDS)Yes
Service Set Identifier (SSID) featuresMultiple SSIDs
MAC address filteringYes
Security algorithmsWPA, WPA-PSK, WPA2, WPA2-PSK
Output current0.6 A
Output voltage9 V
Power over Ethernet (PoE)Yes
WPS push buttonYes
Reset buttonYes
On/off switchYes
Product colourWhite
PlacementFloor, Table
Storage relative humidity (H-H)5 - 90%
Storage temperature (T-T)-40 - 70 °C
Operating temperature (T-T)0 - 40 °C
Operating relative humidity (H-H)10 - 90%
Maximum operating distance30 m
Height36.2 mm
Depth129.5 mm
Width181.6 mm
Compliance certificatesFederal Communications Commission (FCC), RoHS
Quick start guideYes
Cables includedLAN (RJ-45)
PoE adapter includedYes
AC adapter includedYes
