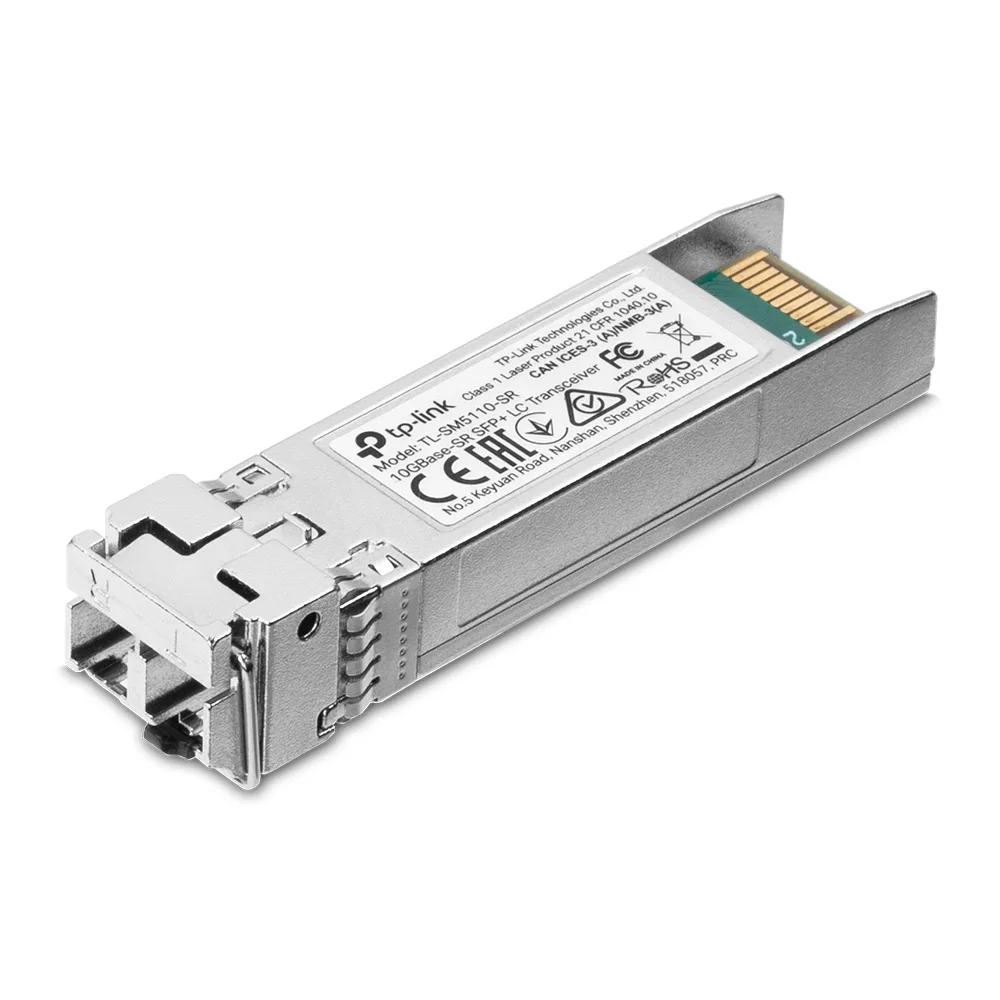

TP-Link TL-SM5110-SR 10GBASE-SR SFP+ Multi-Mode Transceiver

The TP-Link TL-SM5110-SR is a 10GBASE-SR SFP+ transceiver module designed for short-reach, high-speed optical connectivity in enterprise and data center environments. Built to the IEEE 802.3ae 10GBASE-SR standard, the module operates over OM3 and OM4 multi-mode fiber at an 850 nm wavelength, delivering 10 Gbps full-duplex throughput through a duplex LC connector interface. The hot-pluggable SFP+ form factor ensures compatibility with the broad ecosystem of SFP+-capable switches, routers, and network interface cards that adhere to the SFF-8431 and SFF-8432 MSA specifications.

The TL-SM5110-SR is engineered for structured cabling deployments where OM3 or OM4 fiber is already in place, offering a reach of up to 300 m on OM3 and up to 400 m on OM4 fiber — distances well suited to within-building backbone links, top-of-rack to end-of-row switch interconnects, and inter-floor campus runs. The module incorporates Digital Diagnostic Monitoring (DDM), also known as Digital Optical Monitoring (DOM), enabling real-time reporting of transceiver operating parameters such as temperature, supply voltage, transmit bias current, transmit optical power, and receive optical power directly through the host system's management interface.

Designed for operational reliability in production network infrastructure, the TL-SM5110-SR supports a standard operating temperature range and is compliant with RoHS environmental directives. Its compatibility with TP-Link's own SFP+ aggregation switches — including models in the TL-SX series — makes it a natural pairing for organizations scaling 10G access and aggregation layers, while broad MSA compliance extends interoperability to third-party platforms where the host switch permits third-party optics.

Ideal for

• Top-of-rack to end-of-row 10G switch interconnects over existing OM3/OM4 multi-mode fiber plant in enterprise data centers
• 10G uplink aggregation from access-layer switches to core or distribution switches within campus buildings using structured multi-mode cabling
• Server-to-switch 10G NIC connectivity for high-throughput workloads such as virtualization hosts, storage area network gateways, and database servers
• Inter-floor backbone links in multi-story office or campus facilities where runs remain within the 300 m OM3 or 400 m OM4 reach envelope
• Expanding 10G port density on SFP+-capable aggregation switches during infrastructure refresh cycles aligned with new switch deployments
• Network monitoring and diagnostics environments where DDM/DOM telemetry is required for proactive optical link health management

Technical specifications

Available from Omnixon Global. Submit an RFQ and our team will confirm configuration and availability for your order.
