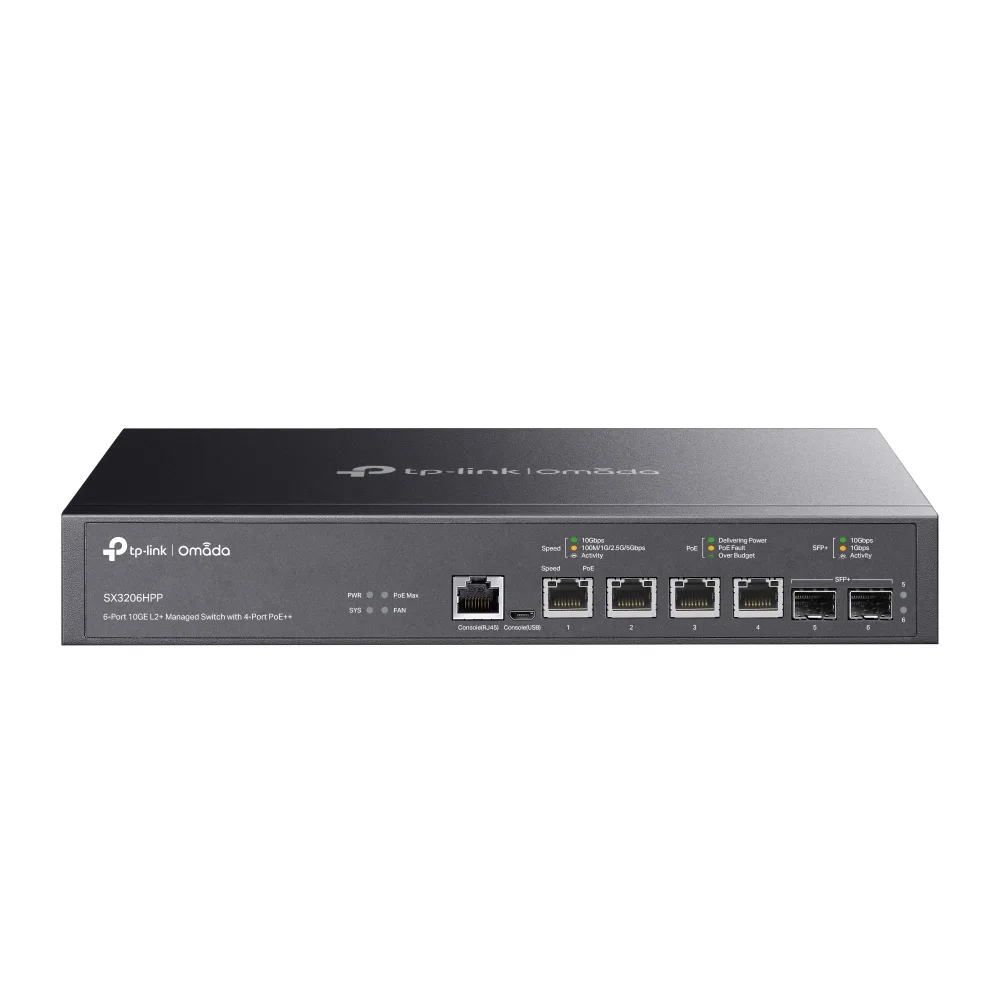

TP-Link Omada SX3206HPP 10G L2+ Managed PoE++ Switch

The TP-Link Omada SX3206HPP is a compact 10GbE L2+ managed PoE++ switch engineered for small-to-medium enterprise edge environments where high-bandwidth connectivity and substantial power delivery must coexist in a space-constrained form factor. Built around a non-blocking switching fabric, it provides six 10GBase-T PoE++ ports alongside dedicated 10G SFP+ uplinks, ensuring that Wi-Fi 7 tri-band access points, PTZ cameras, and other IEEE 802.3bt Type 4 devices receive both full line-rate data throughput and up to 90 W per port simultaneously. The switch integrates natively with the Omada SDN platform, enabling zero-touch provisioning, centralized policy management, and unified visibility across the entire network through either the cloud-based Omada controller or an on-premises hardware/software controller.

From an L2+ feature perspective, the SX3206HPP supports comprehensive VLAN segmentation (802.1Q), RSTP/MSTP loop protection, IGMP snooping for multicast optimization, Link Aggregation Control Protocol (LACP) for uplink redundancy, and Quality of Service with 8 queues per port using SP, WRR, and SP+WRR scheduling. Advanced security capabilities include 802.1X port-based authentication, MAC-based access control, IP-MAC-Port-VLAN binding, ARP Inspection, and IP Source Guard, providing a robust defense-in-depth posture suitable for regulated enterprise segments. IPv6 management and dual IPv4/IPv6 stack support future-proof the device for evolving network architectures.

Launched in 2025 Q3, the SX3206HPP targets deployments where the density of 10G-capable Wi-Fi 7 access points, IP surveillance endpoints, or video conferencing units demands both high per-port power and wire-speed throughput without resorting to a larger chassis-class switch. Its fanless or low-noise thermal design keeps acoustic profiles acceptable in open-office or classroom installations, and its desktop or wall-mount form factor reduces rack-space overhead, making it a purpose-built aggregation or access layer solution for boutique hospitality venues, enterprise branch offices, education campuses, and smart building infrastructure.

Ideal for

• Powering and aggregating multiple Wi-Fi 7 tri-band access points (up to 90 W each) in high-density wireless deployments across enterprise branch offices or campus buildings
• Supporting PTZ IP cameras and video analytics appliances requiring IEEE 802.3bt Type 4 power over a single Cat6A run in smart-building or physical security installations
• Serving as a 10GbE access-layer switch in small data center edge or server-room environments where PoE++ is needed for out-of-band management devices
• Providing centrally managed 10G connectivity in boutique hospitality properties where back-of-house AV systems, digital signage, and guest Wi-Fi 7 APs share a single managed switching tier
• Aggregating 10G uplinks from downstream gigabit switches while simultaneously delivering PoE++ to room-control panels and unified communications endpoints in conference center deployments
• Enabling zero-touch Omada SDN provisioning in multi-site education networks where IT staff require consistent policy enforcement and remote monitoring without on-site intervention

Technical specifications

Available from Omnixon Global. Submit an RFQ and our team will confirm configuration and availability for your order.
