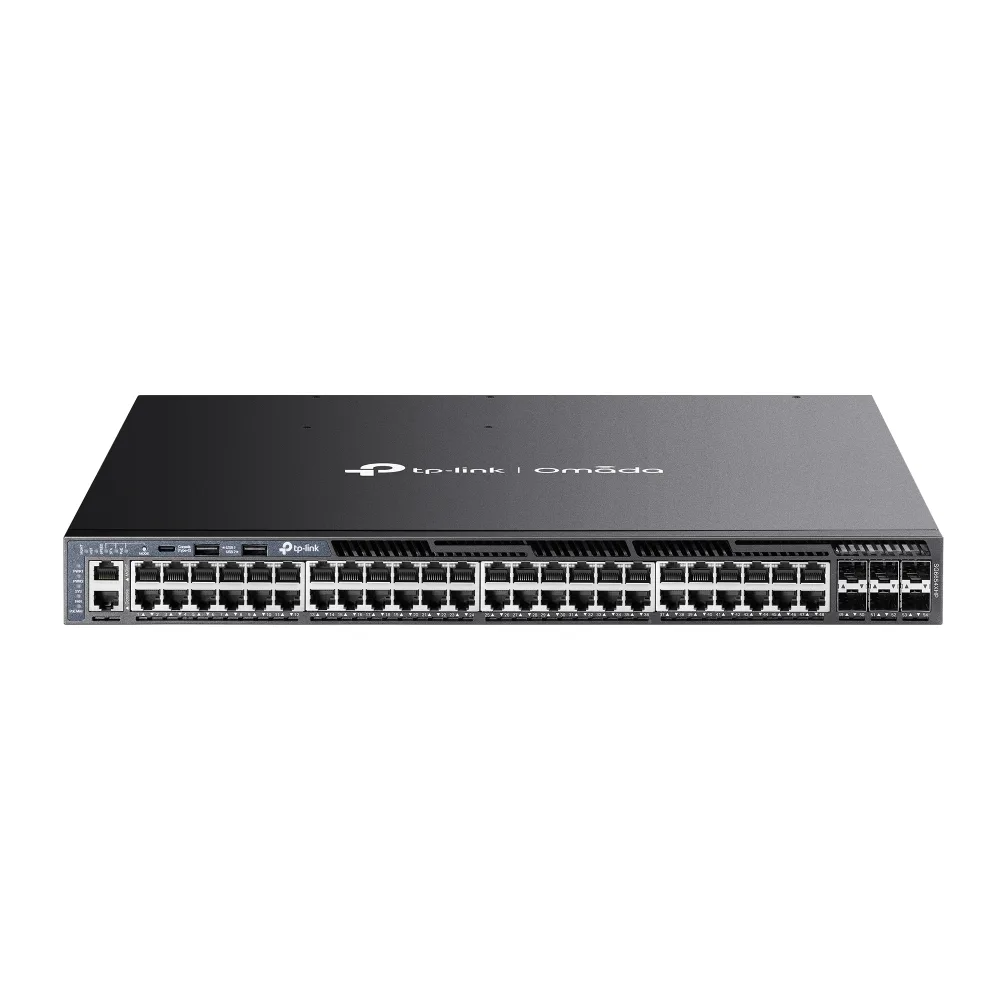

TP-Link Omada SG6654XHP 48-Port Gigabit L3 Managed PoE++ Switch with 6x 10G SFP+

The TP-Link Omada SG6654XHP is a 48-port Layer 3 managed PoE++ access switch engineered for high-density enterprise edge deployments. Built around a non-blocking switching fabric, it delivers full wire-speed forwarding across all 48 RJ45 Gigabit PoE++ ports alongside 6 x 10G SFP+ uplink ports, providing both the port density and uplink bandwidth required for large-scale wireless and IP-surveillance infrastructure. With an 802.3bt PoE++ standard supporting up to 90 W per port and a total PoE budget of 1440 W, the switch can simultaneously power the latest generation of Wi-Fi 7 access points, PTZ cameras, and other high-draw endpoints without external injectors or midspans.

At Layer 3, the SG6654XHP supports static routing alongside dynamic routing protocols, enabling inter-VLAN routing and segmented network topologies directly at the access layer, reducing dependence on a collapsed-core architecture for smaller campus and branch deployments. The switch integrates natively with the TP-Link Omada SDN platform, allowing centralised management through the Omada Hardware Controller, Software Controller, or Omada Cloud—providing unified configuration, real-time monitoring, and zero-touch provisioning across distributed sites from a single management plane.

Designed for demanding 24/7 enterprise environments, the SG6654XHP supports advanced QoS with 802.1p and DSCP marking to prioritise latency-sensitive traffic such as voice and video. Comprehensive security features include 802.1X port authentication, IP-MAC-Port Binding, ACLs, Dynamic ARP Inspection, and IP Source Guard. Resilience mechanisms including Spanning Tree Protocol (STP/RSTP/MSTP) and Link Aggregation (LACP) ensure high availability, making the switch well suited for education campuses, enterprise office floors, hospitality venues, and healthcare facilities that require always-on, high-power access-layer connectivity.

Ideal for

• Powering high-density Wi-Fi 7 access point deployments across enterprise office floors, education campuses, or hospitality venues where each AP may draw up to 90 W via 802.3bt
• IP surveillance aggregation switch connecting up to 48 PoE++-capable PTZ cameras and video encoders with sufficient power budget to eliminate external injectors
• Access-layer aggregation in campus networks requiring inter-VLAN routing at the edge via Layer 3 static and dynamic routing, reducing core-switch dependency
• Healthcare facility network edge supporting PoE-powered nurse-call systems, wireless VoIP handsets, and patient-room APs from a single high-power switch
• Centralised Omada SDN-managed branch or multi-site deployments leveraging cloud-based zero-touch provisioning and unified policy management
• High-availability wiring-closet switch in enterprise buildings utilising LACP link aggregation to dual 10G SFP+ uplinks for resilient, high-throughput backbone connectivity

Technical specifications

Available from Omnixon Global. Submit an RFQ and our team will confirm configuration and availability for your order.
