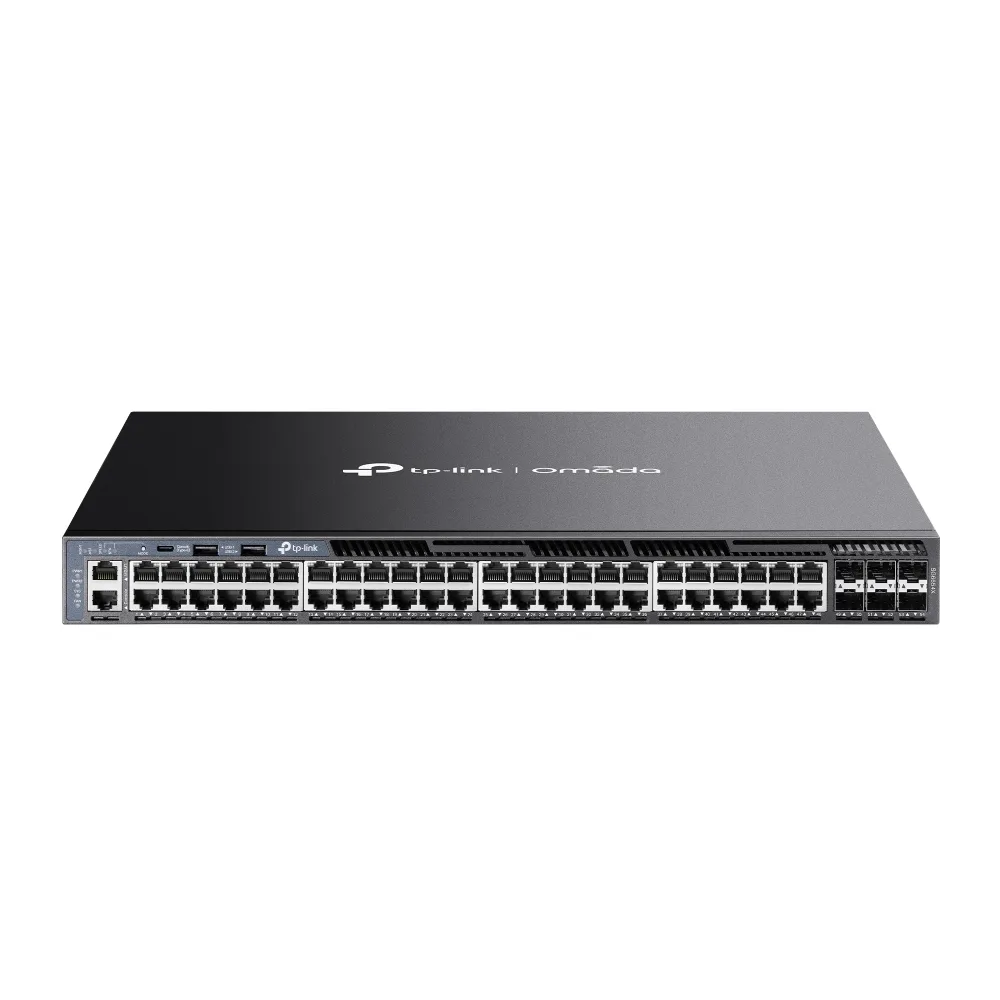

TP-Link Omada SG6654X 48-Port L3 Managed Switch with 10G SFP+
Brand: TP-Link | Category: Network Switches
SKU: TPLI-SG6654X | Part #: SG6654X | MPN: SG6654X
Contact for Pricing — Request a Quote
About the TP-Link Omada SG6654X 48-Port L3 Managed Switch with 10G SFP+
The TP-Link Omada SG6654X is a high-performance Layer 3 managed aggregation switch engineered for enterprise campus networks, data center edge environments, and high-density access aggregation tiers. Featuring 48 x 10/100/1000 Mbps RJ45 ports alongside 6 x 10G SFP+ uplink slots, the switch delivers a non-blocking switching fabric that sustains full line-rate throughput across all ports simultaneously. Its dedicated stacking capability allows multiple SG6654X units to be combined into a single logical switch, simplifying management, expanding port density linearly, and providing resilient ring or chain topologies without adding administrative complexity.
At the Layer 3 level, the SG6654X supports a comprehensive routing feature set including static routing, RIP, OSPF, and BGP, enabling it to function as a distribution or even core layer device in medium-to-large enterprise deployments. Advanced QoS mechanisms, VLAN segmentation, IGMP snooping, and robust ACL policies ensure traffic prioritization and security segmentation for latency-sensitive workloads such as VoIP, video surveillance aggregation, and unified communications. The switch supports IPv4 and IPv6 dual-stack operation, preparing networks for long-term addressing scalability.
Native integration with the TP-Link Omada Software Defined Networking platform allows centralized zero-touch provisioning, real-time topology visualization, event-driven alerting, and role-based access control through either the Omada cloud portal or an on-premises hardware/software controller. This unified management plane eliminates per-device CLI administration for routine operations, reducing mean time to configure and accelerating campus-wide policy rollouts. The SG6654X launched in Q4 2025 and represents the flagship of the Omada enterprise switching portfolio, targeting IT teams that demand carrier-grade Layer 3 intelligence with cloud-era operational simplicity.
Ideal for
- Enterprise campus distribution layer aggregating multiple 1G access switches with high-bandwidth 10G uplinks to the core
- High-density IP video surveillance backbones aggregating dozens of camera-connected access switches with IGMP snooping for multicast stream optimization
- University or hospital network core providing inter-VLAN routing, OSPF dynamic routing, and policy-based segmentation across departments
- Multi-tenant office building distribution switch stacking multiple units to deliver a single logical high-port-count aggregation point per floor or zone
- Retail chain or hospitality network hub managing guest, POS, and corporate VLANs with centralized Omada cloud controller oversight across remote sites
- SME data center top-of-rack or end-of-row aggregation connecting server racks to core with 10G uplinks and full L3 routing capabilities
Technical specifications
| Manufacturer | TP-Link |
| Product Line | Omada Business Networking |
| Model | SG6654X |
| Form Factor | 1U Rack-Mount |
| Total Ports | 54 |
| 1G RJ45 Ports | 48 x 10/100/1000 Mbps |
| 10G SFP+ Uplink Ports | 6 x 10G SFP+ |
| Stacking Support | Hardware stacking via dedicated SFP+ ports; up to 8 units per stack |
| Switching Capacity | 216 Gbps |
| Forwarding Rate | 160.7 Mpps |
| MAC Address Table | 32,000 entries |
| Jumbo Frame Support | Up to 9,216 bytes |
| Layer 3 Routing Protocols | Static Routing, RIPv1/v2, RIPng, OSPFv2/v3, BGP |
| IPv6 Support | IPv4/IPv6 dual-stack, MLD Snooping, IPv6 ACL |
| VLAN Support | IEEE 802.1Q, up to 4,094 VLANs; Voice VLAN, Private VLAN, GVRP |
| QoS | 802.1p CoS, DSCP remarking, 8 queues per port, SP/WRR/SP+WRR scheduling |
| Redundancy Protocols | STP/RSTP/MSTP (IEEE 802.1D/w/s), ERPS (G.8032), LACP (802.3ad) |
| Security Features | Port security, 802.1X authentication (RADIUS/TACACS+), Dynamic ARP Inspection, IP Source Guard, Storm Control, ACL (L2/L3/L4) |
| Management | Omada Cloud Controller, Omada Hardware Controller (OC300/OC200), CLI (Console/SSH/Telnet), Web GUI (HTTPS), SNMP v1/v2c/v3, RMON |
| Power Supply | Dual redundant PSU (hot-swappable), 100–240V AC, 50/60Hz |
| Power Consumption (Max) | ≤ 75W (without PoE) |
| Dimensions | 440 × 310 × 44 mm (17.3 × 12.2 × 1.73 in) |
| Operating Temperature | 0°C to 45°C (32°F to 113°F) |
| Certifications | FCC, CE, RoHS |
Available from Omnixon Global. Submit an RFQ and our team will confirm configuration and availability for your order.
Technical Specifications
| Brand | TP-Link |
| Category | Network Switches |
| SKU | TPLI-SG6654X |
| Part Number | SG6654X |
| Condition | New |
| Product Line | Omada Business Networking |
| Model | SG6654X |
| Form Factor | 1U Rack-Mount |
| Total Ports | 54 |
| 1G RJ45 Ports | 48 x 10/100/1000 Mbps |
| 10G SFP+ Uplink Ports | 6 x 10G SFP+ |
| Stacking Support | Hardware stacking via dedicated SFP+ ports; up to 8 units per stack |
| Switching Capacity | 216 Gbps |
| Forwarding Rate | 160.7 Mpps |
| MAC Address Table | 32,000 entries |
| Jumbo Frame Support | Up to 9,216 bytes |
| Layer 3 Routing Protocols | Static Routing, RIPv1/v2, RIPng, OSPFv2/v3, BGP |
| IPv6 Support | IPv4/IPv6 dual-stack, MLD Snooping, IPv6 ACL |
| VLAN Support | IEEE 802.1Q, up to 4,094 VLANs; Voice VLAN, Private VLAN, GVRP |
| QoS | 802.1p CoS, DSCP remarking, 8 queues per port, SP/WRR/SP+WRR scheduling |
| Redundancy Protocols | STP/RSTP/MSTP (IEEE 802.1D/w/s), ERPS (G.8032), LACP (802.3ad) |
| Security Features | Port security, 802.1X authentication (RADIUS/TACACS+), Dynamic ARP Inspection, IP Source Guard, Storm Control, ACL (L2/L3/L4) |
| Management | Omada Cloud Controller, Omada Hardware Controller (OC300/OC200), CLI (Console/SSH/Telnet), Web GUI (HTTPS), SNMP v1/v2c/v3, RMON |
| Power Supply | Dual redundant PSU (hot-swappable), 100–240V AC, 50/60Hz |
| Power Consumption (Max) | ≤ 75W (without PoE) |
| Dimensions | 440 × 310 × 44 mm (17.3 × 12.2 × 1.73 in) |
| Operating Temperature | 0°C to 45°C (32°F to 113°F) |
| Certifications | FCC, CE, RoHS |
Frequently Asked Questions about TP-Link Omada SG6654X 48-Port L3 Managed Switch with 10G SFP+
What does the TP-Link Omada SG6654X 48-Port L3 Managed Switch with 10G SFP+ do?
The TP-Link Omada SG6654X 48-Port L3 Managed Switch with 10G SFP+ is enterprise networking hardware for data-center, campus, and branch deployments. Common roles include core/distribution switching, server uplinks, top-of-rack fabric, and edge connectivity in mixed Cisco/Juniper/Arista environments.
What are the headline specs of the TP-Link Omada SG6654X 48-Port L3 Managed Switch with 10G SFP+?
Key specifications for the TP-Link Omada SG6654X 48-Port L3 Managed Switch with 10G SFP+: new condition; manufacturer TP-Link; product line Omada Business Networking; model SG6654X; form factor 1U Rack-Mount; total ports 54; 1g rj45 ports 48 x 10/100/1000 Mbps. Manufacturer part number SG6654X. For the full datasheet with electrical, environmental, and compliance details, contact our pre-sales engineering team.
Is the TP-Link Omada SG6654X 48-Port L3 Managed Switch with 10G SFP+ compatible with my infrastructure?
The TP-Link Omada SG6654X 48-Port L3 Managed Switch with 10G SFP+ interoperates with standard switching protocols (LACP, MLAG/VPC, 802.1Q, OSPF/BGP). For specific cross-vendor scenarios — Cisco-to-Arista MLAG peering, fabric integration with Cumulus/SONiC, or migration from legacy Catalyst — our network engineers map a compatibility plan as part of the RFQ.
