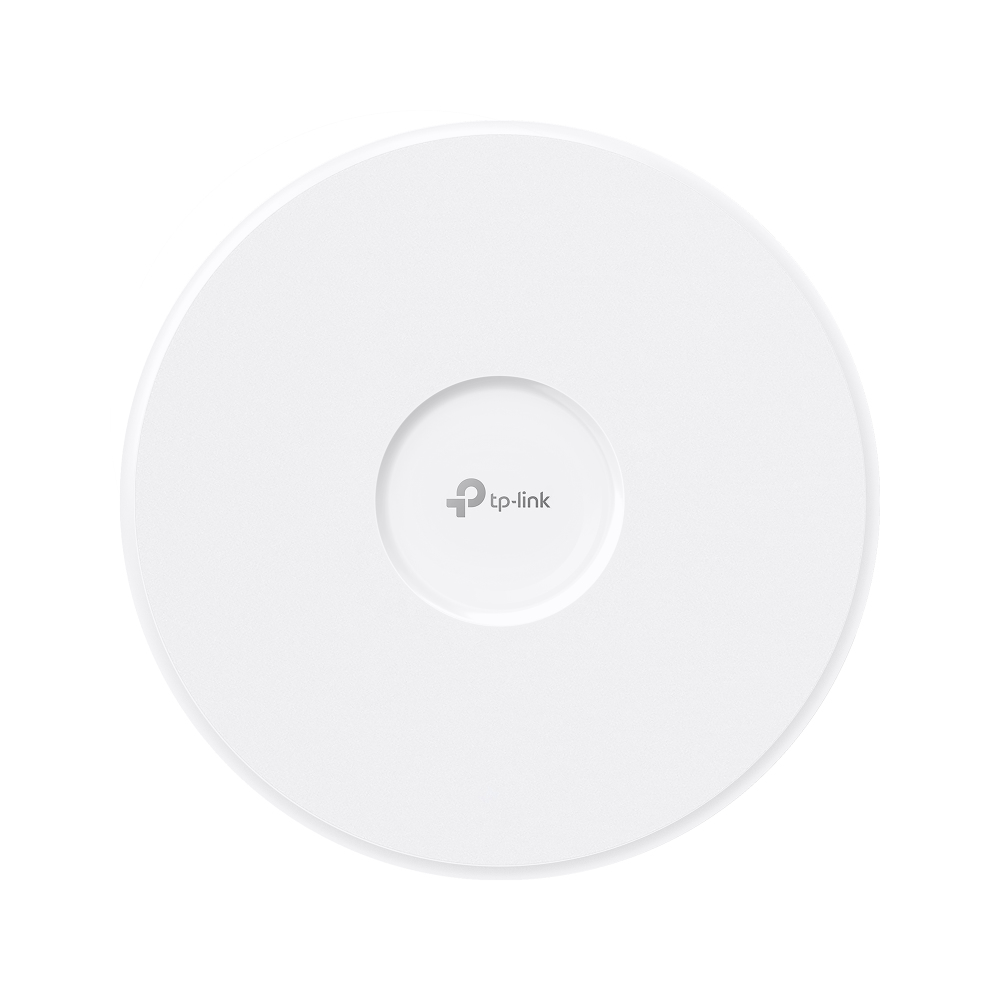

TP-Link Omada EAP773 BE9300 Wi-Fi 7 Tri-Band Access Point
Brand: TP-Link | Category: Wireless Access Points
SKU: TPLI-EAP773 | Part #: EAP773 | MPN: EAP773
Contact for Pricing — Request a Quote
About the TP-Link Omada EAP773 BE9300 Wi-Fi 7 Tri-Band Access Point
The TP-Link Omada EAP773 is a tri-band Wi-Fi 7 (802.11be) access point supporting 2.4 GHz, 5 GHz, and 6 GHz simultaneously, delivering an aggregate throughput of up to 9301 Mbps. It implements IEEE 802.11be features including Multi-Link Operation (MLO), 4096-QAM modulation, and 320 MHz channel width support on the 6 GHz band, enabling dramatically higher per-client peak rates and lower latency compared to Wi-Fi 6E predecessors. The 6 GHz band provides a virtually interference-free RF environment ideal for latency-sensitive and high-bandwidth enterprise workloads.
The EAP773 integrates fully into the Omada SDN platform, supporting centralized policy management, automated RF optimization, and seamless roaming via 802.11r/k/v. Multi-Link Operation allows client devices to simultaneously transmit and receive across multiple bands, improving reliability and throughput for Wi-Fi 7 capable endpoints. The AP is equipped with a 2.5 Gigabit Ethernet uplink port to prevent the wired backhaul from bottlenecking the wireless throughput available on Wi-Fi 7 bands.
The unit is powered via 802.3bt PoE++ to support all three radios simultaneously at full power. Its enterprise-grade feature set includes OFDMA across all three bands, BSS Coloring, MU-MIMO (4×4 on 5/6 GHz), and support for WPA3-Enterprise security. The EAP773 is positioned for organizations planning Wi-Fi 7 infrastructure refresh cycles, particularly in high-density or latency-sensitive environments.
Ideal for
- Enterprise Wi-Fi 7 infrastructure refresh deployments
- High-density auditoriums and event spaces requiring sub-5ms latency
- Healthcare environments with real-time patient monitoring devices
- Financial trading floors requiring deterministic wireless performance
- University research labs with high-bandwidth data transfer needs
- Multi-service enterprise campuses needing simultaneous IoT and user traffic separation
Technical specifications
| Manufacturer | TP-Link |
| Part Number | EAP773 |
| Wi-Fi Standard | IEEE 802.11be/ax/ac/n/g/b/a (Wi-Fi 7) |
| Frequency Bands | 2.4 GHz + 5 GHz + 6 GHz (tri-band) |
| Aggregate Throughput | 9301 Mbps (574 @ 2.4 GHz + 2882 @ 5 GHz + 5765 @ 6 GHz) |
| 6 GHz Radio | 4×4 MU-MIMO, 320 MHz channel, up to 5765 Mbps |
| 5 GHz Radio | 4×4 MU-MIMO, 160 MHz channel, up to 2882 Mbps |
| 2.4 GHz Radio | 2×2 MU-MIMO, 40 MHz channel, up to 574 Mbps |
| Multi-Link Operation (MLO) | Yes (Wi-Fi 7 MLO) |
| Max Modulation | 4096-QAM |
| OFDMA | Uplink + Downlink (all bands) |
| BSS Coloring | Yes |
| Ethernet Port | 1× 2.5 Gigabit RJ-45 (PoE in) |
| PoE Input | 802.3bt PoE++ (max 51W) |
| SSIDs | Up to 16 per band |
| Security | WPA3-Enterprise, WPA2-Enterprise, 802.1X |
| Roaming | 802.11r/k/v |
| Management | Omada SDN (cloud/hardware/software controller) |
| Mounting | Ceiling T-rail or wall |
| Dimensions | 226.8 × 226.8 × 52.3 mm |
| Operating Temperature | 0°C to 40°C |
Available from Omnixon Global. Submit an RFQ and our team will confirm configuration and availability for your order.
Technical Specifications
| Brand | TP-Link |
| Category | Wireless Access Points |
| SKU | TPLI-EAP773 |
| Part Number | EAP773 |
| Condition | New |
| Wi-Fi Standard | IEEE 802.11be/ax/ac/n/g/b/a (Wi-Fi 7) |
| Frequency Bands | 2.4 GHz + 5 GHz + 6 GHz (tri-band) |
| Aggregate Throughput | 9301 Mbps (574 @ 2.4 GHz + 2882 @ 5 GHz + 5765 @ 6 GHz) |
| 6 GHz Radio | 4×4 MU-MIMO, 320 MHz channel, up to 5765 Mbps |
| 5 GHz Radio | 4×4 MU-MIMO, 160 MHz channel, up to 2882 Mbps |
| 2.4 GHz Radio | 2×2 MU-MIMO, 40 MHz channel, up to 574 Mbps |
| Multi-Link Operation (MLO) | Yes (Wi-Fi 7 MLO) |
| Max Modulation | 4096-QAM |
| OFDMA | Uplink + Downlink (all bands) |
| BSS Coloring | Yes |
| Ethernet Port | 1× 2.5 Gigabit RJ-45 (PoE in) |
| PoE Input | 802.3bt PoE++ (max 51W) |
| SSIDs | Up to 16 per band |
| Security | WPA3-Enterprise, WPA2-Enterprise, 802.1X |
| Roaming | 802.11r/k/v |
| Management | Omada SDN (cloud/hardware/software controller) |
| Mounting | Ceiling T-rail or wall |
| Dimensions | 226.8 × 226.8 × 52.3 mm |
| Operating Temperature | 0°C to 40°C |
Frequently Asked Questions about TP-Link Omada EAP773 BE9300 Wi-Fi 7 Tri-Band Access Point
What does the TP-Link Omada EAP773 BE9300 Wi-Fi 7 Tri-Band Access Point do?
The TP-Link Omada EAP773 BE9300 Wi-Fi 7 Tri-Band Access Point is enterprise networking hardware for data-center, campus, and branch deployments. Common roles include core/distribution switching, server uplinks, top-of-rack fabric, and edge connectivity in mixed Cisco/Juniper/Arista environments.
What are the headline specs of the TP-Link Omada EAP773 BE9300 Wi-Fi 7 Tri-Band Access Point?
Key specifications for the TP-Link Omada EAP773 BE9300 Wi-Fi 7 Tri-Band Access Point: new condition; manufacturer TP-Link; part number EAP773; wi-fi standard IEEE 802.11be/ax/ac/n/g/b/a (Wi-Fi 7); frequency bands 2.4 GHz + 5 GHz + 6 GHz (tri-band); aggregate throughput 9301 Mbps (574 @ 2.4 GHz + 2882 @ 5 GHz + 5765 @ 6 GHz); 6 ghz radio 4×4 MU-MIMO, 320 MHz channel, up to 5765 Mbps. Manufacturer part number EAP773. For the full datasheet with electrical, environmental, and compliance details, contact our pre-sales engineering team.
Is the TP-Link Omada EAP773 BE9300 Wi-Fi 7 Tri-Band Access Point compatible with my infrastructure?
The TP-Link Omada EAP773 BE9300 Wi-Fi 7 Tri-Band Access Point interoperates with standard switching protocols (LACP, MLAG/VPC, 802.1Q, OSPF/BGP). For specific cross-vendor scenarios — Cisco-to-Arista MLAG peering, fabric integration with Cumulus/SONiC, or migration from legacy Catalyst — our network engineers map a compatibility plan as part of the RFQ.
