Brand: TP-Link | Category: Network Switches
SKU: DR3650V-4G | Part #: DR3650V-4G | MPN: DR3650V-4G
Contact for Pricing — Request a Quote
Get the Higher DSL Speeds Cost-Effectively
The integrated DSL port supports VDSL2/ADSL2+/ADSL2/ADSL connections. Compatibility with the leading ISPs provides ideal IP-based connections for any small business.
Versatile Connectivity

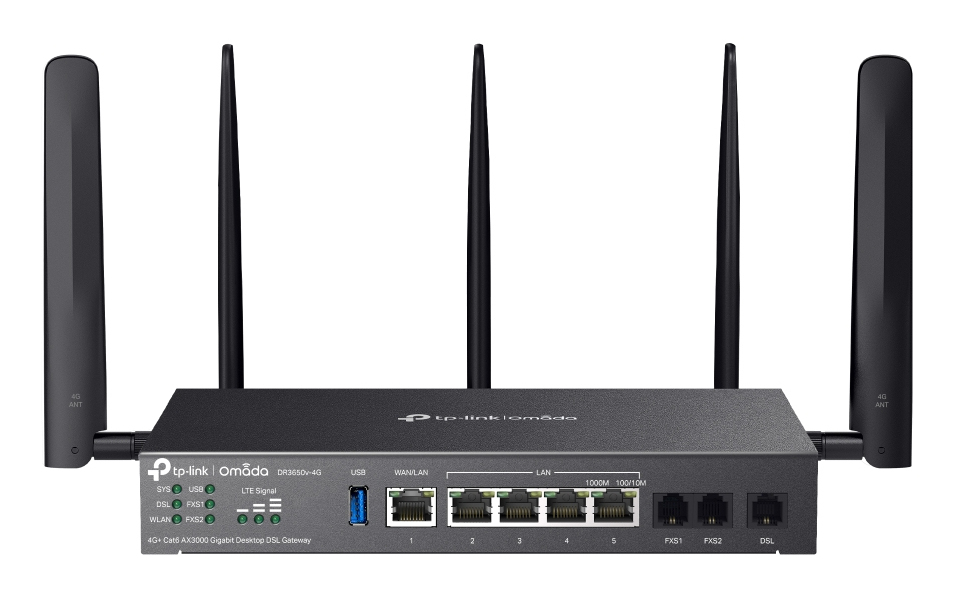

DR3650v-4G's compatible with Super VDSL (VDSL2 Profile 35b), Ethernet access, and 4G/3G USB modems. Its Gigabit LAN/WAN port accepts connections from cable or fiber modems, and the USB 3.0 port supports 4G/3G dongles for a solid main or backup internet connection.
Software Defined Networking (SDN) with Cloud Access
Centralized cloud management for Omada gateways, switches, and access points across multiple sites, with the Omada cloud-based controller offering the Essentials version of cloud services for free, reducing maintaince costs.
High-Security and High-Performance VPN
SSL/IPSec /GRE/WireGuard / PPTP/L2TP VPN &
OpenVPN easily build secure VPN tunnels for secure Internet browsing, communication between different branches, or enabling remote work or study from home.
| Brand | TP-Link |
| Category | Network Switches |
| SKU | DR3650V-4G |
| Part Number | DR3650V-4G |
| Condition | New |
| DC-in jack | Yes |
| RJ-11 ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB port | Yes |
| Ethernet LAN (RJ-45) ports | 4 |
| VPN support | IPSec/PPTP/L2TP/OpenVPN/WireGuard/GRE/SSL |
| Built-in FTP server | Yes |
| Static route | Yes |
| Policy-based routing | Yes |
| Dynamic DNS (DDNS) | Yes |
| Load balancing system | Yes |
| Port triggering | Yes |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| Detachable antenna(s) | Yes |
| Antennas quantity | 5 |
| Antenna gain level (max) | 4.5 dBi |
| Antenna design | External |
| WLAN data transfer rate (second band) | 2402 Mbit/s |
| WLAN data transfer rate (first band) | 574 Mbit/s |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| WLAN data transfer rate (max) | 2402 Mbit/s |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Mean time between failures (MTBF) | 671034 h |
| Internal memory | 512 MB |
| Internal memory type | DDR4 |
| Voice codecs | G.711a, G.711ulaw, G.722, G.726, G.729ab |
| Universal Plug and Play (UPnP) | Yes |
| DHCP server | Yes |
| DHCP client | Yes |
| NAT functionality | One-to-One NAT Multi-Net NAT Virtual Server Port Triggering1 NAT-DMZ FTP/H.323/SIP/IPSec/PPTP ALG UPnP |
| Network address translation (NAT) | Yes |
| DMZ support | Yes |
| System event log | Yes |
| URL filtering | Yes |
| Guest access | Yes |
| Access Control List (ACL) | Yes |
