Brand: TP-Link | Category: Network Switches
SKU: SX3032F | Part #: SX3032F | MPN: SX3032F
Contact for Pricing — Request a Quote

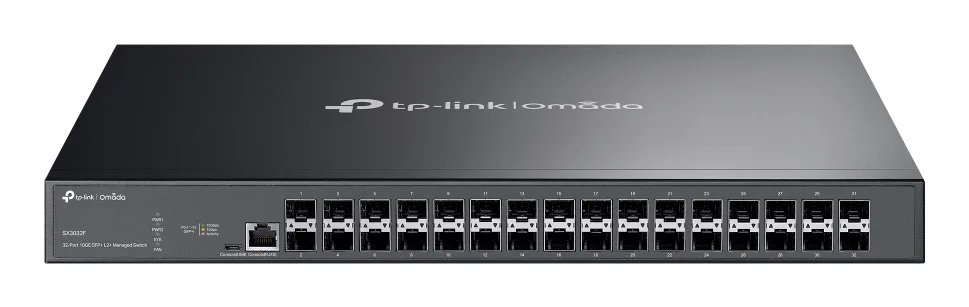

The TP-Link Omada SX3032F is a managed 10GE L2+ rack switch with 32 SFP+ ports, one RJ-45 Ethernet port, and an RJ-45/Micro-USB console port for management. It has 24 MB of packet buffer memory and supports jumbo frames.
VLAN support includes protocol-based VLAN, SSID-based VLAN assignment, tagged VLAN, VLAN mapping and Voice VLAN. Traffic and resilience features include flow control, link aggregation, broadcast storm control, rate limiting, spanning tree protocol and port mirroring. The L2+ feature set provides 128 IP interfaces, 128 static routes, and 48 IPv4 and 48 IPv6 routes. Supported standards include IEEE 802.1Q, 802.1ab, 802.1p, 802.1x, 802.3ah and 802.3x.
This all-SFP+ switch suits rack-mounted network deployments that need 10GE fibre aggregation, such as core or distribution layers in business networks, server rooms and data centre environments.
Send the part number through our RFQ form and our team will reply within 48 hours.
| Brand | TP-Link |
| Category | Network Switches |
| SKU | SX3032F |
| Part Number | SX3032F |
| Condition | New |
| Console port | RJ-45/Micro-USB |
| Installed SFP+ modules quantity | 32 |
| Basic switching RJ-45 Ethernet ports quantity | 1 |
| Number of VLANs | 30 |
| Virtual LAN features | Protocol-based VLAN, SSID-based VLAN assignment, Tagged VLAN, VLAN mapping, Voice VLAN |
| VLAN support | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
| IPv4 routes | 48 |
| IPv6 routes | 48 |
| Port mirroring | Yes |
| Networking standards | IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1x, IEEE 802.3ah, IEEE 802.3x |
| Packet buffer memory | 24 MB |
| Jumbo frames | 9 |
| Jumbo frames support | Yes |
| Number of IP interfaces | 128 |
| Number of static routes | 128 |
| Static route | Yes |
| Number of queues | 8 |
| MAC address table | 32000 entries |
| Forwarding rate | 240 Mpps |
| Switching capacity | 640 Gbit/s |
| IP Source Guard (IPSG) | Yes |
| IPv4 & IPv6 features | Dual stack IPv4/IPv6, ICMPv6, IPv6 TFTP |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| Static port security | Yes |
| SSH/SSL support | Yes |
| Loop protection | Yes |
| IP-MAC-Port binding | Yes |
| Authentication | MAC-based authentication, Port-based authentication |
| Password protection | Yes |
| Authentication type | AAA, TACACS+ |
| Queue scheduling algorithms | Priority queuing (PQ), SP, Weighted Round Robin (WRR) |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| DHCP features | DHCP relay, DHCP server, DHCPv6 snooping |
| MIB support | • MIB II (RFC1213) • Interface MIB (RFC2233) • Ethernet Interface MIB (RFC1643) • Bridge MIB (RFC1493) • P/Q-Bridge MIB (RFC2674) • RMON MIB (RFC2819) • RMON2 MIB (RFC2021) • Radius Accounting Client MIB (RFC2620) • Radius Authentication Client MIB (RFC2618) • Remote Ping, Traceroute MIB (RFC2925) • Support TP-Link private MIB |
The TP-Link Omada 32-PORT Managed 10GE L2+ Rack Switch, SFP+(32) is enterprise networking hardware for data-center, campus, and branch deployments. Common roles include core/distribution switching, server uplinks, top-of-rack fabric, and edge connectivity in mixed Cisco/Arista environments.
Key specifications for the TP-Link Omada 32-PORT Managed 10GE L2+ Rack Switch, SFP+(32): new condition; console port RJ-45/Micro-USB; installed sfp+ modules quantity 32; basic switching rj-45 ethernet ports quantity 1; number of vlans 30; virtual lan features Protocol-based VLAN, SSID-based VLAN assignment, Tagged VLAN, VLAN mapping, Voice VLAN; vlan support Yes. Manufacturer part number SX3032F. For the full datasheet with electrical, environmental, and compliance details, contact our pre-sales engineering team.
The TP-Link Omada 32-PORT Managed 10GE L2+ Rack Switch, SFP+(32) interoperates with standard switching protocols (LACP, MLAG/VPC, 802.1Q, OSPF/BGP). For specific cross-vendor scenarios — Cisco-to-Arista MLAG peering, fabric integration with Cumulus/SONiC, or migration from legacy Catalyst — our network engineers map a compatibility plan as part of the RFQ.
