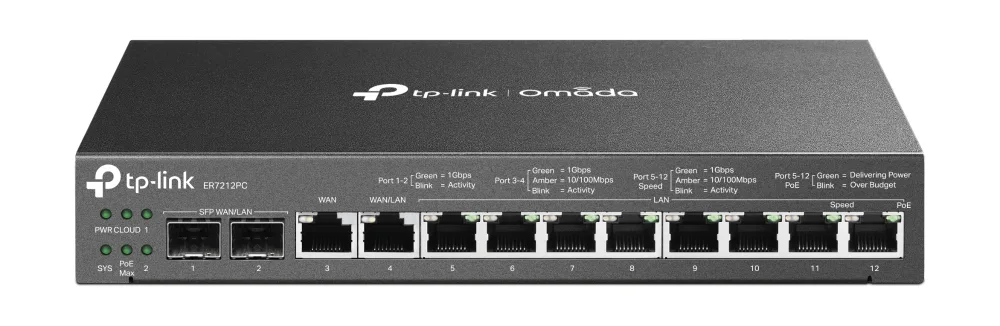

TP-LINK OMADA 3-IN-1 GIGABIT VPN ROUTER, GbE SFP WAN/LAN(2), WAN(2), LAN(8), 5YR

TP-LINK OMADA 3-IN-1 GIGABIT VPN ROUTER, GbE SFP WAN/LAN(2), WAN(2), LAN(8), 5YR

Brand: TP-Link | Category: Network Switches

SKU: ER7212PC | Part #: ER7212PC | MPN: ER7212PC

Contact for Pricing — Request a Quote

Request a Quote Contact Us

About the TP-LINK OMADA 3-IN-1 GIGABIT VPN ROUTER, GbE SFP WAN/LAN(2), WAN(2), LAN(8), 5YR

A Future-Proof, Versatile, and Compact Router with PoE+ Ports and Controller Capability

Omada 3-in-1 Gigabit VPN Router

3-in-1 Router, More Than A Router

The 3-in-1 ER7212PC presents a one-stop solution for home and small business networking.

With a single compact box, users can replace their router, hardware controller, and PoE+ switch setup. There is no need to manually configure various network devices one by one, you can perform unified deployment through ER7212PC. All you need is one device.

Up to Four WAN Gigabit Ports to Optimize Bandwidth Usage

Equipped with multiple ports, ER7212PC satisfies various internet access requirements through one device. The multi-WAN Load Balancing function distributes data streams according to the bandwidth proportion of every WAN port to raise the utilization rate of multi-line broadband.

Easy Installation, Quiet Heat Dissipation

A clean, well-organized, and quiet network environment is at your fingertips.

  • The compact and minimalist design makes it suitable for your configuration in various spaces, whether it's the corner of office desks or the ceiling of a store.
  • Fanless design offers noiseless heat dissipation to your shops or offices.

Easy Centralized Management

With built-in centralized management capability, the ER7212PC enables you to manage and update devices in bulk, with no need for individual and complex setups. Additionally, check the Omada app or web browser, ER7212PC allows you to remotely control connected devices, monitor the network, and view the network maintenance in real-time.

High-Security and High-Performance VPN

ER7212PC supports pass-through traffic and multiple VPN protocols, including OpenVPN, IPSec, PPTP, and L2TP in Client/Server mode. One-click auto IPSec VPN simplifies VPN configuration and facilitates network management and deployment.

Robust Security Features

  • Powerful Firewall

Advanced firewall policies

protect your network and data.

  • Convenient VLAN Support

Create virtual network segments for

enhanced security and simplified

network management.

  • DoS Defense

Automatically detects and blocks

Denial of Service (DoS) attacks such

as TCP/UDP/ICMP Flooding, Ping of

Death, and other related threats.

  • IP/MAC/URL/Keyword Filtering

Forcefully prevent viruses and attacks from intruders.

  • IP-MAC Binding

Reserves static IP assignment for

clients to defend against ARP

attacks and spoofing.

  • One-Click ALG Activation

One-Click ALG Activation for

applications such as FTP, H323, SIP,

IPSec, and PPTP.

Technical Specifications

BrandTP-Link
CategoryNetwork Switches
SKUER7212PC
Part NumberER7212PC
ConditionNew
DC-in jackYes
Combo SFP ports quantity2
Power over Ethernet (PoE) ports quantity8
Ethernet LAN (RJ-45) ports10
Port forwardingYes
Static routeYes
VLAN supportYes
Ethernet LAN data rates10,100,1000 Mbit/s
Cabling technology10/100/1000Base-T(X)
Ethernet interface typeGigabit Ethernet
Networking standardsIEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
CertificationCE, FCC, RoHS
Internal memory typeDDR3
Internal memory1024 MB
Flash memory4096 MB
Processor frequency1200 MHz
Built-in processorYes
NAT functionalityMulti-Net NAT; Virtual Server; NAT-DMZ; FTP/H.323/SIP/IPSec/PPTP ALG; UPnP;
Access Control List (ACL)Yes
URL filteringYes
Supported protocolsTCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, SNMP
DHCP clientYes
DHCP serverYes
Reset buttonYes
Universal Plug and Play (UPnP)Yes
Power over Ethernet (PoE)Yes
Output current2.43 A
Output voltage53.5 V
LED indicatorsYes
Housing materialMetal
Product colourBlack
Storage relative humidity (H-H)5 - 90%
Operating relative humidity (H-H)10 - 90%
Storage temperature (T-T)-40 - 70 °C
Operating temperature (T-T)0 - 45 °C
SFP WANYes
3G/4G USB modem compatibilityNo
SIM card slotNo
DSL WANNo
Ethernet WANYes
