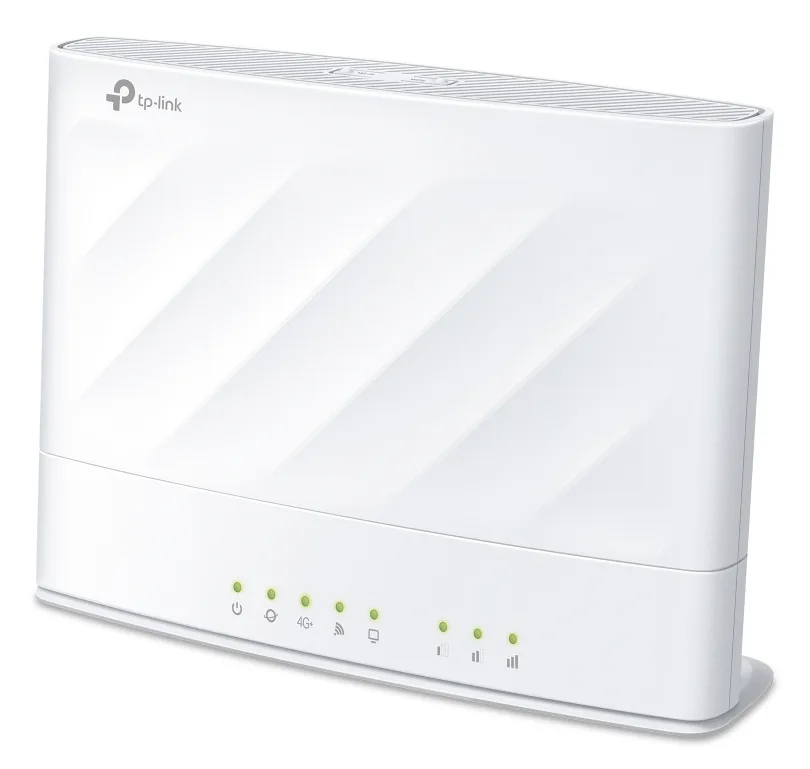

Brand: TP-Link | Category: Network Equipment
SKU: ARCHER MX700 | Part #: ARCHER MX700 | MPN: ARCHER MX700
Contact for Pricing — Request a Quote
SIM-Powered 4G+ Internet in Minutes: Ditch Landlines, Move Anywhere
Escape rigid broadband contracts and endless installation waits. The Archer MX700 transforms a SIM card into powerful 4G+ internet—set up in minutes and move seamlessly between home offices, pop-up shops, travel vans, or holiday home.△ No need for complicated cables, just internet freedom wherever life takes you
4G+ Speed Meets Dual-Band Wi-Fi Power
The Archer MX700 delivers 300Mbps 4G+ speeds via Carrier Aggregation technology, with dual-band Wi-Fi supporting 1201Mbps on 5 GHz for lag-free 4K streaming and 300Mbps on 2.4 GHz for web browsing. All your connections, one powerful router that fits on your windowsill.
Ideal for High-Density Small Businesses: 128 Devices Supported
Archer MX700 delivers reliable 4G+ speeds, supporting 128 concurrent connections with MU-MIMO and Beamforming technology. LAN ports stand ready to provide internet for wired devices like desktop computers.
Flexibly Create Whole Home Mesh WiFi
If you have any dead zones at home, just add another Easymesh-Compatible router/range extender to further form your whole home multi-gigabit mesh WiFi. No more searching for a stable connection.
Available WAN Connection Backup
With the gigabit WAN/LAN port, the Archer MX700 can work as router with any modem (cable/fiber/DSL) for super-fast 4G+ backup., or provide gigabit speeds for wired devices.
Easy Setup and Use
Set up the Archer MX700 in minutes thanks to its intuitive web interface and the powerful Tether app. Manage network settings, including Parental Controls and Access Control, from any Android or iOS device. Tether also provides Automatic Firmware Updates to always give your network the latest performance and security.
| Brand | TP-Link |
| Category | Network Equipment |
| SKU | ARCHER MX700 |
| Part Number | ARCHER MX700 |
| Condition | New |
| DC-in jack | Yes |
| USB port | No |
| Ethernet LAN (RJ-45) ports | 4 |
| Receiver sensitivity | 5 GHz: 11a 54M: -77 dBm 11ax HE20:-64 dBm 11ax HE40: -61 dBm 11ax HE80:-59 dBm 11ac VHT20: -69 dBm 11ac VHT40: -66 dBm 11ac VHT80 : -63 dBm 11n HT20: -74 dBm 11n HT40: -71 dBm 2.4 GHz: 11g 54M: -78 dBm 11n HT20: -75 dBm 11n HT40: -72 dBm |
| Number of guest networks (2.4 GHz) | 1 |
| Number of guest networks (5 GHz) | 1 |
| Dynamic DNS (DDNS) | Yes |
| Port triggering | Yes |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| Antennas quantity | 6 |
| Antenna design | Internal |
| WLAN data transfer rate (second band) | 1201 Mbit/s |
| WLAN data transfer rate (first band) | 300 Mbit/s |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| WLAN data transfer rate (max) | 1201 Mbit/s |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Firmware upgradeable | Yes |
| Supported network protocols | IPv4, IPv6 |
| Universal Plug and Play (UPnP) | Yes |
| DHCP server | Yes |
| DHCP client | Yes |
| DMZ support | Yes |
| System event log | Yes |
| Schedule access | Yes |
| Firewall security | IPv4 SPI Firewall, ALG, IP and MAC Address Binding, Access Control |
| Security algorithms | 64-bit WEP, 128-bit WEP, WPA-Enterprise, WPA-Personal, WPA2-Enterprise, WPA2-Personal, WPA3-Personal |
| Cloud-managed | Yes |
| MU-MIMO technology | Yes |
| Reset button | Yes |
| Quality of Service (QoS) support | Yes |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| Bandwidth control | Yes |
| Power source type | DC |
| Product type | Rack/wall router |
| On/off switch | Yes |
| Wall mountable | Yes |
| Product colour | White |
The TP-Link Archer MX700 4G+ Dual-Band Wi-Fi Router, CAT6 300Mbps, SIM Slot, Easymesh is enterprise networking hardware for data-center, campus, and branch deployments. Common roles include core/distribution switching, server uplinks, top-of-rack fabric, and edge connectivity in mixed Cisco/Arista environments.
Key specifications for the TP-Link Archer MX700 4G+ Dual-Band Wi-Fi Router, CAT6 300Mbps, SIM Slot, Easymesh: new condition; dc-in jack Yes; usb port No; ethernet lan (rj-45) ports 4; receiver sensitivity 5 GHz: 11a 54M: -77 dBm 11ax HE20:-64 dBm 11ax HE40: -61 dBm 11ax HE80:-59 dBm 11ac VHT20: -69 dBm 11ac VHT40: -66 dBm 11ac VHT80 : -63 dBm 11n HT20: -74 dBm 11n HT40: -71 dBm 2.4 GHz: 11g 54M: -78 dBm 11n HT20: -75 dBm 11n HT40: -72 dBm; number of guest networks (2.4 ghz) 1; number of guest networks (5 ghz) 1. Manufacturer part number ARCHER MX700. For the full datasheet with electrical, environmental, and compliance details, contact our pre-sales engineering team.
The TP-Link Archer MX700 4G+ Dual-Band Wi-Fi Router, CAT6 300Mbps, SIM Slot, Easymesh interoperates with standard switching protocols (LACP, MLAG/VPC, 802.1Q, OSPF/BGP). For specific cross-vendor scenarios — Cisco-to-Arista MLAG peering, fabric integration with Cumulus/SONiC, or migration from legacy Catalyst — our network engineers map a compatibility plan as part of the RFQ.
