Brand: TP-Link | Category: Network Equipment
SKU: ARCHER BE220 | Part #: ARCHER BE220 | MPN: ARCHER BE220
Contact for Pricing — Request a Quote
Exploring the New Era of Home Wi-Fi

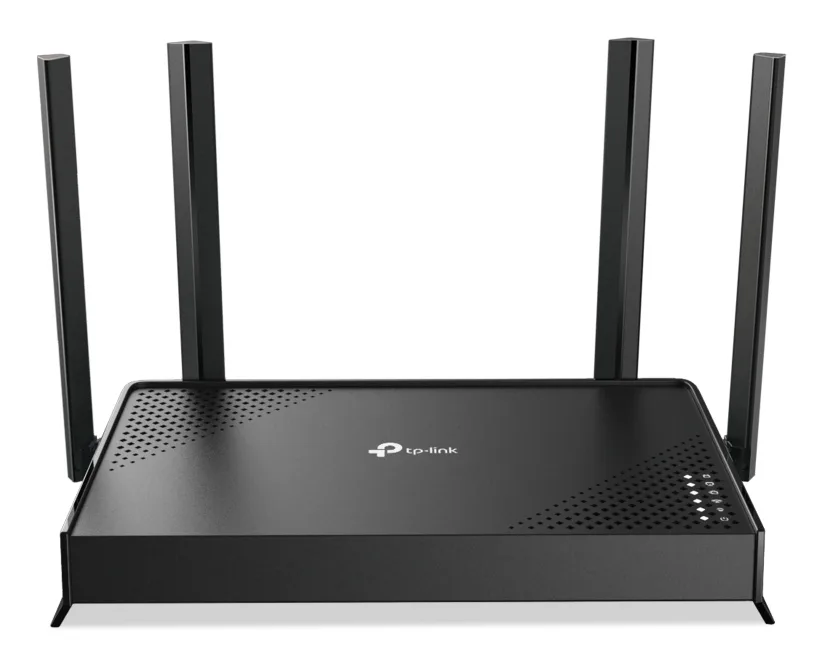

BE3600 Dual-Band Wi-Fi 7 Router
Next-Level Experience Realised with 3.6 Gbps Wi-Fi 7
Powered by Wi-Fi 7 technology, Archer BE220 delivers an incredible wireless rate of up to 3.6 Gbps, enabling your devices to run at full speed. Enjoy fluent 4K/8K streaming, immersive AR/VR gaming, and blazing-fast downloads.
Full Gigabit Ports for Premium Wired Performance
Gigabit Ethernet ports deliver maximum wired speeds. Plug in PCs, smart TVs, and game consoles for fast and reliable connections
Boosted Wi-Fi Coverage Throughout Your Home
4× high-performance antennas boost Wi-Fi signals throughout your home. Beamforming technology detects devices and concentrates signals towards them, especially to previously hard-to-reach areas.
Flexibly Create Whole Home Mesh Wi-Fi
Archer BE220 is EasyMesh-compatible. If you have any dead zones at home, just add another EasyMesh router/range extender to further form your whole home multi-gigabit mesh Wi-Fi. No more searching for a stable connection.
Eliminate weak signal areas with Wi-Fi coverage for the whole house
Uninterrupted streaming when moving around your home
No more switching Wi-Fi network names
Your Security is Our Priority
With TP-Link HomeShield, enjoy advanced security features that deliver a safe environment that protects your family and network's data and privacy.
Real-time network scanner to detect potential threats and security issues.
Manage time online and block inappropriate content to keep your family safe online.
Assign your favorite devices to have the fastest connections for top performance.
VPN Clients and Server Supported
Allow devices in your home network to access remote VPN servers without needing to install VPN software on every device. Archer BE220 can run both the VPN and ordinary internet connections at the same time, delivering security and flexibility.
Setup Got Easier than Ever
Install the Tether app and simply follow the on-screen directions. In just three easy steps your entire home can be blanketed in strong and reliable Wi-Fi.
| Brand | TP-Link |
| Category | Network Equipment |
| SKU | ARCHER BE220 |
| Part Number | ARCHER BE220 |
| Condition | New |
| USB port | No |
| Ethernet LAN (RJ-45) ports | 4 |
| VPN server | : OpenVPN, PPTP, L2TP, Wireguard VPN Server |
| Number of guest networks (2.4 GHz) | 1 |
| Number of guest networks (5 GHz) | 1 |
| Dynamic DNS (DDNS) | Yes |
| Port forwarding | Yes |
| Port triggering | Yes |
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| Transmit power | 30 dBmW |
| Receive power | 97 dBmW |
| Antennas quantity | 4 |
| Antenna design | External |
| Antenna type | 2x2 |
| Modulation | OFDMA |
| WLAN data transfer rate (second band) | 2882 Mbit/s |
| WLAN data transfer rate (first band) | 688 Mbit/s |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be) |
| WLAN data transfer rate (max) | 2882 Mbit/s |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Firmware upgradeable | Yes |
| Universal Plug and Play (UPnP) | Yes |
| DMZ support | Yes |
| Parental control | Yes |
| Firewall security | SPI Firewall |
| Access Control List (ACL) | Yes |
| Firewall | Yes |
| Security algorithms | WPA, WPA2, WPA3 |
| MU-MIMO technology | Yes |
| WPS push button | Yes |
| Reset button | Yes |
| Quality of Service (QoS) support | Yes |
| Output voltage | 12 V |
| Power source type | AC |
| Product type | Tabletop router |
| On/off switch | Yes |
| Product colour | Black |
| Operating temperature (T-T) | 0 - 40 °C |
The TP-Link Archer BE3600 WI-FI 7 Dual-Band Router, Easymesh, GbE(4) is enterprise networking hardware for data-center, campus, and branch deployments. Common roles include core/distribution switching, server uplinks, top-of-rack fabric, and edge connectivity in mixed Cisco/Arista environments.
Key specifications for the TP-Link Archer BE3600 WI-FI 7 Dual-Band Router, Easymesh, GbE(4): new condition; usb port No; ethernet lan (rj-45) ports 4; vpn server : OpenVPN, PPTP, L2TP, Wireguard VPN Server; number of guest networks (2.4 ghz) 1; number of guest networks (5 ghz) 1; dynamic dns (ddns) Yes. Manufacturer part number ARCHER BE220. For the full datasheet with electrical, environmental, and compliance details, contact our pre-sales engineering team.
The TP-Link Archer BE3600 WI-FI 7 Dual-Band Router, Easymesh, GbE(4) interoperates with standard switching protocols (LACP, MLAG/VPC, 802.1Q, OSPF/BGP). For specific cross-vendor scenarios — Cisco-to-Arista MLAG peering, fabric integration with Cumulus/SONiC, or migration from legacy Catalyst — our network engineers map a compatibility plan as part of the RFQ.
