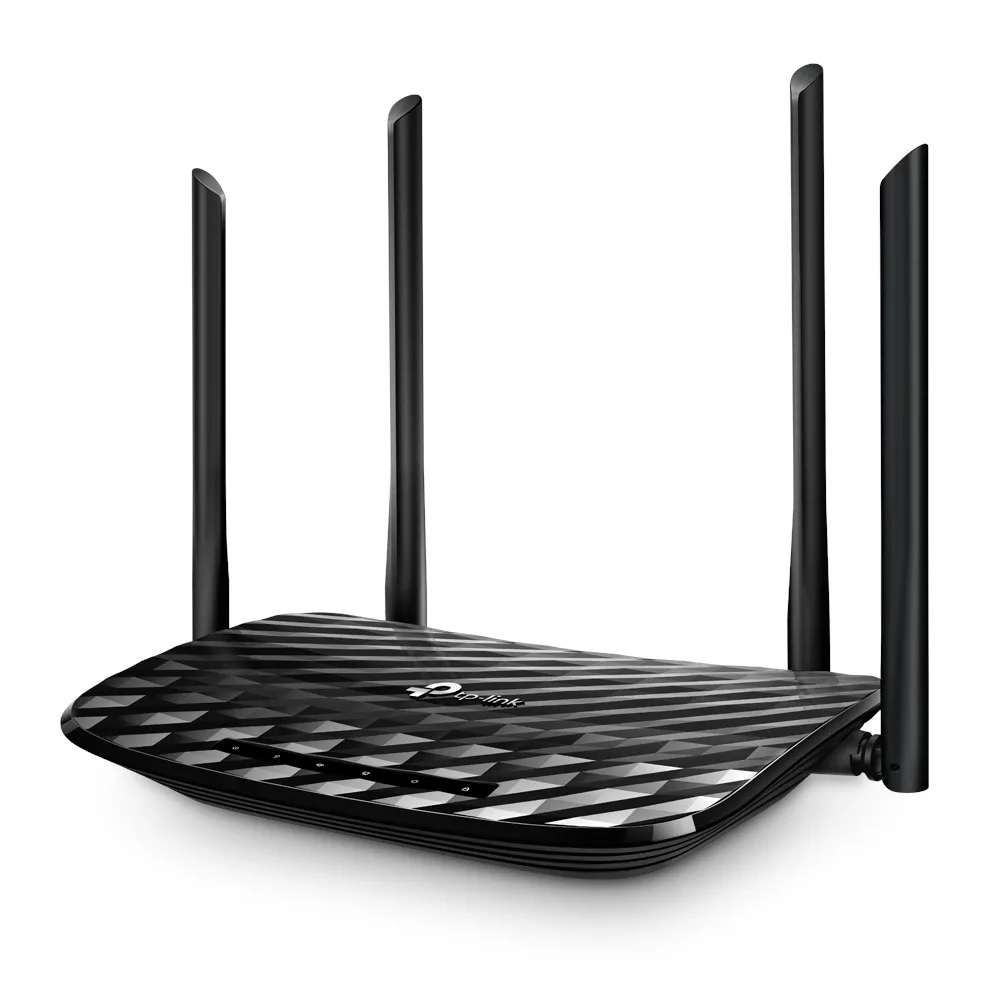

TP-Link Archer AC1200 Dual-Band Router, Easymesh, GbE(4)

TP-Link Archer AC1200 Dual-Band Router, Easymesh, GbE(4)

Brand: TP-Link | Category: Network Equipment

SKU: ARCHER A6 | Part #: ARCHER A6 | MPN: ARCHER A6

Contact for Pricing — Request a Quote

Request a Quote Contact Us

About the TP-Link Archer AC1200 Dual-Band Router, Easymesh, GbE(4)

Smooth Entertainment with AC1200 Dual Band WiFi

The Archer A6 creates a reliable and blazing-fast network powered by 802.11ac WiFi technology. The 2.4GHz band delivers

speeds up to 300Mbps for everyday tasks like emailing and web browsing while the 5GHz band delivers speeds up to

867Mbps making it ideal for HD video streaming and lag-free online gaming.

5 High-Performance Antennas for

WiFi Coverage throughout Your Home*

Four external antennas and one internal antenna send WiFi signals to every corner of your home. Stay connected and enjoy fast WiFi whether you are lounging on the sofa or on the balcony. With a powerful chipset, the Archer A6 provides ideal WiFi coverage.

Access Point Mode

Switch to Access Point Mode to share your wired network with other wireless devices.

MU-MIMO

Increase Speed, Throughput, Capacity

MU-MIMO enables the Archer A6 to serve multiple devices simultaneously. Say goodbye to bandwidth congestion and lag as you zip through a more efficient network built for more users and more devices.

Gigabit Connectivity, 10× Faster

With one Gigabit WAN port and four Gigabit LAN port, speeds can be up to 10× faster than a standard Ethernet

connection. Connect your favorite wired devices to the Archer A6 and get impressed!

Easy Setup and Management with the Tether APP

The free Tether app is available for both Android and iOS devices, making it easy to set up the Archer A6 and manage your network settings.

  • Maximum wireless transmission rates are the physical rates derived from IEEE Standard 802.11 specifications. Range and coverage specifications along with the number of connected devices were defined according to test results under normal usage conditions. Actual wireless transmission rate, wireless coverage, and number of connected devices are not guaranteed, and will vary as a result of 1) environmental factors, including building materials, physical objects and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead and 3) client limitations, including rated performance, location, connection quality, and client condition.
  • *Use of MU-MIMO requires clients to also support MU-MIMO.

Technical Specifications

BrandTP-Link
CategoryNetwork Equipment
SKUARCHER A6
Part NumberARCHER A6
ConditionNew
Memory card slot(s)No
USB portNo
Ethernet LAN (RJ-45) ports5
VPN supportOpenVPN,PPTP VPN
Cabling technology10/100/1000Base-T(X)
Ethernet LAN data rates10,100,1000 Mbit/s
Ethernet LAN interface typeGigabit Ethernet
Ethernet LANYes
Transmit power30 dBmW
Antennas quantity5
Antenna designInternal & external
Wi-Fi standards802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)867 Mbit/s
Top Wi-Fi standardWi-Fi 5 (802.11ac)
Wi-Fi bandDual-band (2.4 GHz / 5 GHz)
Supported network protocolsIPv4, IPv6
Universal Plug and Play (UPnP)Yes
DHCP serverYes
DHCP clientYes
DMZ supportYes
DoS attack preventionYes
Stateful Packet Inspection (SPI)Yes
Access Control List (ACL)Yes
FirewallYes
Security algorithms64-bit WEP, 128-bit WEP, WDS, WMM, WPA, WPA-PSK, WPA2, WPA2-PSK
WPS push buttonYes
Reset buttonYes
Web-based managementYes
Output current1 A
Output voltage12 V
Power source typeAC
Product typeTabletop router
On/off switchYes
Indication lightYes
Product colourBlack
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)10 - 90%
Storage relative humidity (H-H)5 - 90%
Mac operating systems supportedYes

Frequently Asked Questions about TP-Link Archer AC1200 Dual-Band Router, Easymesh, GbE(4)

What does the TP-Link Archer AC1200 Dual-Band Router, Easymesh, GbE(4) do?

The TP-Link Archer AC1200 Dual-Band Router, Easymesh, GbE(4) is enterprise networking hardware for data-center, campus, and branch deployments. Common roles include core/distribution switching, server uplinks, top-of-rack fabric, and edge connectivity in mixed Cisco/Arista environments.

What are the headline specs of the TP-Link Archer AC1200 Dual-Band Router, Easymesh, GbE(4)?

Key specifications for the TP-Link Archer AC1200 Dual-Band Router, Easymesh, GbE(4): new condition; memory card slot(s) No; usb port No; ethernet lan (rj-45) ports 5; vpn support OpenVPN,PPTP VPN; cabling technology 10/100/1000Base-T(X); ethernet lan data rates 10,100,1000 Mbit/s. Manufacturer part number ARCHER A6. For the full datasheet with electrical, environmental, and compliance details, contact our pre-sales engineering team.

Is the TP-Link Archer AC1200 Dual-Band Router, Easymesh, GbE(4) compatible with my infrastructure?

The TP-Link Archer AC1200 Dual-Band Router, Easymesh, GbE(4) interoperates with standard switching protocols (LACP, MLAG/VPC, 802.1Q, OSPF/BGP). For specific cross-vendor scenarios — Cisco-to-Arista MLAG peering, fabric integration with Cumulus/SONiC, or migration from legacy Catalyst — our network engineers map a compatibility plan as part of the RFQ.
