Brand: Schneider Electric | Category: Rack PDUs
SKU: AP7557 | Part #: AP7557 | MPN: AP7557
Contact for Pricing — Request a Quote

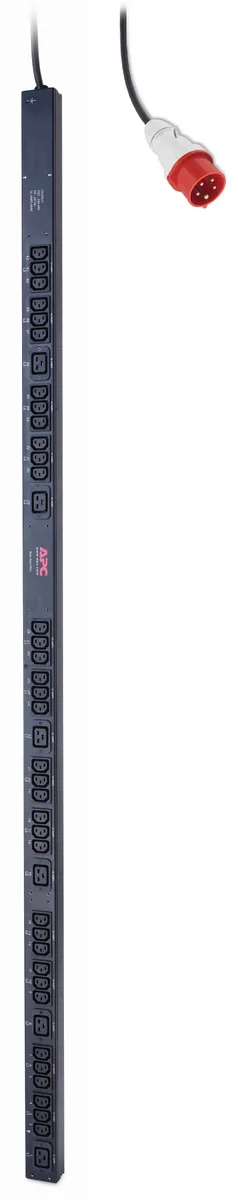

The Schneider Electric Easy PDU AP7557 is a 0U metered rack PDU rated at 32A 230V, providing real-time current monitoring across high-density rack deployments.
Submit your quantity, destination country, and required lead time below. Our pre-sales team responds within 48 hours with confirmed competitive quoting, availability, and matching support contract options.
Request a Quote →Product information is provided for B2B procurement guidance. All trademarks are property of their respective owners.
| Brand | Schneider Electric |
| Category | Rack PDUs |
| SKU | AP7557 |
| Part Number | AP7557 |
| Condition | New |
| Communication | USB, RS-232, SNMP / NMC card |
| Manufacturer Part Number | AP7557 |
| Form Factor | 0U Horizontal Rack PDU |
| Input Current | 32A |
| Input Voltage | 230V AC (single-phase) |
| Maximum Power Capacity | 7.36 kW |
| Outlet Count | 16 × C13 outlets |
| Inlet Type | IEC 60309 32A 230V |
| Metering | Per-Phase Power Metering |
| Management Interface | Web-based GUI, RS-232, SNMP v1/v2c/v3 |
| Mounting | Horizontal (0U) Rack-Mount |
| Operating Temperature | 0–40°C |
| Dimensions (W × D × H) | 441 × 190 × 88 mm |
| Weight | 2.8 kg |
Runtime is load-dependent. Most enterprise UPS at 50% load deliver 8-12 minutes battery on standard internal batteries. Add external battery packs (XL / RBC modules) to extend to 30-60 minutes if you need ride-through past short utility blips.
Yes — we ship the SNMP / Network Management Card (NMC) alongside the UPS, plus shutdown agents that integrate with VMware PowerChute, Veeam, NetApp ONTAP, and standard SNMP traps for orchestration platforms.
