Brand: Lenovo | Category: Accessories & Components
SKU: 4Y37A78601 | Part #: 4Y37A78601 | MPN: 4Y37A78601
Contact for Pricing — Request a Quote

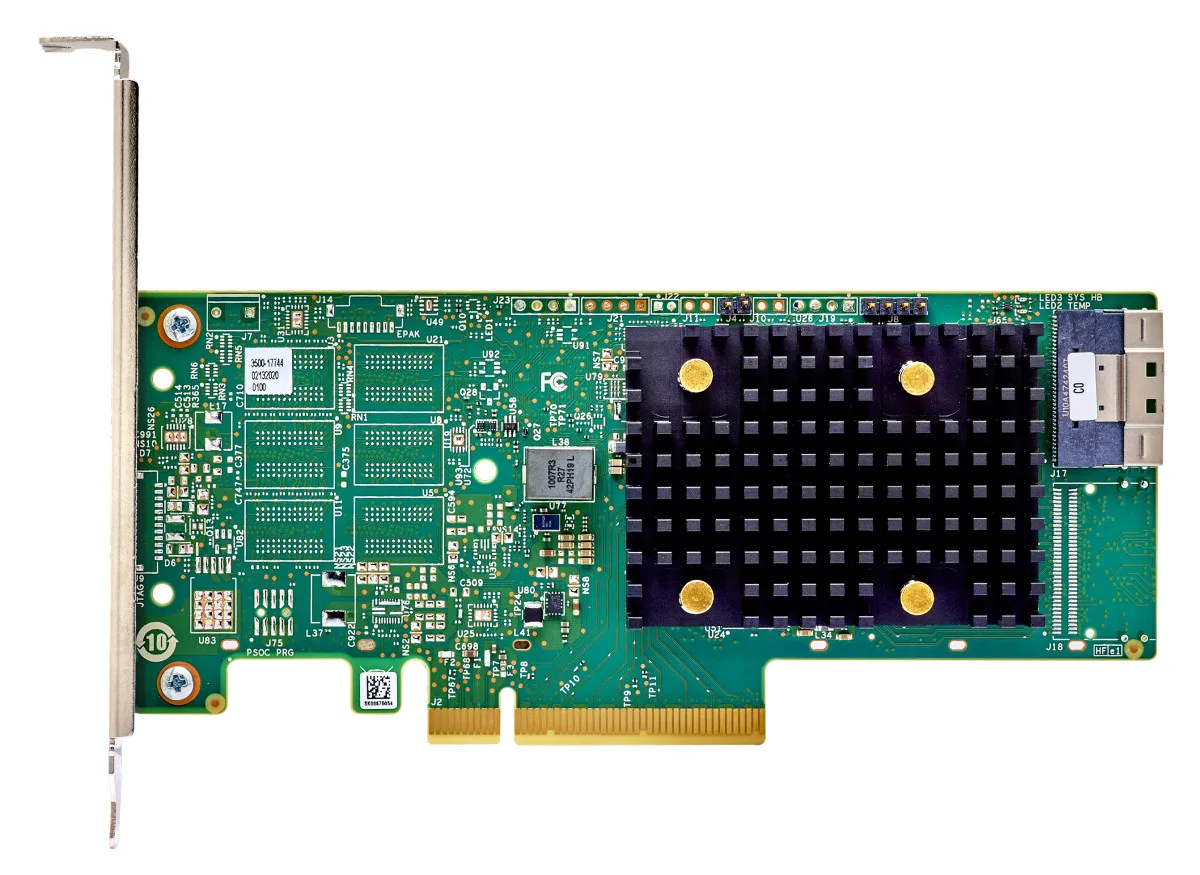

The ThinkSystem 440-8i and 440-16i SAS/SATA PCIe Gen4 12Gb HBAs are high performance PCIe 4.0 host bus adapters for internal storage connectivity in ThinkSystem servers. The adapters integrate the latest enhancements SAS technology and offer 8 or 16 lanes of 12 Gbps SAS.
This product guide provides essential presales information to understand the ThinkSystem HBAs and their key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the HBAs and consider their use in IT solutions.
| Brand | Lenovo |
| Category | Accessories & Components |
| SKU | 4Y37A78601 |
| Part Number | 4Y37A78601 |
| Condition | New |
| Expansion card standard | PCIe 4.0 |
| Expansion card form factor | Low-profile |
| Output interface | SAS, SATA |
| Host interface gender | Male |
| Host interface | PCIe |
| Data transfer rate (max) | 12 Gbit/s |
| Certification | USA (FCC 47 CFR part 15 Subpart B, class B) Canada (ICES -003, Class B) Taiwan (CNS 13438) Japan (VCCI V-3) Australia/New Zealand (AS/NZS CISPR 22) Korea (RRA no 2013-24 & 25) Europe (EN55022/EN55024) Safety: EN/ IEC/ UL 60950 RoHS WEEE |
| Cooling type | Passive |
| Purpose | Server |
| Internal | Yes |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage temperature (T-T) | -40 - 105 °C |
| Operating temperature (T-T) | 10 - 55 °C |
The Lenovo ThinkSystem MR21h PCIe Gen4 RAID Adapter is enterprise IT hardware deployed in production data centers, server rooms, and edge sites across the GCC and EMEA region.
Key specifications for the Lenovo ThinkSystem MR21h PCIe Gen4 RAID Adapter: new condition; expansion card standard PCIe 4.0; expansion card form factor Low-profile; output interface SAS, SATA; host interface gender Male; host interface PCIe; data transfer rate (max) 12 Gbit/s. Manufacturer part number 4Y37A78601. For the full datasheet with electrical, environmental, and compliance details, contact our pre-sales engineering team.
