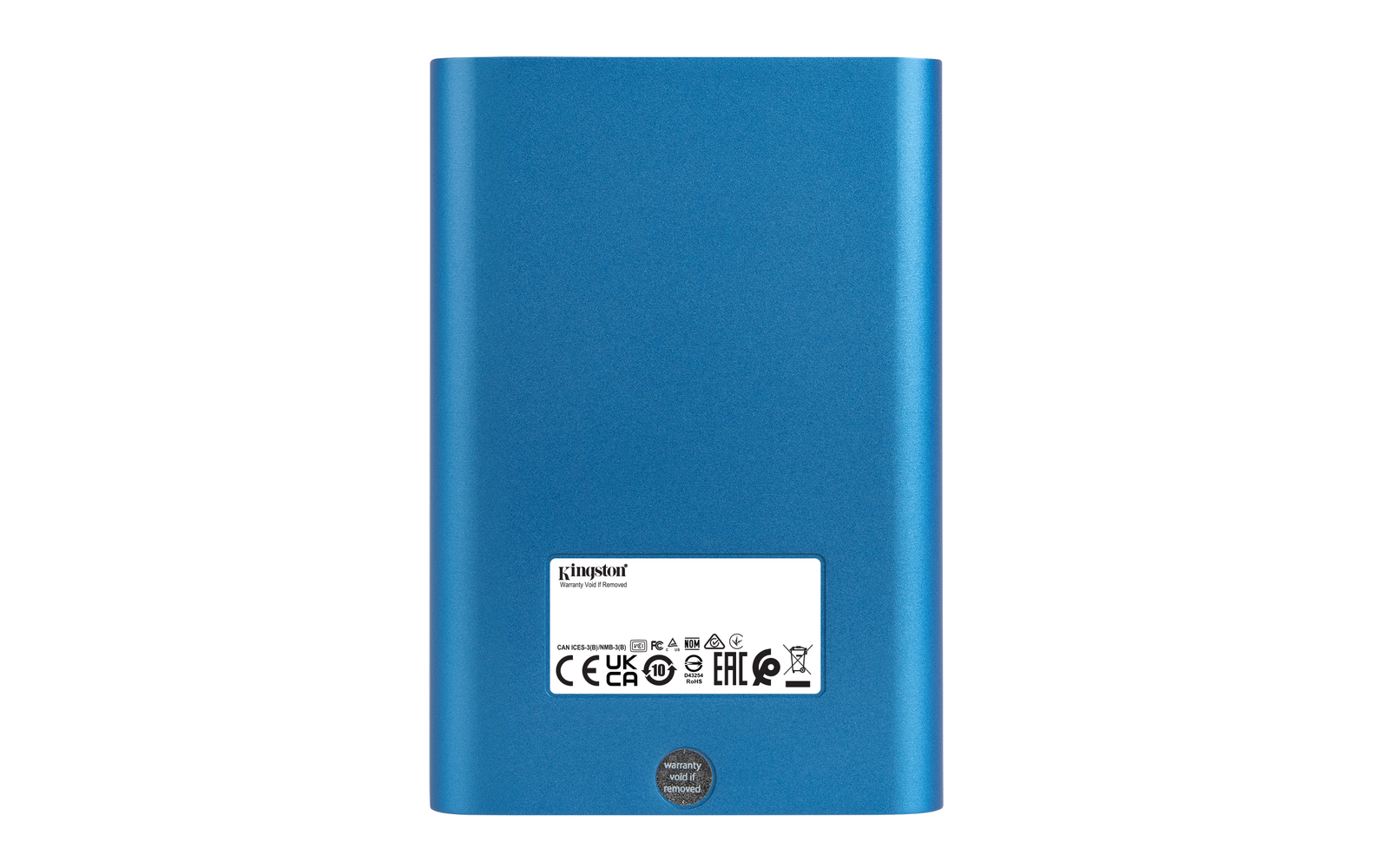

Kingston IronKey Vault Privacy 80ES 7.68TB External SSD

Kingston IronKey Vault Privacy 80ES 7.68TB External SSD

Brand: Kingston | Category: Storage Systems

SKU: KING-IKVP80ES7680G | Part #: IKVP80ES/7680G | MPN: IKVP80ES/7680G

Contact for Pricing — Request a Quote

Request a Quote Contact Us

About the Kingston IronKey Vault Privacy 80ES 7.68TB External SSD

The Kingston IronKey Vault Privacy 80ES 7.68TB is a high-capacity hardware-encrypted external SSD engineered for organizations that must transport, store, and protect sensitive data-at-rest in compliance with stringent regulatory and government security frameworks. The drive implements XTS-AES 256-bit hardware encryption conforming to FIPS 197 certification, meaning all encryption and decryption operations occur entirely within the device's onboard secure microcontroller — no software drivers, no host-side cryptographic exposure, and no dependency on the endpoint operating system. The integrated color touchscreen enables PIN and passphrase authentication directly on the device surface without ever transmitting credentials to a connected host, effectively eliminating keylogger and BadUSB attack vectors at the hardware boundary. Multi-password support allows separate Admin and User credentials, enabling enterprise administrators to recover access without compromising user data autonomy.

Ideal for

  • Secure transport of classified or sensitive government and defense datasets between air-gapped facilities where network transfer is prohibited by policy
  • Healthcare and life-sciences organizations transferring large DICOM imaging archives, genomic datasets, or clinical trial data in compliance with HIPAA data-at-rest requirements
  • Financial services firms performing offline encrypted backups of trading records, audit logs, and customer PII databases to meet SEC and GDPR retention mandates
  • Broadcast and media production studios physically shuttling high-resolution RAW video assets and project files between production sites and post-production facilities
  • Forensic investigators and law enforcement agencies maintaining tamper-evident chain-of-custody for digital evidence stored on an authenticated, hardware-encrypted medium
  • Enterprise IT security teams conducting penetration testing or incident response engagements where sensitive toolsets and evidence collections must remain encrypted and host-independent

Technical specifications

ManufacturerKingston
Product LineIronKey Vault Privacy 80 External SSD
ModelIKVP80ES/7680G
Capacity7.68 TB
Form FactorExternal SSD (portable ruggedized enclosure)
InterfaceUSB 3.2 Gen 1 (USB Type-C connector)
Encryption StandardXTS-AES 256-bit hardware encryption
Security CertificationFIPS 197 certified
Authentication MethodOn-device color touchscreen PIN / passphrase entry (no host keyboard input required)
Password RolesAdmin and User multi-password support with independent credential management
Brute-Force ProtectionConfigurable lockout and cryptographic erase after consecutive failed authentication attempts
Sequential Read SpeedUp to 250 MB/s
Sequential Write SpeedUp to 250 MB/s
OS CompatibilityOS-independent (Windows, macOS, Linux, ChromeOS, Android — no driver required)
ConnectorUSB Type-C (USB Type-A adapter included)
Ingress Protection RatingIP57 (dust-tight, immersion-resistant to 1 m for 30 minutes)
Enclosure MaterialAnodized aluminum with internal epoxy fill for physical tamper resistance
Operating Temperature0°C to 45°C
Storage Temperature-20°C to 60°C
Power SupplyBus-powered via USB (no external power required)
DimensionsApproximately 122.5 mm x 84.2 mm x 20.0 mm
WeightApproximately 243 g
Launch2025 Q2

Available from Omnixon Global. Submit an RFQ and our team will confirm configuration and availability for your order.

Technical Specifications

BrandKingston
CategoryStorage Systems
SKUKING-IKVP80ES7680G
Part NumberIKVP80ES/7680G
ConditionNew
Product LineIronKey Vault Privacy 80 External SSD
ModelIKVP80ES/7680G
Capacity7.68 TB
Form FactorExternal SSD (portable ruggedized enclosure)
InterfaceUSB 3.2 Gen 1 (USB Type-C connector)
Encryption StandardXTS-AES 256-bit hardware encryption
Security CertificationFIPS 197 certified
Authentication MethodOn-device color touchscreen PIN / passphrase entry (no host keyboard input required)
Password RolesAdmin and User multi-password support with independent credential management
Brute-Force ProtectionConfigurable lockout and cryptographic erase after consecutive failed authentication attempts
Sequential Read SpeedUp to 250 MB/s
Sequential Write SpeedUp to 250 MB/s
OS CompatibilityOS-independent (Windows, macOS, Linux, ChromeOS, Android — no driver required)
ConnectorUSB Type-C (USB Type-A adapter included)
Ingress Protection RatingIP57 (dust-tight, immersion-resistant to 1 m for 30 minutes)
Enclosure MaterialAnodized aluminum with internal epoxy fill for physical tamper resistance
Operating Temperature0°C to 45°C
Storage Temperature-20°C to 60°C
Power SupplyBus-powered via USB (no external power required)
DimensionsApproximately 122.5 mm x 84.2 mm x 20.0 mm
WeightApproximately 243 g
Launch2025 Q2

Frequently Asked Questions about Kingston IronKey Vault Privacy 80ES 7.68TB External SSD

What does the Kingston IronKey Vault Privacy 80ES 7.68TB External SSD do?

the Kingston IronKey Vault Privacy 80ES 7.68TB External SSD suits enterprise data-center storage tiers — all-flash arrays, hyperconverged storage pools (vSAN, Ceph), database backends, and high-throughput backup repositories. It is supported by major server platforms.

What are the headline specs of the Kingston IronKey Vault Privacy 80ES 7.68TB External SSD?

Key specifications for the Kingston IronKey Vault Privacy 80ES 7.68TB External SSD: new condition; manufacturer Kingston; product line IronKey Vault Privacy 80 External SSD; model IKVP80ES/7680G; capacity 7.68 TB; form factor External SSD (portable ruggedized enclosure); interface USB 3.2 Gen 1 (USB Type-C connector). Manufacturer part number IKVP80ES/7680G. For the full datasheet with electrical, environmental, and compliance details, contact our pre-sales engineering team.
