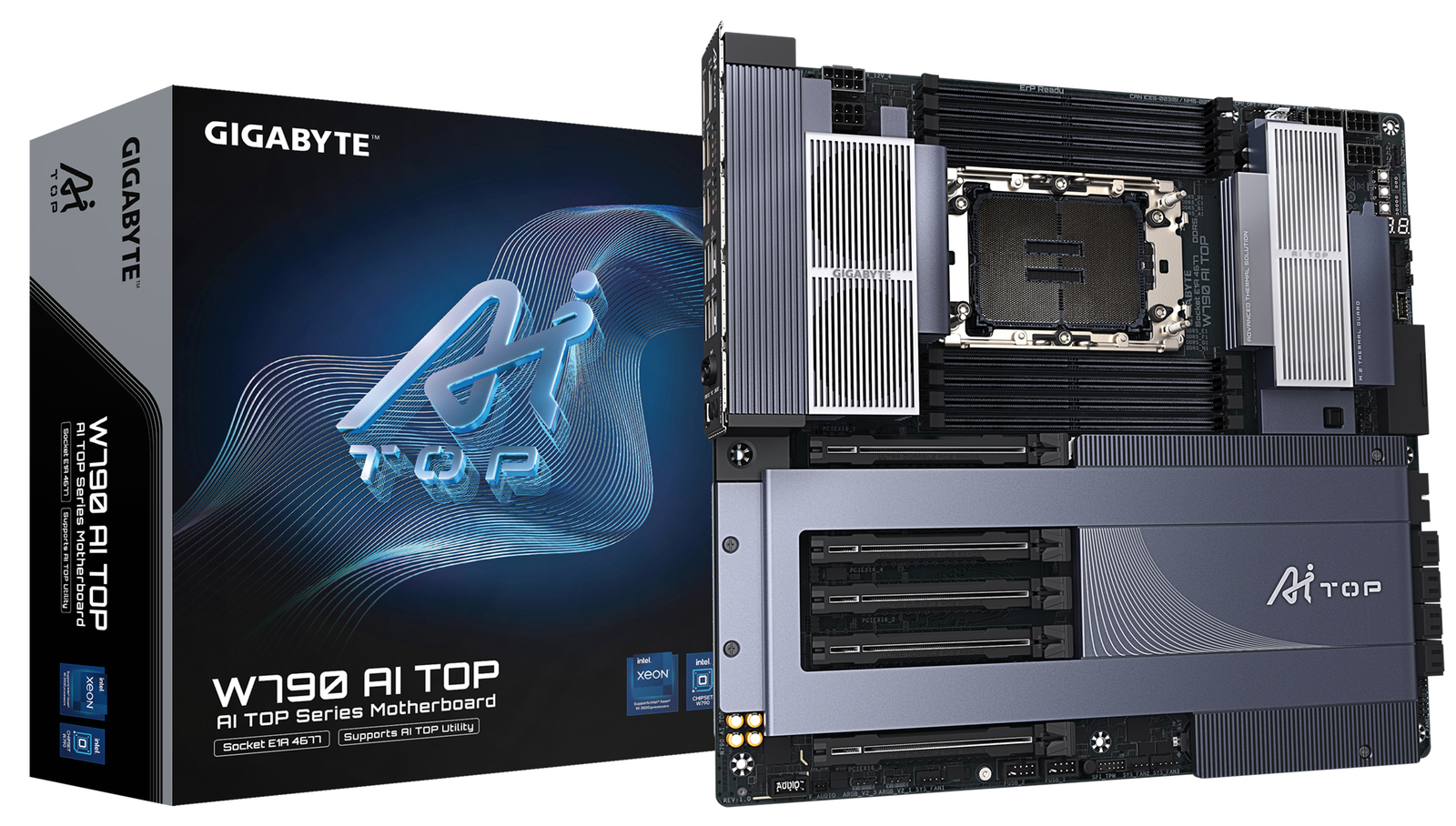

Gigabyte AI TOP W790 Workstation Motherboard

The Gigabyte AI TOP W790 is a high-density workstation motherboard built on the Intel W790 chipset, designed to support Intel Xeon W-2400 and W-3400 series processors in a platform optimized for demanding local AI inference and fine-tuning workflows. The board features an Extended ATX form factor with robust VRM design and supports DDR5 ECC RDIMM memory across eight channels, delivering the memory bandwidth and capacity headroom required for large-model training and fine-tuning tasks at the workstation tier.

A defining characteristic of the AI TOP variant is its multi-GPU configuration support, accommodating multiple PCIe 5.0 x16 slots to enable dense GPU compute arrays using professional accelerators such as NVIDIA RTX 6000 Ada or A-series cards. The board integrates high-bandwidth interconnect options and NVMe storage provisioning via PCIe 5.0 M.2 slots, ensuring that data pipelines feeding GPU compute remain unthrottled. IPMI-based out-of-band management via a dedicated BMC controller supports headless deployment and remote administration in enterprise lab and data-center-edge environments.

Targeted at organizations building on-premises AI infrastructure for data-sensitive fine-tuning pipelines, scientific simulation, and multi-GPU rendering, the W790 AI TOP represents Gigabyte's workstation-class response to growing demand for local large language model adaptation workflows. Its platform compatibility with Intel Xeon W scalable processors, combined with support for PCIe 5.0 topology and high-capacity DDR5 ECC memory, positions it as a foundation board for workstation nodes where data governance requirements preclude cloud-based GPU compute.

Ideal for

• Local LLM fine-tuning and supervised adaptation on proprietary enterprise datasets using multi-GPU PCIe 5.0 accelerator arrays
• On-premises AI inference server builds requiring ECC memory integrity and out-of-band IPMI management for unattended operation
• Multi-GPU professional visualization and real-time rendering workstations in media production or engineering simulation environments
• High-throughput scientific computing nodes leveraging Intel Xeon W-3400 series many-core processors with eight-channel DDR5 ECC memory
• Secure AI development labs where data residency and compliance obligations mandate fully local GPU compute infrastructure
• NVMe-dense workstation storage servers utilizing PCIe 5.0 M.2 slots for high-bandwidth dataset staging adjacent to GPU compute

Technical specifications

Available from Omnixon Global. Submit an RFQ and our team will confirm configuration and availability for your order.
