Eizo RadiForce MX217 21.5-inch Full HD Clinical Review Monitor
Brand: Eizo | Category: Peripherals & Displays
SKU: EIZO-MX217W | Part #: MX217-W | MPN: MX217-W
Contact for Pricing — Request a Quote

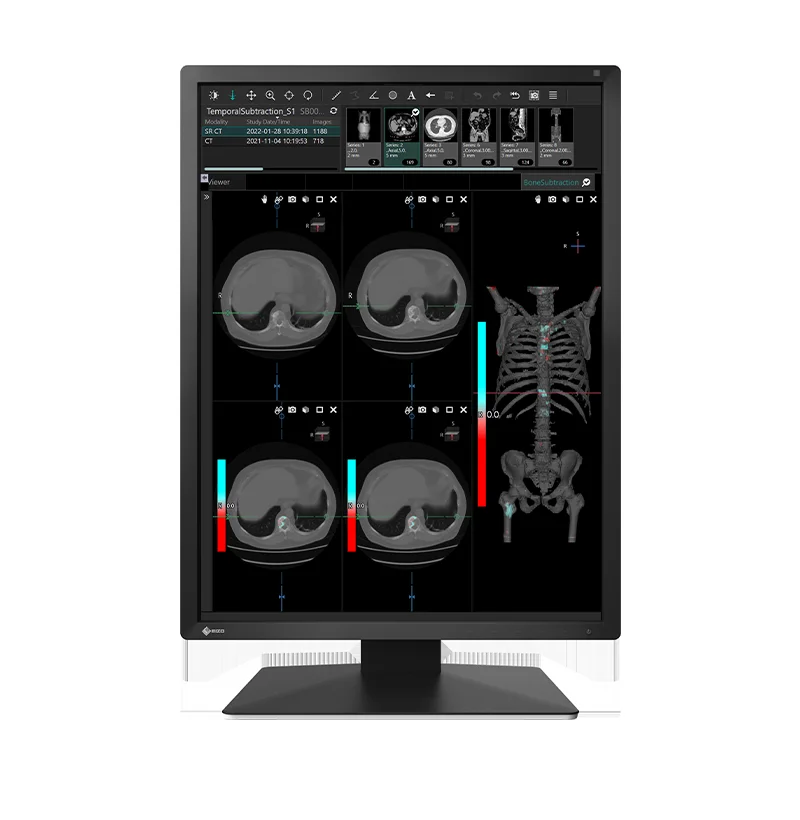

About the Eizo RadiForce MX217 21.5-inch Full HD Clinical Review Monitor
The Eizo RadiForce MX217 is a Full HD clinical review display engineered for demanding healthcare imaging workflows across hospital information systems and electronic medical record (EMR) environments. Featuring DICOM Part 14 compliance, the monitor delivers standardized grayscale rendering with precise luminance linearity and contrast resolution critical for diagnostic confidence in clinical review scenarios. The 21.5-inch Full HD (1920×1200) native resolution and 16:10 aspect ratio optimize workspace efficiency for multi-window EMR interfaces while maintaining pixel density sufficient for detailed image evaluation in radiology, pathology, and oncology review contexts.
The MX217 incorporates Eizo's ColorNavigator calibration engine, enabling display-specific color management and luminance stabilization across extended operational periods. The monitor supports 270 cd/m² peak luminance with ambient light sensing to preserve DICOM grayscale accuracy under varying clinical room conditions. Its ergonomic stand provides comprehensive mechanical adjustability (pivot, tilt, height, swivel), essential for prolonged clinical workstation use. The 6-bit + FRC (frame rate control) panel technology ensures smooth tonal gradation across the 0–255 grayscale range without banding artifacts that could obscure clinically significant details.
Ideal for
- Radiology reading rooms and hanging protocol workstations for primary diagnostic interpretation of CT, MRI, and digital radiography studies
- Pathology digital slide review and whole-slide imaging (WSI) secondary display in multidisplay diagnostic workstations
- Oncology tumor board presentation and treatment planning review with PACS integration across hospital networks
- Emergency department triage and clinical assessment stations requiring rapid EMR data visualization and image reference
- Ward-based clinical rounds and point-of-care imaging review on mobile or fixed cart-mounted workstations
- Quality assurance and image archival verification workflows in medical imaging informatics departments
Technical specifications
| Manufacturer | Eizo |
| Model | RadiForce MX217 |
| Display Type | LCD (Liquid Crystal Display) |
| Panel Technology | 6-bit + FRC (Frame Rate Control) IPS |
| Diagonal Screen Size | 21.5 inches |
| Native Resolution | 1920 × 1200 pixels (WUXGA) |
| Aspect Ratio | 16:10 |
| Pixel Pitch | 0.248 mm |
| Brightness (Peak Luminance) | 270 cd/m² |
| Contrast Ratio | 1000:1 (typical) |
| Color Gamut | sRGB ≥95% (CIE 1931) |
| Response Time | 5 ms (gray-to-gray typical) |
| Viewing Angles | 178° (horizontal and vertical) |
| DICOM Compliance | DICOM Part 14 (Grayscale Standard Display Function) |
| Grayscale Levels | 256 (8-bit + dithering) |
| Ambient Light Sensor | Yes (automatic luminance compensation) |
| Calibration Software | ColorNavigator (display-specific LUT calibration) |
| Input Connections | DisplayPort 1.2, DVI-D, D-Sub (analog) |
| USB Hub | 4 × USB 3.0 ports (downstream) |
| Stand Adjustments | Height (0–150 mm), Tilt (−5° to 25°), Swivel (±30°), Pivot (0° to 90°) |
| VESA Mounting | 100 × 100 mm |
| Power Consumption | 40 W (typical operating) |
| Dimensions (with stand) | 520 × 430–580 × 210 mm (W × H × D) |
| Weight | 4.5 kg |
Available from Omnixon Global. Submit an RFQ and our team will confirm configuration and availability for your order.
Technical Specifications
| Brand | Eizo |
| Category | Peripherals & Displays |
| SKU | EIZO-MX217W |
| Part Number | MX217-W |
| Condition | New |
| Model | RadiForce MX217 |
| Display Type | LCD (Liquid Crystal Display) |
| Panel Technology | 6-bit + FRC (Frame Rate Control) IPS |
| Diagonal Screen Size | 21.5 inches |
| Native Resolution | 1920 × 1200 pixels (WUXGA) |
| Aspect Ratio | 16:10 |
| Pixel Pitch | 0.248 mm |
| Brightness (Peak Luminance) | 270 cd/m² |
| Contrast Ratio | 1000:1 (typical) |
| Color Gamut | sRGB ≥95% (CIE 1931) |
| Response Time | 5 ms (gray-to-gray typical) |
| Viewing Angles | 178° (horizontal and vertical) |
| DICOM Compliance | DICOM Part 14 (Grayscale Standard Display Function) |
| Grayscale Levels | 256 (8-bit + dithering) |
| Ambient Light Sensor | Yes (automatic luminance compensation) |
| Calibration Software | ColorNavigator (display-specific LUT calibration) |
| Input Connections | DisplayPort 1.2, DVI-D, D-Sub (analog) |
| USB Hub | 4 × USB 3.0 ports (downstream) |
| Stand Adjustments | Height (0–150 mm), Tilt (−5° to 25°), Swivel (±30°), Pivot (0° to 90°) |
| VESA Mounting | 100 × 100 mm |
| Power Consumption | 40 W (typical operating) |
| Dimensions (with stand) | 520 × 430–580 × 210 mm (W × H × D) |
| Weight | 4.5 kg |
