Brand: APC | Category: Server Racks & Enclosures
SKU: EPDU2216S | Part #: EPDU2216S | MPN: EPDU2216S
Contact for Pricing — Request a Quote

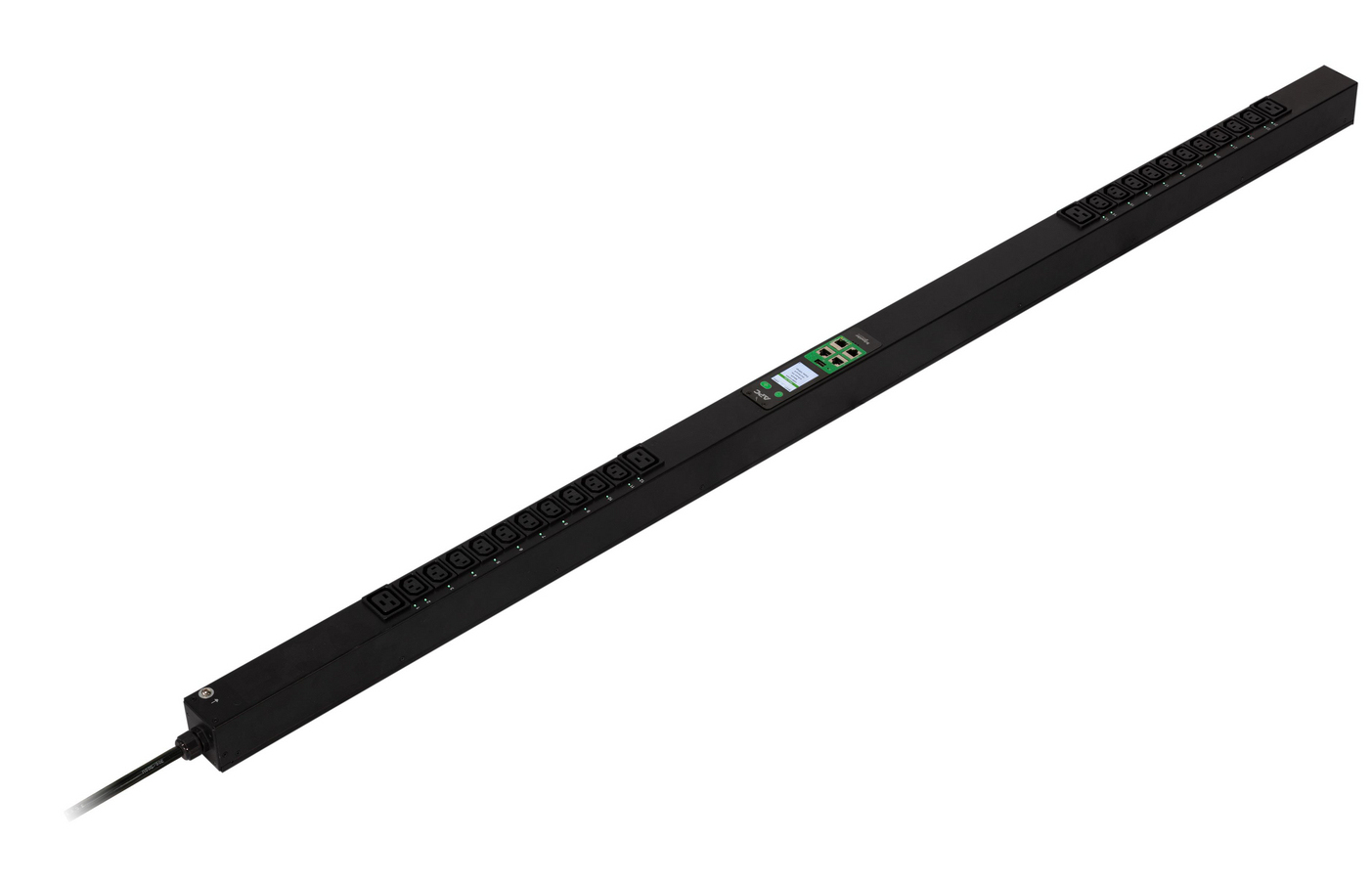

It is a high-capacity, switched power distribution unit (PDU) designed for efficient power management in data centers and network environments. It features a vertical mounting design, which saves valuable rack space. The PDU supports a load capacity of 11 kW and operates at 230V with a 16A input current. It includes 21 IEC 60320 C13 outlets and 3 IEC 60320 C19 outlets, providing flexibility for connecting various IT equipment. The unit is equipped with an IEC 60309 32A 3P+N+PE input plug and supports 3-phase power distribution. Additionally,it offers remote management capabilities, allowing users to monitor and control individual outlets for optimized power usage. The PDU is built with robust materials, ensuring durability and reliable performance in demanding environments.
| Brand | APC |
| Category | Server Racks & Enclosures |
| SKU | EPDU2216S |
| Part Number | EPDU2216S |
| Condition | New |
| AC outlet types | C13 coupler, C19 coupler |
| Power plug | C13 coupler |
| AC outlets quantity | 27 AC outlet(s) |
| Number of phases | 3 |
| Load capacity | 11040 VA |
| Output voltage | 230 V |
| Nominal output voltage | 230 V |
| Maximum current | 16 A |
| AC input frequency | 50/60 Hz |
| Nominal input voltage | 400 V |
| Product colour | Black |
| Mounting | Vertical |
| Rack capacity | 0U |
| Type | Three-phase |
| PDU types | Switched |
| Operating altitude | 0 - 3000 m |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -25 - 65 °C |
| Operating temperature (T-T) | -5 - 50 °C |
| Weight | 6.2 kg |
| Height | 1650 mm |
| Depth | 62 mm |
| Width | 56 mm |
| Compliance certificates | CE, UKCA |
