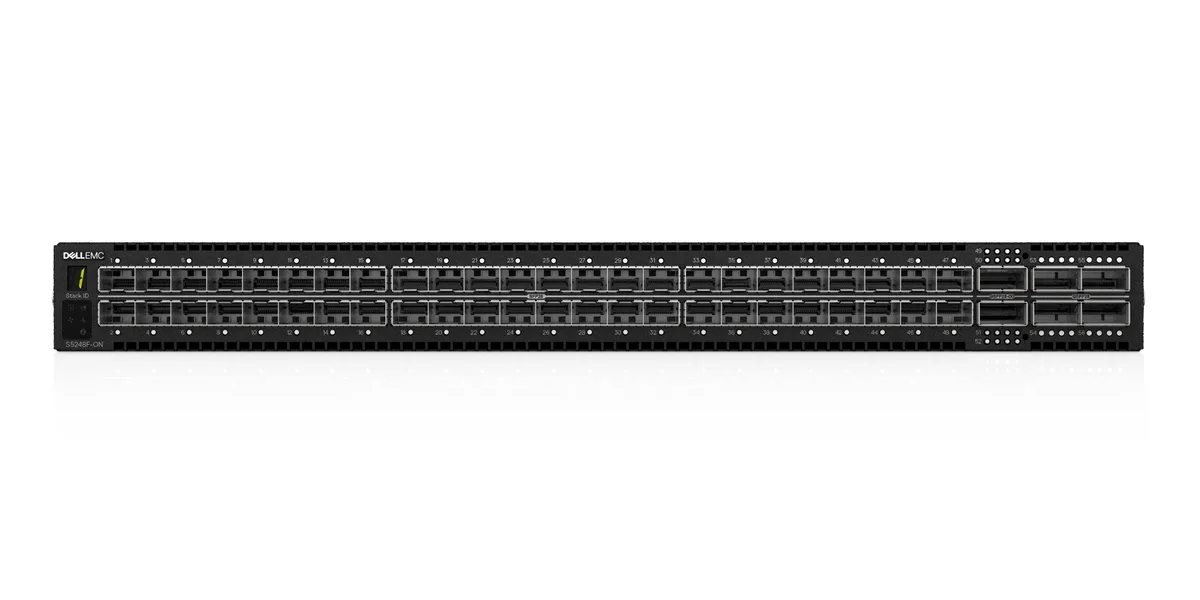

Dell PowerSwitch S5248F-ON
Brand: Dell | Category: Network Switches
SKU: DELL-POWERSWITCHS5248FON | Part #: PowerSwitch S5248F-ON | MPN: PowerSwitch S5248F-ON
Contact for Pricing — Request a Quote
About the Dell PowerSwitch S5248F-ON
The Dell EMC PowerSwitch S5248F-ON is a high-density 1U top-of-rack switch providing 48 ports of 25GbE (SFP28) server connectivity and 8 ports of 100GbE (QSFP28) uplinks, delivering a total switching capacity of 2.56Tbps. It is based on the Broadcom Tomahawk 2 merchant silicon ASIC and is designed for leaf-layer deployment in spine-leaf data center fabric architectures, making it one of the most widely deployed ToR switches in enterprise data centers running VMware NSX, open-source SDN, or traditional VXLAN/EVPN fabrics.
The S5248F-ON ships with Dell's SmartFabric OS10 (based on Debian Linux), which supports full open networking principles including native Linux shell access, Python scripting, Ansible and Terraform automation modules, and REST/gRPC APIs. This makes it equally usable by network engineers preferring CLI-based provisioning and DevOps teams automating infrastructure as code. It also supports SONiC (Software for Open Networking in the Cloud) for organizations standardizing on the open-source Microsoft-originated NOS.
In hyperconverged and VMware NSX deployments, the S5248F-ON is SmartFabric-ready, enabling zero-touch provisioning where the switch fabric self-configures based on server connectivity detected—dramatically reducing deployment time for VxRail and PowerEdge MX environments. Its 2-port 100GbE management plane and out-of-band management port ensure the control plane remains isolated from data plane traffic.
Ideal for
- Leaf switch in enterprise spine-leaf VXLAN/EVPN fabric
- Top-of-rack 25GbE server connectivity for PowerEdge hosts
- VMware NSX underlay fabric switch with SmartFabric automation
- HCI (VxRail or Nutanix) cluster ToR switch
- 25GbE iSCSI or NVMe/TCP storage network switch
- Open networking / SONiC standardization in cloud-style data centers
Technical specifications
| Manufacturer | Dell EMC |
| Form Factor | 1U Fixed |
| Front Ports | 48x 25GbE SFP28 |
| Uplink Ports | 8x 100GbE QSFP28 (breakout to 32x 25GbE capable) |
| Management Ports | 2x 100GbE QSFP28 (dedicated management) + 1x RJ45 OOB |
| Switching Capacity | 2.56Tbps |
| Forwarding Rate | 1.9Bpps |
| ASIC | Broadcom Tomahawk 2 |
| Packet Buffer | 32MB shared |
| Latency | ~600 nanoseconds (cut-through mode) |
| Operating System | Dell EMC SmartFabric OS10 (Debian Linux based); SONiC supported |
| Layer 3 Protocols | BGP, OSPF, ISIS, static routing, VXLAN/EVPN, BFD |
| Layer 2 Protocols | VLAN, MSTP, LACP, LLDP, VLT (Virtual Link Trunking) |
| SDN/Automation | REST API, gRPC, Ansible, Puppet, Chef, Terraform, Python |
| Deployment Mode | SmartFabric (zero-touch) or Standard (full manual control) |
| Power Supply | 2x redundant hot-swap PSUs (AC or DC) |
| Fans | Hot-swap, port-side exhaust or intake (specify at order) |
| Jumbo Frames | Up to 9216 bytes |
| Dimensions (HxWxD) | 43.6mm x 440mm x 430mm |
| Operating Temperature | 0°C to 45°C |
Available from Omnixon Global. Submit an RFQ and our team will confirm configuration and availability for your order.
Technical Specifications
| Brand | Dell |
| Category | Network Switches |
| SKU | DELL-POWERSWITCHS5248FON |
| Part Number | PowerSwitch S5248F-ON |
| Condition | New |
| Form Factor | 1U Fixed |
| Front Ports | 48x 25GbE SFP28 |
| Uplink Ports | 8x 100GbE QSFP28 (breakout to 32x 25GbE capable) |
| Management Ports | 2x 100GbE QSFP28 (dedicated management) + 1x RJ45 OOB |
| Switching Capacity | 2.56Tbps |
| Forwarding Rate | 1.9Bpps |
| ASIC | Broadcom Tomahawk 2 |
| Packet Buffer | 32MB shared |
| Latency | ~600 nanoseconds (cut-through mode) |
| Operating System | Dell EMC SmartFabric OS10 (Debian Linux based); SONiC supported |
| Layer 3 Protocols | BGP, OSPF, ISIS, static routing, VXLAN/EVPN, BFD |
| Layer 2 Protocols | VLAN, MSTP, LACP, LLDP, VLT (Virtual Link Trunking) |
| SDN/Automation | REST API, gRPC, Ansible, Puppet, Chef, Terraform, Python |
| Deployment Mode | SmartFabric (zero-touch) or Standard (full manual control) |
| Power Supply | 2x redundant hot-swap PSUs (AC or DC) |
| Fans | Hot-swap, port-side exhaust or intake (specify at order) |
| Jumbo Frames | Up to 9216 bytes |
| Dimensions (HxWxD) | 43.6mm x 440mm x 430mm |
| Operating Temperature | 0°C to 45°C |
Frequently Asked Questions about Dell PowerSwitch S5248F-ON
What does the Dell PowerSwitch S5248F-ON do?
The Dell PowerSwitch S5248F-ON is enterprise networking hardware for data-center, campus, and branch deployments. Common roles include core/distribution switching, server uplinks, top-of-rack fabric, and edge connectivity in mixed Cisco/Juniper/Arista environments.
What are the headline specs of the Dell PowerSwitch S5248F-ON?
Key specifications for the Dell PowerSwitch S5248F-ON: new condition; manufacturer Dell EMC; form factor 1U Fixed; front ports 48x 25GbE SFP28; uplink ports 8x 100GbE QSFP28 (breakout to 32x 25GbE capable); management ports 2x 100GbE QSFP28 (dedicated management) + 1x RJ45 OOB; switching capacity 2.56Tbps. Manufacturer part number PowerSwitch S5248F-ON. For the full datasheet with electrical, environmental, and compliance details, contact our pre-sales engineering team.
Is the Dell PowerSwitch S5248F-ON compatible with my infrastructure?
The Dell PowerSwitch S5248F-ON interoperates with standard switching protocols (LACP, MLAG/VPC, 802.1Q, OSPF/BGP). For specific cross-vendor scenarios — Cisco-to-Arista MLAG peering, fabric integration with Cumulus/SONiC, or migration from legacy Catalyst — our network engineers map a compatibility plan as part of the RFQ.
