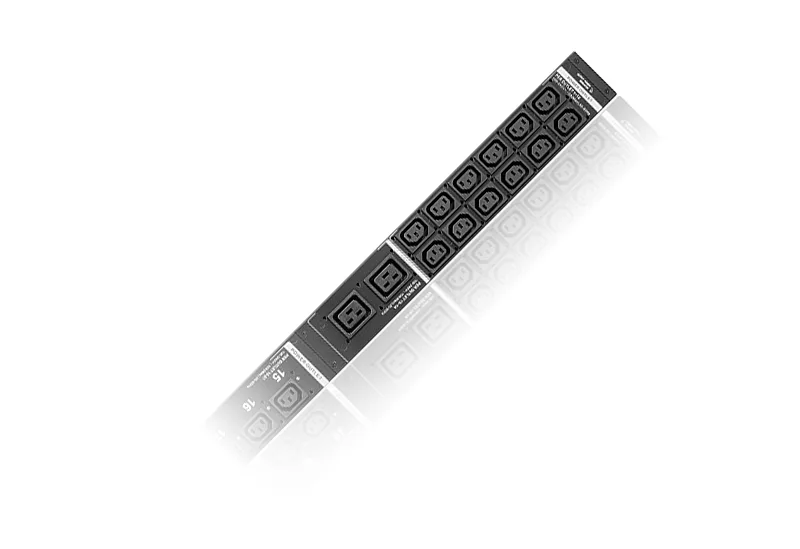

Aten 30A 3-Phase Metered & Switched eco PDU

The Aten PE9330G is a 3-phase, 30A metered and switched eco PDU engineered for high-density rack environments that demand granular power visibility and remote outlet-level control. Built around Aten's eco PDU architecture, it delivers per-outlet current metering alongside individual outlet switching, enabling IT teams to monitor real-time power consumption at the load level and remotely cycle or shut down individual devices without requiring physical access to the rack. The unit accepts a 3-phase input and distributes power across multiple IEC C13 and C19 outlets, making it well suited for mixed-load racks containing servers, storage arrays, and networking gear.

The PE9330G integrates a built-in web interface and supports SNMP v1/v2c/v3, allowing it to be managed through existing network management systems, including NMS platforms and DCIM tools. It supports user-defined thresholds for current, voltage, and power, with configurable alerts that notify administrators before circuits approach their rated limits. Environmental sensor ports enable the attachment of compatible temperature and humidity probes, extending the device's monitoring footprint beyond power alone. Sequential power-on delay settings help prevent inrush current surges during rack-wide restarts.

Targeted at data centers, colocation facilities, and enterprise server rooms requiring accountability and efficiency across distributed infrastructure, the PE9330G supports power usage effectiveness (PUE) improvement initiatives by providing the per-outlet data needed to identify idle or underutilized loads. Its 1U form factor and standard rack-mount design fit into any EIA-310 compliant rack, and its dual NIC support provides management network redundancy, reducing the risk of losing out-of-band access to the PDU during maintenance or network events.

Ideal for

• Remote outlet-level power cycling of hung servers or network appliances without dispatching on-site technicians to colocation or remote data center facilities
• Real-time per-outlet power consumption monitoring to identify underutilized or idle rack equipment as part of ongoing data center energy efficiency and PUE improvement programs
• Controlled sequential power-up sequencing across mixed server and storage racks to prevent tripping branch circuit breakers following a planned or unplanned power outage
• Integration with SNMP-based DCIM or NMS platforms to centralize PDU telemetry—current, voltage, and power readings—alongside compute and network infrastructure monitoring
• Temperature and humidity monitoring within high-density rack enclosures by attaching compatible environmental sensors to the PDU's sensor ports, consolidating environmental and power data in a single managed device
• Capacity planning and chargeback reporting in multi-tenant or departmental data center environments, leveraging per-outlet metering data to accurately attribute power consumption to specific workloads or business units

Technical specifications

Available from Omnixon Global. Submit an RFQ and our team will confirm configuration and availability for your order.
