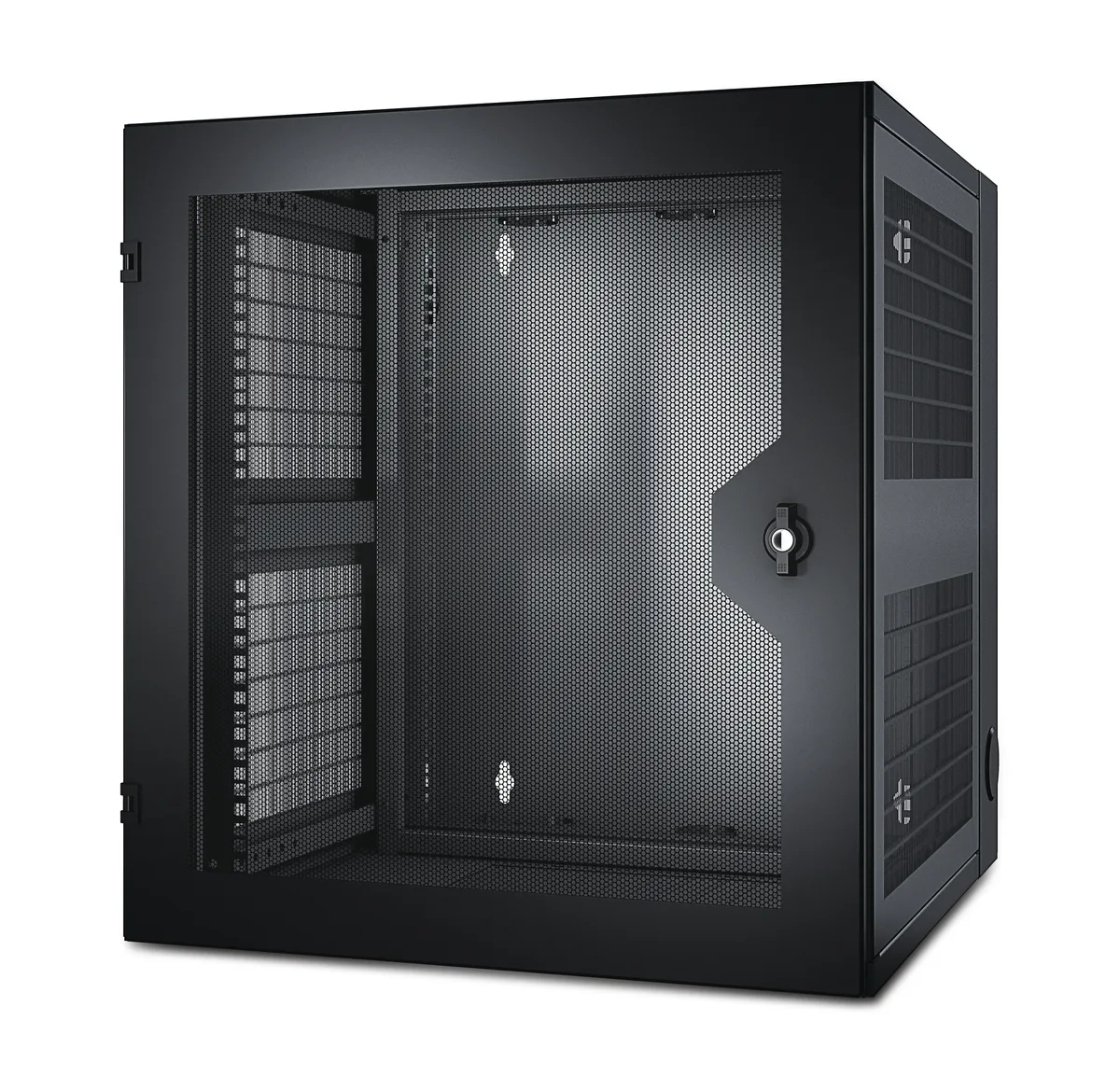

APC NetShelter WX 13U Wall-Mount Enclosure, Vented, Black AR100HD

APC NetShelter WX 13U Wall-Mount Enclosure, Vented, Black AR100HD

Brand: APC | Category: Server Racks & Enclosures

SKU: AR100HD | Part #: AR100HD | MPN: AR100HD

Contact for Pricing — Request a Quote

Request a Quote Contact Us

About the APC NetShelter WX 13U Wall-Mount Enclosure, Vented, Black AR100HD

(AR100HD) WX NETSHELTER 13U WALLMOUNT ENCLOSURE, FULLY VENTED, BLACK is an APC high-density server enclosure purpose-built for thermally demanding edge deployments. The fully vented design maximizes passive and active cooling efficiency, making it ideal for organizations consolidating power-dense infrastructure into wall-mounted cabinets.

Key Features:

  • 13U capacity with fully vented frame design for maximum airflow
  • Enhanced thermal management for high-density equipment configurations
  • Wall-mount form factor saves valuable floor space
  • Black powder-coated steel construction with reinforced frame
  • Integrated cable routing and equipment support rails
  • Lockable doors ensuring physical security

Ideal for:

  • High-density edge computing infrastructure
  • Thermal-intensive network switch environments
  • Branch office server consolidation with cooling constraints
  • Multi-tenant colocation and managed service provider deployments

Technical Specifications

BrandAPC
CategoryServer Racks & Enclosures
SKUAR100HD
Part NumberAR100HD
ConditionNew
CertificationEIA-310-D
PreassembledYes
Front door constructionPerforated
MaterialSteel
Product colourBlack
Maximum weight capacity90.91 kg
TypeWall mounted rack
Rack capacity13U
Dimensions (WxDxH)584 x 622 x 654 mm
Package dimensions (WxDxH)686 x 775 x 838 mm
Rack mountingYes
Mounting depth (max)48.3 cm
Weight42.7 kg
Height663 mm
Depth631 mm
Width584 mm
Size (imperial)48.3 cm (19")

Frequently Asked Questions about APC NetShelter WX 13U Wall-Mount Enclosure, Vented, Black AR100HD

What does the APC NetShelter WX 13U Wall-Mount Enclosure, Vented, Black AR100HD do?

The APC NetShelter WX 13U Wall-Mount Enclosure, Vented, Black AR100HD delivers conditioned, backed-up power for server rooms and data-center racks. Use cases include short-term ride-through during grid sag/spike events, graceful shutdown of critical compute, and runtime extension via external battery packs.

What are the headline specs of the APC NetShelter WX 13U Wall-Mount Enclosure, Vented, Black AR100HD?

Key specifications for the APC NetShelter WX 13U Wall-Mount Enclosure, Vented, Black AR100HD: new condition; certification EIA-310-D; preassembled Yes; front door construction Perforated; material Steel; product colour Black; maximum weight capacity 90.91 kg. Manufacturer part number AR100HD. For the full datasheet with electrical, environmental, and compliance details, contact our pre-sales engineering team.
