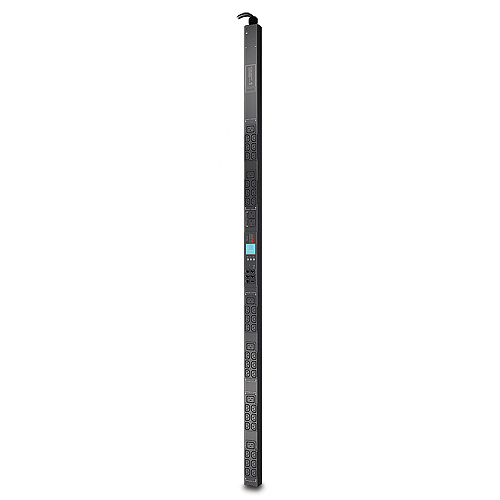

APC Rack PDU 2G Switched 11.5kW 3PH 230V 21-Outlet

The APC Rack PDU 2G Switched 11.5kW 3PH 230V 21-Outlet (AP8861) is a second-generation intelligent rack power distribution unit engineered for three-phase power environments operating at 230V. Built around a 32A three-phase input delivered via an IEC 309 3P+N+G connector, the unit distributes up to 11.5kW across 21 individually switched IEC 320 C13 outlets, enabling administrators to remotely power cycle hung devices, sequence startup loads, and shed non-critical outlets without physical access to the rack. Each outlet is independently controllable through the embedded network management interface, making the AP8861 a foundational component for lights-out data center operations.

The AP8861 integrates APC's second-generation network management card architecture, providing SNMP v1/v2c/v3, Telnet, SSH, HTTP, and HTTPS management access out of the box. Real-time metering at the unit level reports current (amps) and power consumption, supporting capacity planning and power budget enforcement across high-density compute, storage, and networking deployments. The unit also supports user-configurable current threshold alarms, enabling proactive alerts before circuits approach overload conditions. An integrated environmental monitoring port allows connection of APC's AP9335T or AP9335TH temperature and humidity sensors, extending the unit's visibility beyond electrical parameters.

Designed for mounting in standard 19-inch EIA-310 compliant racks, the AP8861 ships in a 1U zero-U vertical form factor suited for side-channel mounting to preserve valuable rack unit space for active equipment. The unit targets enterprise data centers, colocation facilities, network operations centers, and high-density server environments where granular remote power control, sequential load management, and real-time power visibility are operational requirements rather than optional features.

Ideal for

• Remote power cycling of frozen servers or network appliances in unmanned colocation or branch data centers, eliminating the need for on-site technician dispatch
• Sequential outlet power-on scheduling during data center startup events to prevent inrush current spikes from simultaneously energizing multiple high-draw servers
• Non-critical load shedding during planned maintenance windows or power capacity constraints by selectively disabling specific outlets without interrupting priority workloads
• Per-outlet power metering and threshold alerting to enforce rack-level power budgets in high-density HPC or virtualization clusters where oversubscription risk is elevated
• Integration with data center infrastructure management (DCIM) platforms via SNMP to aggregate real-time power consumption data across multiple racks for capacity and sustainability reporting
• Environmental monitoring in conjunction with APC temperature/humidity sensors to correlate thermal events with power load changes in tightly managed rack environments

Technical specifications
