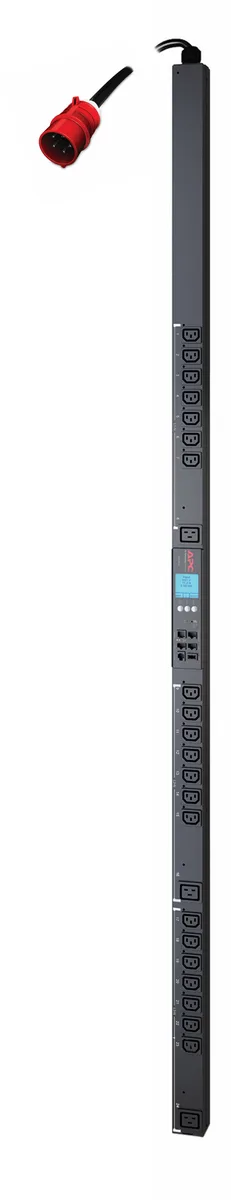

APC NetShelter Metered-by-Outlet with Switching Rack PDU 2G ZeroU 11.0kW 230V
Brand: APC | Category: Rack PDUs
SKU: AP8681 | Part #: AP8681 | MPN: AP8681
Contact for Pricing — Request a Quote
About the APC NetShelter Metered-by-Outlet with Switching Rack PDU 2G ZeroU 11.0kW 230V
The APC NetShelter Metered-by-Outlet with Switching Rack PDU 2G ZeroU (model AP8681) mounts vertically within standard EIA-310 19-inch racks without consuming horizontal rack space, making it ideal for facilities where every unit of vertical real estate carries cost and density pressure. This zero-U form factor allows IT teams to deploy intelligent power distribution alongside compute and storage infrastructure without sacrificing rack capacity for PDU footprint.
The AP8681 delivers 11.0 kW of managed power at 230V via a 3.0 m IEC 309 32A 2P+E input cord, distributing across 24 outlets—20 IEC 320 C13 and 4 IEC 320 C19—each with independent remote on/off switching and real-time per-outlet metering of current, voltage, and power consumption in kilowatts. Network engineers and IT infrastructure teams rely on this second-generation APC platform for granular power visibility and control, enabled by 10/100 Ethernet connectivity supporting SNMPv1, SNMPv3, HTTP, HTTPS, Modbus TCP, IPv4, and IPv6 protocols. The integrated LCD display with navigation buttons provides immediate visibility into outlet-level and system metrics without requiring network access, while the 50/60 Hz input frequency compatibility spans global utility standards. Operating reliably across 0 °C to 45 °C and 0 to 95% non-condensing relative humidity, the AP8681 handles demanding data center and edge deployment environments.
Storage architects, data center operators, and IT procurement teams select APC metered-by-outlet PDUs when per-device power accountability, remote switching capability, and space efficiency converge as non-negotiable requirements. Contact Omnixon Global today to request a quotation for the APC NetShelter Metered-by-Outlet with Switching Rack PDU 2G ZeroU 11.0kW 230V, part number AP8681, and discover how this solution fits your enterprise power infrastructure roadmap.
Technical Specifications
| Brand | APC |
| Category | Rack PDUs |
| SKU | AP8681 |
| Part Number | AP8681 |
| Condition | New |
| Form Factor | 0U Vertical |
| Manufacturer Part Number | AP8681 |
| PDU Type | Metered by Outlet with Switching, 2nd Generation (2G) |
| Form Factor | Zero-U (vertical rack mount) |
| Input Voltage | 230V |
| Input Power | 11.0 kW |
| Input Current | 32A |
| Input Frequency | 50/60 Hz |
| Input Connection | IEC 309 32A 2P+E (230V) |
| Input Cord Length | 3.0 m |
| Total Number of Outlets | 24 |
| Outlet Types | 20 x IEC 320 C13, 4 x IEC 320 C19 |
| Outlet Switching | Per-outlet remote on/off switching |
| Outlet Metering | Per-outlet current, voltage, and power (kW) metering |
| Network Interface | 10/100 Ethernet (RJ-45) |
| Supported Protocols | SNMPv1, SNMPv3, HTTP, HTTPS, Modbus TCP, IPv4, IPv6 |
| Local Display | LCD with navigation buttons for real-time current, voltage, and power |
| Operating Temperature | 0 °C to 45 °C |
| Operating Relative Humidity | 0 to 95% non-condensing |
| Mounting Orientation | Vertical (zero-U), compatible with standard EIA-310 19-inch racks |
| Management Software Compatibility | APC EcoStruxure IT, PowerChute Network Shutdown |
| Dimensions (H x W x D) | 1623 mm x 56 mm x 80 mm (approx.) |
| Net Weight | 8.4 kg |
Frequently Asked Questions about APC NetShelter Metered-by-Outlet with Switching Rack PDU 2G ZeroU 11.0kW 230V
What does the APC Rack PDU 2G Metered ZeroU 20A 120V (AP8681) do?
The APC Rack PDU 2G Metered ZeroU 20A 120V (AP8681) delivers conditioned, backed-up power for server rooms and data-center racks. Use cases include short-term ride-through during grid sag/spike events, graceful shutdown of critical compute, and runtime extension via external battery packs.
What are the headline specs of the APC Rack PDU 2G Metered ZeroU 20A 120V (AP8681)?
Key specifications for the APC Rack PDU 2G Metered ZeroU 20A 120V (AP8681): new condition; brand APC; series Rack PDU 2G; model AP8681; type Metered; input 20A / 120V (L5-20P); outlets 24x 5-20R. Manufacturer part number AP8681. For the full datasheet with electrical, environmental, and compliance details, contact our pre-sales engineering team.
