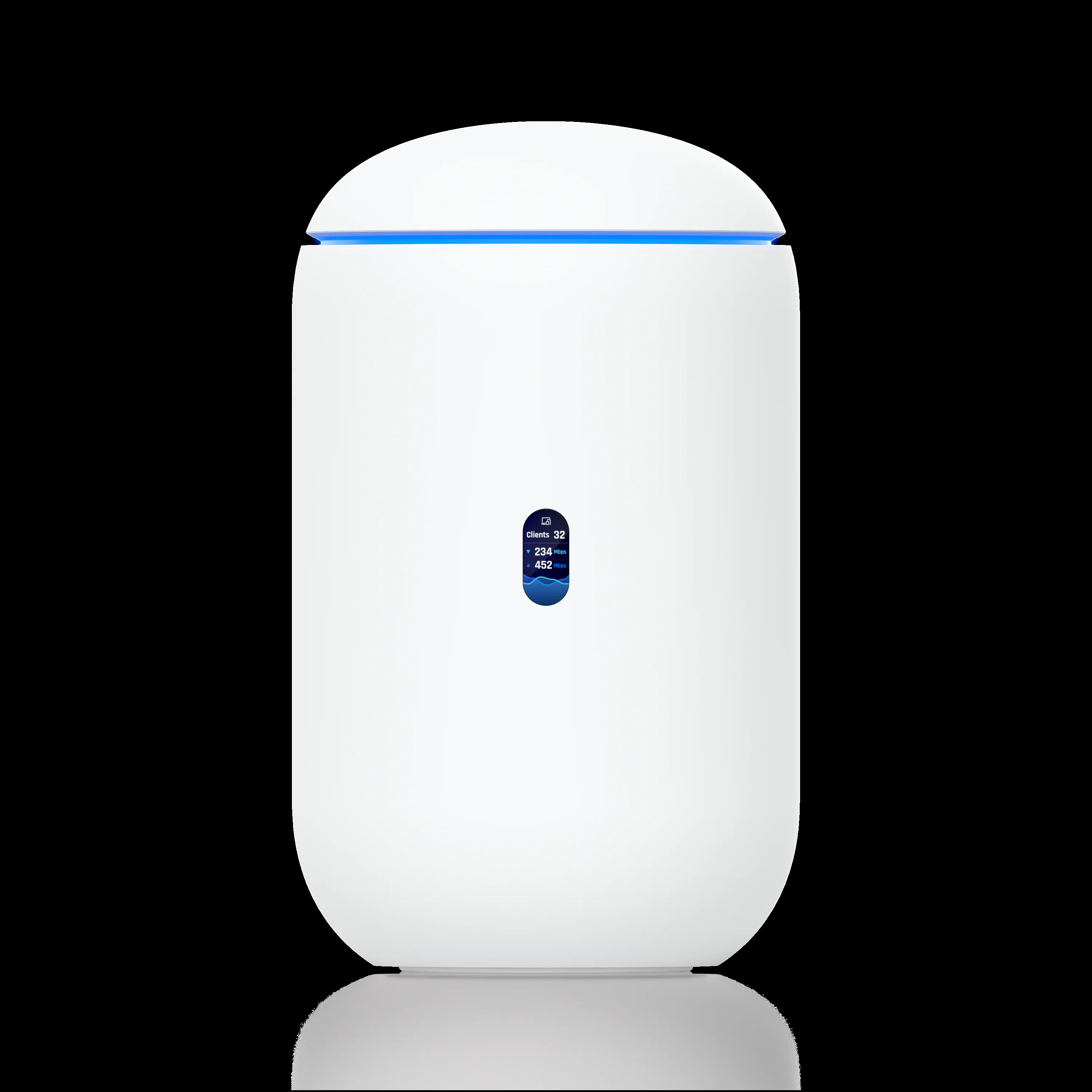

Ubiquiti UniFi Dream Router 7
Brand: Ubiquiti | Category: Wireless Access Points
SKU: UBIQ-UDR7 | Part #: UDR7 | MPN: UDR7
Contact for Pricing — Request a Quote
About the Ubiquiti UniFi Dream Router 7
The Ubiquiti UniFi Dream Router 7 from Ubiquiti is enterprise-grade Wireless Access Points hardware built for data centers. WiFi 7 all-in-one gateway and UniFi controller combining tri-band 802.11be wireless, multi-gigabit routing, and integrated network management in a single compact device. Available in brand new condition. Ubiquiti wireless access points products are trusted by enterprises and data centers worldwide. Available from Omnixon Global. Contact our sales team to request a quote.
Technical Specifications
| Brand | Ubiquiti |
| Category | Wireless Access Points |
| SKU | UBIQ-UDR7 |
| Part Number | UDR7 |
| Condition | New |
| Product Line | UniFi Dream Router 7 |
| Model | UDR7 |
| Wireless Standard | IEEE 802.11be (WiFi 7), backward compatible with 802.11a/b/g/n/ac/ax |
| Radio Bands | Tri-band: 2.4 GHz, 5 GHz, 6 GHz |
| Maximum Aggregate Wireless Throughput | Up to 9.3 Gbps combined (2.4 GHz + 5 GHz + 6 GHz) |
| 6 GHz Band Maximum PHY Rate | Up to 5.8 Gbps (320 MHz channel, 4096-QAM, 4×4 MIMO) |
| 5 GHz Band Maximum PHY Rate | Up to 2.9 Gbps (160 MHz channel, 4096-QAM, 4×4 MIMO) |
| 2.4 GHz Band Maximum PHY Rate | Up to 688 Mbps (40 MHz channel, 1024-QAM, 4×4 MIMO) |
| MIMO Configuration | 4×4 MU-MIMO per band |
| Advanced Wireless Features | Multi-Link Operation (MLO), OFDMA (uplink and downlink), Target Wake Time (TWT), BSS Coloring |
| WAN Ports | 1× 2.5 GbE RJ-45 (primary WAN); 1× 2.5 GbE RJ-45 (secondary WAN / LAN configurable) |
| LAN Ports | 4× Gigabit Ethernet RJ-45 (PoE 802.3af/at on select ports) |
| PoE Output Budget | Up to 30 W total across PoE-capable LAN ports |
| Routing Throughput (Hardware Accelerated) | Up to 3.5 Gbps IDS/IPS-enabled; up to 9 Gbps with hardware NAT offload |
| Controller Software | UniFi OS with UniFi Network Application (self-hosted, on-device; supports remote management via UniFi Site Manager) |
| Security Features | Stateful firewall, IDS/IPS (Suricata-based), Deep Packet Inspection, Threat Management, VPN (WireGuard, OpenVPN, IPsec site-to-site) |
| VLAN Support | 802.1Q VLAN tagging, multiple SSIDs per VLAN, guest network isolation |
| Maximum Concurrent Clients | Up to 300 wireless clients |
| Processor | Quad-core ARM Cortex-A55 (or equivalent high-performance SoC) |
| RAM / Storage | 4 GB DDR4 RAM / 16 GB eMMC Flash |
| Mounting Options | Desktop, wall-mount (hardware included) |
| Power Input | AC 100–240 V, 50/60 Hz (integrated power supply); max power consumption 35 W |
