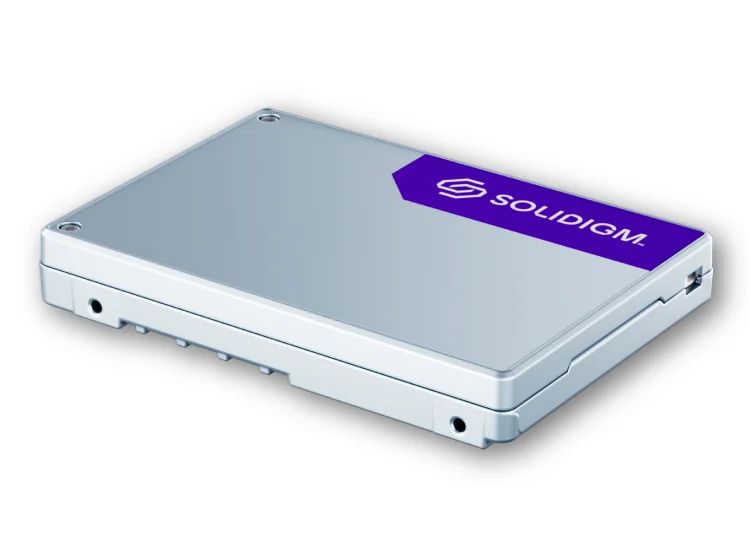

Solidigm / Intel SSDPF2KX153T1N1 D5 / D7 Series 15.36TB PCIe NVMe SSD
Brand: Solidigm | Category: Enterprise SSDs
SKU: SOL-SSDPF2KX153T1N1 | Part #: SSDPF2KX153T1N1 | MPN: SSDPF2KX153T1N1
Contact for Pricing — Request a Quote
About the Solidigm / Intel SSDPF2KX153T1N1 D5 / D7 Series 15.36TB PCIe NVMe SSD
The Solidigm / Intel SSDPF2KX153T1N1 D5 / D7 Series 15.36TB PCIe NVMe SSD from Solidigm is enterprise-grade Enterprise SSDs hardware built for data centers. It features 15.36TB capacity, PCIe form factor, NVMe interface. The Solidigm D5-P5336 series, represented by part number SSDPF2KX153T1N1, delivers 15.36TB of QLC NAND-based NVMe storage in a U.2 form factor designed for read-intensive and mixed-use enterprise workloads. Built on Solidigm's fourth-generation QLC 3D NAND technology and connected via a PCIe 4.0 x4 interface, this drive provides high sequential throughput and substantial capacity density, enabling data centers to consolidate storage footprints without sacrificing I/O performa Available in brand new condition. Solidigm enterprise ssds products are trusted by enterprises and data centers worldwide. Available from Omnixon Global. Contact our sales team to request a quote.
Technical Specifications
| Brand | Solidigm |
| Category | Enterprise SSDs |
| SKU | SOL-SSDPF2KX153T1N1 |
| Part Number | SSDPF2KX153T1N1 |
| Condition | New |
| Capacity | 15.36TB |
| Form Factor | PCIe |
| Interface | NVMe |
| Manufacturer Part Number | SSDPF2KX153T1N1 |
| Product Series | D5-P5336 |
| Raw Capacity | 15.36 TB |
| Form Factor | U.2 2.5-inch, 15mm (SFF-8639) |
| Interface | PCIe 4.0 x4 |
| Protocol | NVMe 1.4 |
| NAND Technology | 4th Generation QLC 3D NAND |
| Sequential Read (up to) | 7,000 MB/s |
| Sequential Write (up to) | 3,200 MB/s |
| Random Read IOPS (4K, up to) | 1,500,000 IOPS |
| Random Write IOPS (4K, up to) | 200,000 IOPS |
| Power Loss Protection | Yes (capacitor-based) |
| Encryption | AES 256-bit, TCG Opal 2.0 |
| End-to-End Data Protection | T10 DIF/DIX (Protection Information) |
| Multiple Namespace Support | Yes |
| Operating Temperature | 0°C to 70°C |
| Power Consumption (Active Read) | Approximately 25 W |
| DWPD (Drive Writes Per Day) | 0.58 over 5 years |
| MTBF | 2,000,000 hours |
Frequently Asked Questions about Solidigm / Intel SSDPF2KX153T1N1 D5 / D7 Series 15.36TB PCIe NVMe SSD
What does the Solidigm / Intel SSDPF2KX153T1N1 D5 / D7 Series 15.36TB PCIe NVMe SSD do?
At 15.36TB, the Solidigm / Intel SSDPF2KX153T1N1 D5 / D7 Series 15.36TB PCIe NVMe SSD suits enterprise data-center storage tiers — all-flash arrays, hyperconverged storage pools (vSAN, Ceph), database backends, and high-throughput backup repositories. The NVMe interface is supported by major server platforms.
What are the headline specs of the Solidigm / Intel SSDPF2KX153T1N1 D5 / D7 Series 15.36TB PCIe NVMe SSD?
Key specifications for the Solidigm / Intel SSDPF2KX153T1N1 D5 / D7 Series 15.36TB PCIe NVMe SSD: capacity 15.36TB; form factor PCIe NVMe; interface NVMe; new condition; capacity 15.36TB; series D5 / D7 Series; interface / form factor PCIe NVMe; drive class Enterprise SSD; use case Servers, storage arrays, virtualization, and cloud infrastructure. Manufacturer part number SSDPF2KX153T1N1. For the full datasheet with electrical, environmental, and compliance details, contact our pre-sales engineering team.
Is the Solidigm / Intel SSDPF2KX153T1N1 D5 / D7 Series 15.36TB PCIe NVMe SSD compatible with my infrastructure?
The Solidigm / Intel SSDPF2KX153T1N1 D5 / D7 Series 15.36TB PCIe NVMe SSD uses a NVMe interface in a PCIe NVMe form factor. It's compatible with server platforms that expose this interface — typical deployments include Dell PowerEdge, HPE ProLiant, Lenovo ThinkSystem, and Supermicro SuperServer chassis. For specific vendor part-number compatibility, our team validates against the manufacturer support matrix.
