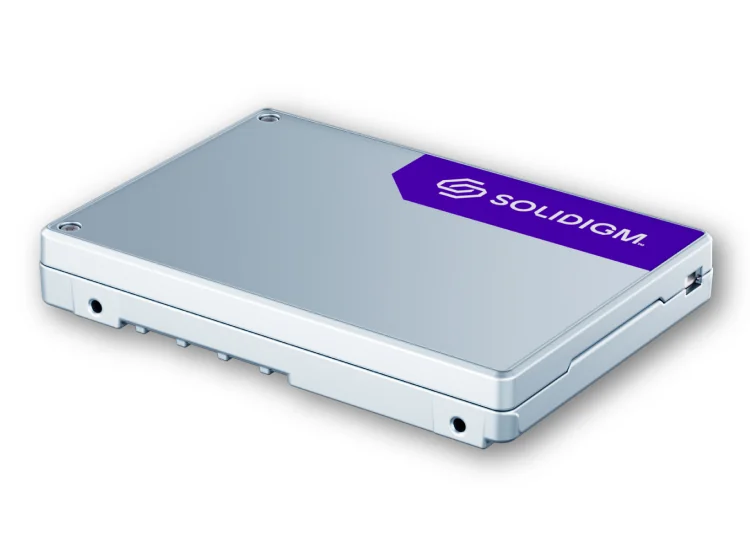

Solidigm / Intel SSDPF2KX076T1N1 D5 / D7 Series 7.68TB PCIe NVMe SSD
Brand: Solidigm | Category: Enterprise SSDs
SKU: SOL-SSDPF2KX076T1N1 | Part #: SSDPF2KX076T1N1 | MPN: SSDPF2KX076T1N1
Contact for Pricing — Request a Quote
About the Solidigm / Intel SSDPF2KX076T1N1 D5 / D7 Series 7.68TB PCIe NVMe SSD
The Solidigm / Intel SSDPF2KX076T1N1 D5 / D7 Series 7.68TB PCIe NVMe SSD from Solidigm is enterprise-grade Enterprise SSDs hardware built for data centers. It features 7.68TB capacity, PCIe form factor, NVMe interface. The Solidigm D5-P5336 series, represented by part number SSDPF2KX076T1N1, delivers 7.68TB of enterprise-grade NVMe storage on a PCIe 4.0 x4 interface using the U.2 2.5-inch form factor. Built on Solidigm's QLC (Quad-Level Cell) NAND technology and paired with a high-performance NVMe controller, this drive is engineered to sustain the demanding throughput and latency profiles required in modern hyperscale and enterprise data center environments. The D5 series targets read-inte Available in brand new condition. Solidigm enterprise ssds products are trusted by enterprises and data centers worldwide. Available from Omnixon Global. Contact our sales team to request a quote.
Technical Specifications
| Brand | Solidigm |
| Category | Enterprise SSDs |
| SKU | SOL-SSDPF2KX076T1N1 |
| Part Number | SSDPF2KX076T1N1 |
| Condition | New |
| Capacity | 7.68TB |
| Form Factor | PCIe |
| Interface | NVMe |
| Manufacturer Part Number | SSDPF2KX076T1N1 |
| Series | D5-P5336 |
| Capacity | 7.68 TB |
| Form Factor | 2.5-inch U.2 (SFF-8639) |
| Interface | PCIe 4.0 x4 NVMe |
| NVMe Specification | NVMe 1.4 |
| NAND Technology | QLC (Quad-Level Cell) 3D NAND |
| Sequential Read | Up to 7,000 MB/s |
| Sequential Write | Up to 3,800 MB/s |
| Random Read IOPS | Up to 1,500,000 IOPS |
| Random Write IOPS | Up to 250,000 IOPS |
| Endurance (DWPD) | 0.58 DWPD (5-year) |
| Total Bytes Written (TBW) | 8,409 TBW |
| Power Consumption (Active Read) | Up to 25 W |
| Hardware Encryption | AES 256-bit |
| Power Loss Protection | Yes (capacitor-based data protection) |
| End-to-End Data Protection | Yes (T10 DIF/DIX) |
| Operating Temperature | 0°C to 70°C |
| Mean Time Between Failures (MTBF) | 2,000,000 hours |
| Dimensions | 100.45 mm x 69.85 mm x 15.0 mm |
Frequently Asked Questions about Solidigm / Intel SSDPF2KX076T1N1 D5 / D7 Series 7.68TB PCIe NVMe SSD
What does the Solidigm / Intel SSDPF2KX076T1N1 D5 / D7 Series 7.68TB PCIe NVMe SSD do?
At 7.68TB, the Solidigm / Intel SSDPF2KX076T1N1 D5 / D7 Series 7.68TB PCIe NVMe SSD suits enterprise data-center storage tiers — all-flash arrays, hyperconverged storage pools (vSAN, Ceph), database backends, and high-throughput backup repositories. The NVMe interface is supported by major server platforms.
What are the headline specs of the Solidigm / Intel SSDPF2KX076T1N1 D5 / D7 Series 7.68TB PCIe NVMe SSD?
Key specifications for the Solidigm / Intel SSDPF2KX076T1N1 D5 / D7 Series 7.68TB PCIe NVMe SSD: capacity 7.68TB; form factor PCIe NVMe; interface NVMe; new condition; capacity 7.68TB; series D5 / D7 Series; interface / form factor PCIe NVMe; drive class Enterprise SSD; use case Servers, storage arrays, virtualization, and cloud infrastructure. Manufacturer part number SSDPF2KX076T1N1. For the full datasheet with electrical, environmental, and compliance details, contact our pre-sales engineering team.
Is the Solidigm / Intel SSDPF2KX076T1N1 D5 / D7 Series 7.68TB PCIe NVMe SSD compatible with my infrastructure?
The Solidigm / Intel SSDPF2KX076T1N1 D5 / D7 Series 7.68TB PCIe NVMe SSD uses a NVMe interface in a PCIe NVMe form factor. It's compatible with server platforms that expose this interface — typical deployments include Dell PowerEdge, HPE ProLiant, Lenovo ThinkSystem, and Supermicro SuperServer chassis. For specific vendor part-number compatibility, our team validates against the manufacturer support matrix.
