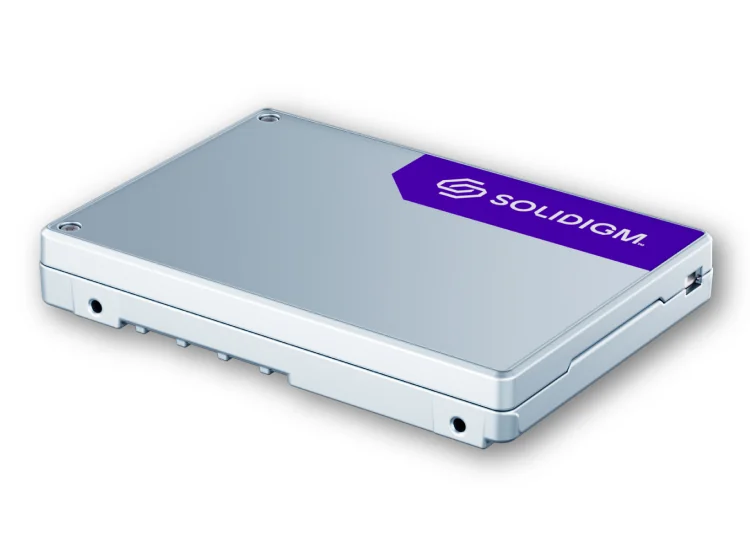

Solidigm / Intel SSDPEXKX153T801 D5 / D7 Series 15.36TB PCIe NVMe SSD
Brand: Solidigm | Category: Enterprise SSDs
SKU: SOL-SSDPEXKX153T801 | Part #: SSDPEXKX153T801 | MPN: SSDPEXKX153T801
Contact for Pricing — Request a Quote
About the Solidigm / Intel SSDPEXKX153T801 D5 / D7 Series 15.36TB PCIe NVMe SSD
The Solidigm / Intel SSDPEXKX153T801 D5 / D7 Series 15.36TB PCIe NVMe SSD from Solidigm is enterprise-grade Enterprise SSDs hardware built for data centers. It features 15.36TB capacity, PCIe form factor, NVMe interface. The Solidigm D5-P5336 / D7-series SSDPEXKX153T801 is a 15.36TB PCIe Gen 4 NVMe enterprise SSD engineered for read-intensive and mixed-use data center workloads. Built on Solidigm's advanced QLC NAND technology and paired with a high-performance NVMe controller, this drive delivers sustained sequential read throughput and consistent low-latency access at scale, making it suitable for deployments where capacity density and cost-per-gigabyte are primary design considerations alo Available in brand new condition. Solidigm enterprise ssds products are trusted by enterprises and data centers worldwide. Available from Omnixon Global. Contact our sales team to request a quote.
Technical Specifications
| Brand | Solidigm |
| Category | Enterprise SSDs |
| SKU | SOL-SSDPEXKX153T801 |
| Part Number | SSDPEXKX153T801 |
| Condition | New |
| Capacity | 15.36TB |
| Form Factor | PCIe |
| Interface | NVMe |
| Manufacturer Part Number | SSDPEXKX153T801 |
| Series | D5-P5336 |
| Capacity | 15.36 TB |
| Form Factor | U.2 2.5-inch, 15mm |
| Interface | PCIe 4.0 x4, NVMe |
| NVMe Specification | NVMe 1.4 |
| NAND Technology | QLC (Quad-Level Cell) 3D NAND |
| Sequential Read | Up to 7,000 MB/s |
| Sequential Write | Up to 3,400 MB/s |
| Random Read (4K) | Up to 1,500,000 IOPS |
| Random Write (4K) | Up to 200,000 IOPS |
| Power – Active Read | Up to 25 W |
| Power – Idle | Approximately 9 W |
| Endurance (TBW) | 2,800 TBW |
| Drive Writes Per Day (DWPD) | 0.1 DWPD (over 5-year rated life) |
| Encryption | AES 256-bit, TCG Opal 2.0, TCG Enterprise |
| Data Protection | End-to-end data protection (T10 DIF/DIX compatible), Power-Loss Protection (PLP) |
| Operating Temperature | 0°C to 70°C |
| Mean Time Between Failures (MTBF) | 2,000,000 hours |
| Connector | SFF-8639 (U.2) |
| Dimensions | 100.45 mm x 69.85 mm x 15 mm |
Frequently Asked Questions about Solidigm / Intel SSDPEXKX153T801 D5 / D7 Series 15.36TB PCIe NVMe SSD
What does the Solidigm / Intel SSDPEXKX153T801 D5 / D7 Series 15.36TB PCIe NVMe SSD do?
At 15.36TB, the Solidigm / Intel SSDPEXKX153T801 D5 / D7 Series 15.36TB PCIe NVMe SSD suits enterprise data-center storage tiers — all-flash arrays, hyperconverged storage pools (vSAN, Ceph), database backends, and high-throughput backup repositories. The NVMe interface is supported by major server platforms.
What are the headline specs of the Solidigm / Intel SSDPEXKX153T801 D5 / D7 Series 15.36TB PCIe NVMe SSD?
Key specifications for the Solidigm / Intel SSDPEXKX153T801 D5 / D7 Series 15.36TB PCIe NVMe SSD: capacity 15.36TB; form factor PCIe NVMe; interface NVMe; new condition; capacity 15.36TB; series D5 / D7 Series; interface / form factor PCIe NVMe; drive class Enterprise SSD; use case Servers, storage arrays, virtualization, and cloud infrastructure. Manufacturer part number SSDPEXKX153T801. For the full datasheet with electrical, environmental, and compliance details, contact our pre-sales engineering team.
Is the Solidigm / Intel SSDPEXKX153T801 D5 / D7 Series 15.36TB PCIe NVMe SSD compatible with my infrastructure?
The Solidigm / Intel SSDPEXKX153T801 D5 / D7 Series 15.36TB PCIe NVMe SSD uses a NVMe interface in a PCIe NVMe form factor. It's compatible with server platforms that expose this interface — typical deployments include Dell PowerEdge, HPE ProLiant, Lenovo ThinkSystem, and Supermicro SuperServer chassis. For specific vendor part-number compatibility, our team validates against the manufacturer support matrix.
