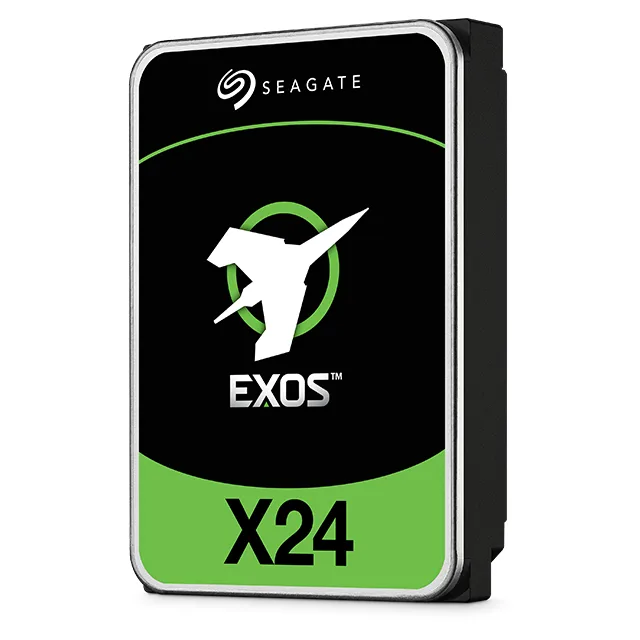

Seagate Exos X24 24TB Enterprise SAS Hard Drive
Brand: Seagate | Category: Enterprise HDDs
SKU: SEAG-ST24000NM007H | Part #: ST24000NM007H | MPN: ST24000NM007H
Contact for Pricing — Request a Quote
About the Seagate Exos X24 24TB Enterprise SAS Hard Drive
The Seagate Exos X24 24TB Enterprise SAS Hard Drive from Seagate is enterprise-grade Enterprise HDDs hardware built for data centers. 24TB dual-port 12Gb/s SAS enterprise hard drive engineered for maximum density, continuous availability, and mission-critical reliability in large-scale storage infrastructures. Available in brand new condition. Seagate enterprise hdds products are trusted by enterprises and data centers worldwide. Available from Omnixon Global. Contact our sales team to request a quote.
Technical Specifications
| Brand | Seagate |
| Category | Enterprise HDDs |
| SKU | SEAG-ST24000NM007H |
| Part Number | ST24000NM007H |
| Condition | New |
| Product Family | Exos X24 |
| Formatted Capacity | 24 TB |
| Interface | 12Gb/s SAS (Serial Attached SCSI) |
| SAS Ports | Dual port (2 × 12Gb/s SAS) |
| Spindle Speed | 7,200 RPM |
| Sustained Transfer Rate (OD) | Up to 285 MB/s |
| Cache (Multi-segmented Buffer) | 256 MB |
| Recording Technology | Conventional Magnetic Recording (CMR) |
| Areal Density | Up to ~1,100 Gb/in² (per platter) |
| Average Latency | 4.16 ms |
| Interface Transfer Rate | 12 Gb/s (SAS), 6 Gb/s (SAS backward compatible) |
| Command Queue Depth | Up to 254 commands per port |
| Annual Workload Rating | 550 TB/year |
| MTBF | 2,500,000 hours |
| Non-Recoverable Read Errors | < 1 per 10^15 bits read |
| Power Consumption (Active, Idle) | Approx. 9.0 W active / 5.0 W idle (PowerChoice enabled) |
| Enclosure | Helium-sealed hermetic design |
| Form Factor | 3.5-inch LFF |
| Height | 26.11 mm (1.028 in) |
| Weight | Approximately 650 g |
| Operating Temperature | 5°C to 60°C |
| Vibration Resistance | Rotational Vibration (RV) sensors with compensation circuitry |
| Data Security Options | AES-256 SED (Self-Encrypting Drive); SED-FIPS 140-2 validated variant available |
| Error Correction & Data Integrity | T10 PI (Protection Information) end-to-end data integrity; LDPC ECC |
| Management | SCSI Enclosure Services (SES-3) compatible |
| Launch Quarter | Q2 2025 |
