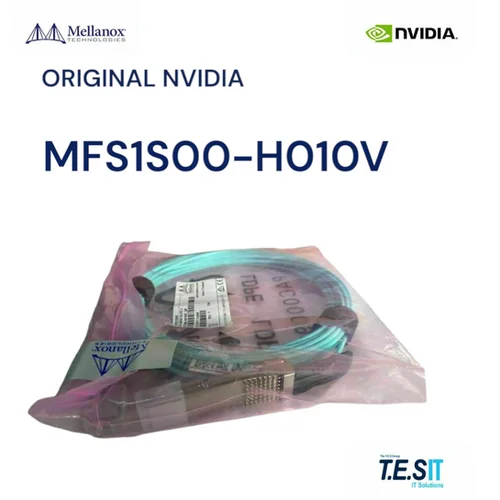

Mellanox MFS1S00-H010V LinkX QSFP56 HDR Active Optical Cable, 10m
Brand: Mellanox | Category: Transceivers & Cables
SKU: MEL-MFS1S00-H010V | Part #: MFS1S00-H010V | MPN: MFS1S00-H010V
Contact for Pricing — Request a Quote
About the Mellanox MFS1S00-H010V LinkX QSFP56 HDR Active Optical Cable, 10m
The Mellanox MFS1S00-H010V LinkX QSFP56 HDR Active Optical Cable, 10m from Mellanox is enterprise-grade Transceivers & Cables hardware built for data centers. It features QSFP56 form factor, InfiniBand interface. The Mellanox MFS1S00-H010V is a QSFP56 HDR Active Optical Cable (AOC) delivering 200Gb/s aggregate bandwidth over a 10-meter fiber span. Designed for HDR InfiniBand at 200Gb/s, the cable integrates active optical transceivers within the QSFP56 connectors at each end, converting electrical signals to optical for low-loss, high-fidelity transmission across distances that exceed the reach of passive copper alternatives. The active electrical interface ensures full signal integri Available in brand new condition. Mellanox transceivers & cables products are trusted by enterprises and data centers worldwide. Available from Omnixon Global. Contact our sales team to request a quote.
Technical Specifications
| Brand | Mellanox |
| Category | Transceivers & Cables |
| SKU | MEL-MFS1S00-H010V |
| Part Number | MFS1S00-H010V |
| Condition | New |
| Form Factor | QSFP56 |
| Interface | InfiniBand |
| Cable Type | Active Optical Cable (AOC) |
| Connector Type | QSFP56 (both ends) |
| Protocol | HDR InfiniBand |
| Aggregate Data Rate | 200Gb/s |
| Lane Configuration | 8 lanes x 25Gb/s |
| Cable Length | 10 meters |
| Fiber Type | Multi-mode optical fiber |
| Form Factor | QSFP56 |
| Duplex Operation | Full-duplex |
| Operating Temperature | 0°C to 70°C |
| Connector Housing | Integrated active optics within QSFP56 shell |
| Host Compatibility | Mellanox ConnectX-6 HCAs, Mellanox HDR InfiniBand switches (e.g., QM8700) |
| Standard Compliance | InfiniBand Architecture Specification HDR |
| Cable Jacket | Low-smoke zero-halogen (LSZH) |
| Signal Direction | Bidirectional (TX and RX per end) |
Frequently Asked Questions about Mellanox MFS1S00-H010V LinkX QSFP56 HDR Active Optical Cable, 10m
What does the Mellanox MFS1S00-H010V LinkX QSFP56 HDR Active Optical Cable, 10m do?
The Mellanox MFS1S00-H010V LinkX QSFP56 HDR Active Optical Cable, 10m is enterprise IT hardware deployed in production data centers, server rooms, and edge sites across the GCC and EMEA region.
What are the headline specs of the Mellanox MFS1S00-H010V LinkX QSFP56 HDR Active Optical Cable, 10m?
Key specifications for the Mellanox MFS1S00-H010V LinkX QSFP56 HDR Active Optical Cable, 10m: form factor QSFP56; interface InfiniBand; new condition; cable type Active optical cable (AOC); connector a QSFP56; connector b QSFP56; length 10m; use case HDR InfiniBand and high-speed switch/server interconnects. Manufacturer part number MFS1S00-H010V. For the full datasheet with electrical, environmental, and compliance details, contact our pre-sales engineering team.
