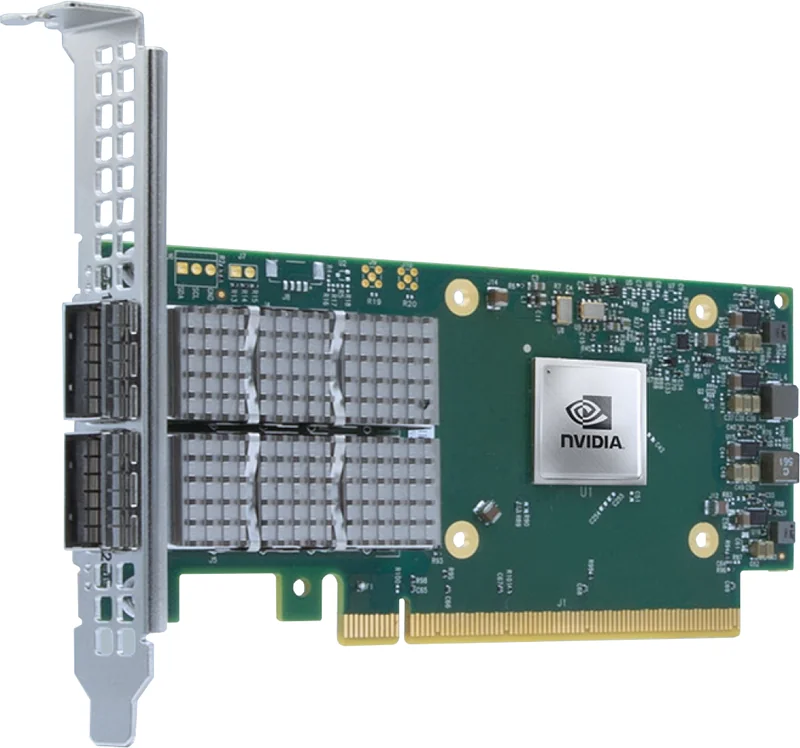

Mellanox MCX631102AS-ADAT ConnectX-6 Lx EN Adapter, 2x SFP28, 10/25GbE
Brand: Mellanox | Category: Transceivers & Cables
SKU: MEL-MCX631102AS-ADAT | Part #: MCX631102AS-ADAT | MPN: MCX631102AS-ADAT
Contact for Pricing — Request a Quote
About the Mellanox MCX631102AS-ADAT ConnectX-6 Lx EN Adapter, 2x SFP28, 10/25GbE
The Mellanox MCX631102AS-ADAT ConnectX-6 Lx EN Adapter, 2x SFP28, 10/25GbE from Mellanox is enterprise-grade Transceivers & Cables hardware built for data centers. It features 25Gb capacity, HHHL form factor, PCIe 4.0 x8 interface, 10/25GbE speed. The Mellanox MCX631102AS-ADAT ConnectX-6 Lx EN Adapter is a dual-port 10/25GbE network interface card built on the ConnectX-6 Lx ASIC architecture. It provides two SFP28 ports capable of operating at 10GbE or 25GbE line rates and connects to the host server via a PCIe 4.0 x8 interface, delivering the bandwidth headroom needed to prevent the network from becoming a bottleneck in modern NVMe-backed and compute-dense environments. The adapter operates in single-root I/O virtuali Available in brand new condition. Mellanox transceivers & cables products are trusted by enterprises and data centers worldwide. Available from Omnixon Global. Contact our sales team to request a quote.
Technical Specifications
| Brand | Mellanox |
| Category | Transceivers & Cables |
| SKU | MEL-MCX631102AS-ADAT |
| Part Number | MCX631102AS-ADAT |
| Condition | New |
| Capacity | 25Gb |
| Form Factor | HHHL |
| Interface | PCIe 4.0 x8 |
| Speed | 10/25GbE |
| Manufacturer Part Number | MCX631102AS-ADAT |
| Product Family | ConnectX-6 Lx EN |
| Number of Ports | 2 |
| Port Type | SFP28 |
| Data Rate per Port | 10GbE / 25GbE |
| Host Interface | PCIe 4.0 x8 |
| Form Factor | HHHL (Half-Height Half-Length) |
| RDMA Support | RoCE v1, RoCE v2 |
| SR-IOV Virtual Functions | Up to 127 VFs per port |
| Offload Engines | TCP/UDP/IP checksum, LSO, RSS, VXLAN/GENEVE encapsulation offload |
| PTP Hardware Timestamping | Yes |
| Operating Temperature | 0°C to 55°C |
| Power Consumption (typical) | Approximately 15 W |
| Driver Support | NVIDIA OFED (Linux), Inbox drivers for Windows Server, VMware ESXi |
| Regulatory Compliance | CE, FCC, RoHS |
| Dimensions (card) | HHHL standard PCIe bracket dimensions |
Frequently Asked Questions about Mellanox MCX631102AS-ADAT ConnectX-6 Lx EN Adapter, 2x SFP28, 10/25GbE
What does the Mellanox MCX631102AS-ADAT ConnectX-6 Lx EN Adapter, 2x SFP28, 10/25GbE do?
The Mellanox MCX631102AS-ADAT ConnectX-6 Lx EN Adapter, 2x SFP28, 10/25GbE is enterprise IT hardware deployed in production data centers, server rooms, and edge sites across the GCC and EMEA region.
What are the headline specs of the Mellanox MCX631102AS-ADAT ConnectX-6 Lx EN Adapter, 2x SFP28, 10/25GbE?
Key specifications for the Mellanox MCX631102AS-ADAT ConnectX-6 Lx EN Adapter, 2x SFP28, 10/25GbE: capacity 25Gb; form factor HHHL; interface PCIe 4.0 x8; new condition; adapter family ConnectX-6 Lx EN Adapter; network ports 2x SFP28; supported speed 10/25GbE; host interface PCIe 4.0 x8; form factor HHHL; use case High-performance server networking, virtualization, storage, AI, and cloud. Manufacturer part number MCX631102AS-ADAT. For the full datasheet with electrical, environmental, and compliance details, contact our pre-sales engineering team.
