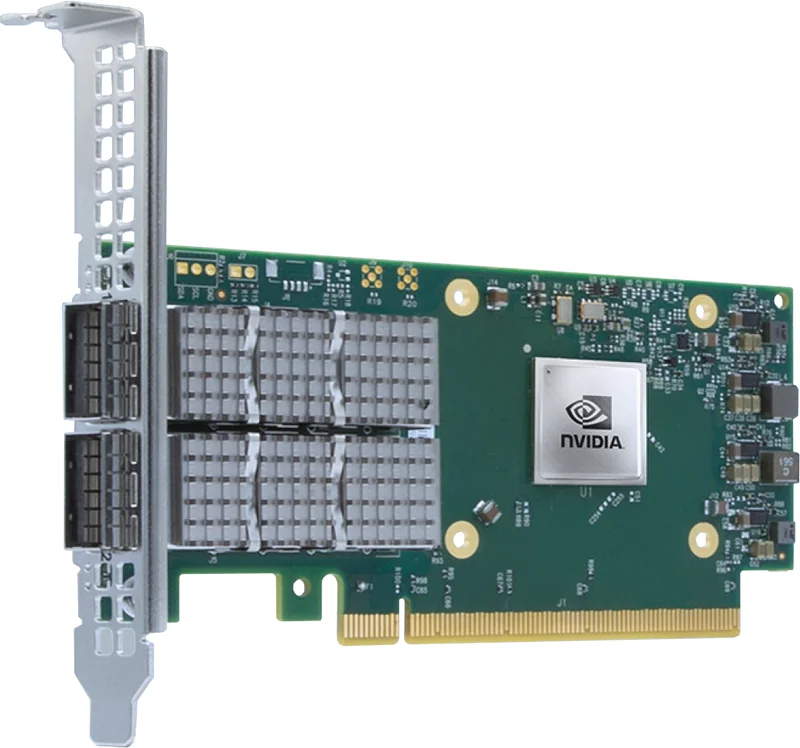

Mellanox MCX623106AN-CDAT ConnectX-6 Dx EN Adapter, 2x QSFP56, 100GbE
Brand: Mellanox | Category: Transceivers & Cables
SKU: MEL-MCX623106AN-CDAT | Part #: MCX623106AN-CDAT | MPN: MCX623106AN-CDAT
Contact for Pricing — Request a Quote
About the Mellanox MCX623106AN-CDAT ConnectX-6 Dx EN Adapter, 2x QSFP56, 100GbE
The Mellanox MCX623106AN-CDAT ConnectX-6 Dx EN Adapter, 2x QSFP56, 100GbE from Mellanox is enterprise-grade Transceivers & Cables hardware built for data centers. It features 100Gb capacity, HHHL form factor, PCIe Gen4 interface, 100GbE speed. The Mellanox MCX623106AN-CDAT ConnectX-6 Dx EN Adapter is a dual-port 100GbE network interface card designed for demanding server and appliance deployments requiring high throughput and low latency Ethernet connectivity. Built on the ConnectX-6 Dx silicon, it features two QSFP56 ports operating at 100Gb/s each and connects to the host via a PCIe 4.0 x16 interface, delivering the bandwidth necessary to keep pace with modern NVMe storage, GPU compute, and high-frequency trading Available in brand new condition. Mellanox transceivers & cables products are trusted by enterprises and data centers worldwide. Available from Omnixon Global. Contact our sales team to request a quote.
Technical Specifications
| Brand | Mellanox |
| Category | Transceivers & Cables |
| SKU | MEL-MCX623106AN-CDAT |
| Part Number | MCX623106AN-CDAT |
| Condition | New |
| Capacity | 100Gb |
| Form Factor | HHHL |
| Interface | PCIe Gen4 |
| Speed | 100GbE |
| Product Line | ConnectX-6 Dx EN |
| Form Factor | PCIe Adapter (Low Profile and Full Height brackets included) |
| Number of Ports | 2 |
| Port Interface | QSFP56 |
| Ethernet Speeds Supported | 10GbE, 25GbE, 40GbE, 50GbE, 100GbE per port |
| Aggregate Bandwidth | 200GbE (2 x 100GbE) |
| Host Interface | PCIe 4.0 x16 |
| Host Interface Bandwidth | Up to 256 Gb/s bidirectional |
| RDMA Protocol | RoCEv2 (RDMA over Converged Ethernet v2) |
| SR-IOV Virtual Functions | Up to 256 per adapter |
| Inline Crypto Offload | IPsec and TLS 1.3 hardware acceleration |
| Tunneling Offload | VXLAN, NVGRE, MPLS |
| Flow Control | Priority Flow Control (PFC), Enhanced Transmission Selection (ETS) |
| Stateless Offloads | TX/RX checksum, Large Send Offload (LSO), Large Receive Offload (LRO) |
| Operating System Support | Linux (MLNX_OFED), Windows Server, VMware ESXi |
| Operating Temperature | 0°C to 55°C |
| Power Consumption (Typical) | Approximately 25 W |
| Regulatory Compliance | CE, FCC, RoHS |
| Dimensions | Standard PCIe half-length card; low-profile bracket included |
Frequently Asked Questions about Mellanox MCX623106AN-CDAT ConnectX-6 Dx EN Adapter, 2x QSFP56, 100GbE
What does the Mellanox MCX623106AN-CDAT ConnectX-6 Dx EN Adapter, 2x QSFP56, 100GbE do?
The Mellanox MCX623106AN-CDAT ConnectX-6 Dx EN Adapter, 2x QSFP56, 100GbE is enterprise IT hardware deployed in production data centers, server rooms, and edge sites across the GCC and EMEA region.
What are the headline specs of the Mellanox MCX623106AN-CDAT ConnectX-6 Dx EN Adapter, 2x QSFP56, 100GbE?
Key specifications for the Mellanox MCX623106AN-CDAT ConnectX-6 Dx EN Adapter, 2x QSFP56, 100GbE: capacity 100Gb; form factor HHHL; interface PCIe 4.0 x16; new condition; adapter family ConnectX-6 Dx EN Adapter; network ports 2x QSFP56; supported speed 100GbE; host interface PCIe 4.0 x16; form factor HHHL; use case High-performance server networking, virtualization, storage, AI, and cloud. Manufacturer part number MCX623106AN-CDAT. For the full datasheet with electrical, environmental, and compliance details, contact our pre-sales engineering team.
