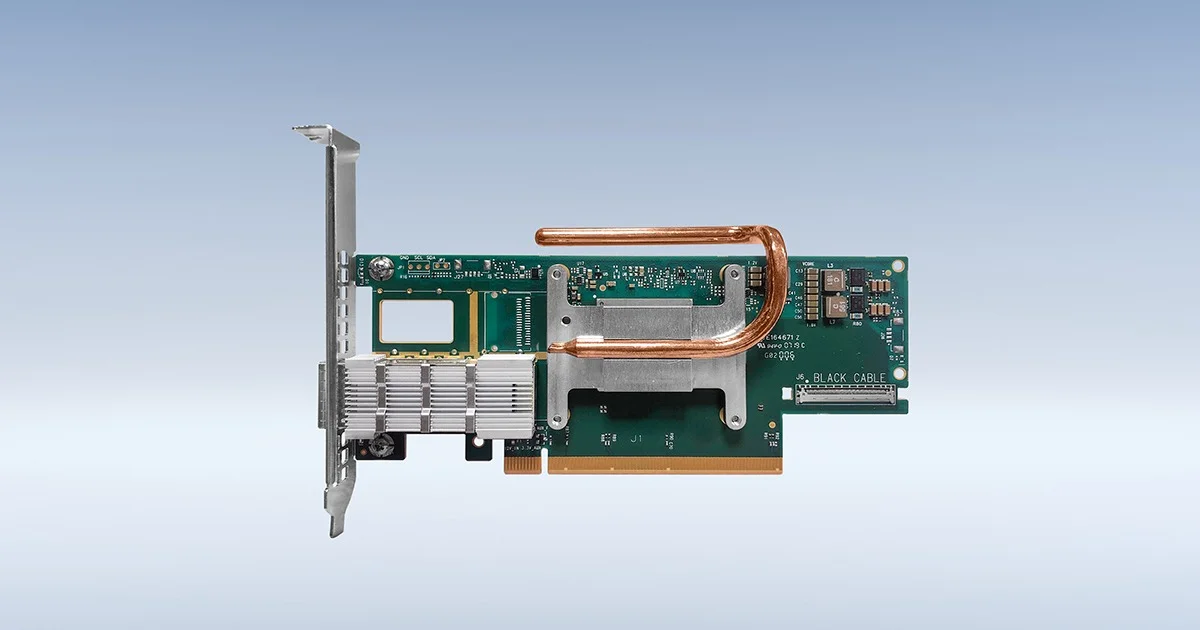

Mellanox ConnectX-6 Dx MCX623106AN-CDA EN Adapter
Brand: Mellanox | Category: Network Adapters & NICs
SKU: MEL-MCX623106AN-CDA | Part #: MCX623106AN-CDA | MPN: MCX623106AN-CDA
Contact for Pricing — Request a Quote
About the Mellanox ConnectX-6 Dx MCX623106AN-CDA EN Adapter
The Mellanox ConnectX-6 Dx MCX623106AN-CDA EN Adapter from Mellanox is enterprise-grade Network Adapters & NICs hardware built for data centers. The Mellanox ConnectX-6 Dx MCX623106AN-CDA EN Adapter is a dual-port 100GbE network interface card designed for demanding server and appliance deployments requiring high throughput and low latency Ethernet connectivity. Built on the ConnectX-6 Dx silicon, it features two QSFP56 ports operating at 100Gb/s each and connects to the host via a PCIe 4.0 x16 interface. Available in brand new condition. Mellanox network adapters & nics products are trusted by enterprises and data centers worldwide. Available from Omnixon Global. Contact our sales team to request a quote.
Technical Specifications
| Brand | Mellanox |
| Category | Network Adapters & NICs |
| SKU | MEL-MCX623106AN-CDA |
| Part Number | MCX623106AN-CDA |
| Condition | New |
| Manufacturer Part Number | MCX623106AN-CDA |
| Form Factor | PCIe Adapter Card |
| Port Configuration | 2 x 100GbE QSFP56 |
| Host Interface | PCIe 4.0 x16 |
| Aggregate Data Transfer Rate | 200 Gbps |
| Architecture | ConnectX-6 Dx ASIC |
| Port Speed per Interface | 100 Gbps |
| Supported Protocols | Ethernet, TCP/IP, RDMA (RoCE), InfiniBand |
| Memory | DDR4 SODIMM slot |
| Operating Temperature | 0–55°C |
| Power Consumption | 35 W |
| Dimensions (L x W x H) | 17.2 x 11.1 x 2.7 cm |
| Acceleration Features | On-card processing for encryption, compression, and RDMA |
