Fujitsu PRIMERGY RX2540 M6
Brand: Fujitsu | Category: Servers
SKU: FUJI-VFYR2546SC010IN | Part #: VFY:R2546SC010IN | MPN: VFY:R2546SC010IN
Contact for Pricing — Request a Quote

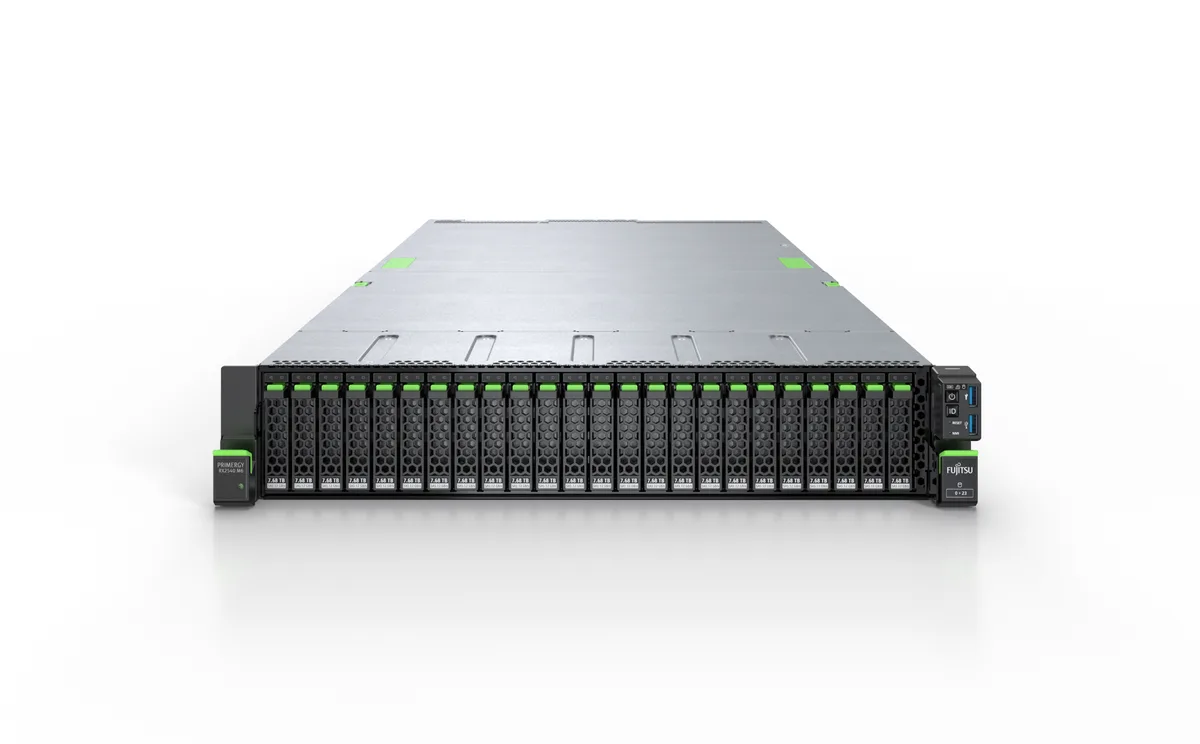

About the Fujitsu PRIMERGY RX2540 M6
The Fujitsu PRIMERGY RX2540 M6 from Fujitsu is enterprise-grade Servers hardware built for data centers. Fujitsu's flagship dual-socket 2U rack server built on 3rd Gen Intel Xeon Scalable for demanding enterprise and cloud workloads. Available in brand new condition. Available from Omnixon Global — contact our team to request a quote.
Technical Specifications
| Brand | Fujitsu |
| Category | Servers |
| SKU | FUJI-VFYR2546SC010IN |
| Part Number | VFY:R2546SC010IN |
| Condition | New |
| Form Factor | 2U Rack |
| Processor Family | 3rd Gen Intel Xeon Scalable (Ice Lake) |
| Sockets | 2 |
| Max Cores (Total) | 80 cores / 160 threads (2x 40-core) |
| Max TDP per Socket | 270W |
| Memory Type | DDR4-3200 ECC RDIMM / LRDIMM / Intel Optane PMem 200 |
| Memory Slots | 32 (16 per socket) |
| Max Memory | 4TB DDR4 (8TB with PMem) |
| Drive Bays | Up to 24 x 2.5" SAS/SATA/NVMe (configurable) |
| Storage Controller | Fujitsu PRAID EP580i (4GB cache, RAID 0/1/5/6/10/50/60), PRAID CP400i |
| Max Internal Storage | Up to 184TB raw (with 7.68TB NVMe SSDs) |
| NVMe Support | Yes, up to 24 NVMe via PCIe 4.0 |
| Onboard Network | 2 x 1GbE (iRMC dedicated) + 2 x 10GbE LOM (Intel X722) |
| PCIe Expansion Slots | Up to 9 x PCIe 4.0 slots (mix of x8/x16) |
| GPU Support | Up to 3 x double-width PCIe GPU (NVIDIA/AMD) |
| Power Supply | 2 x 800W or 2 x 1600W Platinum hot-plug redundant |
| Management | iRMC S6, ServerView Suite, IPMI 2.0, Redfish API, SNMP |
| Dimensions (WxDxH) | 482 x 800 x 87 mm |
| Weight | ~30 kg (max config) |
| OS Support | Windows Server 2019/2022, RHEL 8/9, SLES 15, VMware vSphere 7/8, Ubuntu 20.04/22.04 |
| Cooling | Hot-plug redundant fan modules, N+1 configuration |
| Security | TPM 2.0, Secure Boot, iRMC encrypted management channel |
Frequently Asked Questions about Fujitsu PRIMERGY RX2540 M6
What does the Fujitsu PRIMERGY RX2540 M6 do?
The Fujitsu PRIMERGY RX2540 M6 is built for enterprise data-center workloads — virtualization (VMware, Proxmox, Nutanix), private cloud, database hosting, and AI/ML training. It fits standard EIA-310 server racks and supports redundant PSUs and hot-swap drives common in production environments.
What are the headline specs of the Fujitsu PRIMERGY RX2540 M6?
Key specifications for the Fujitsu PRIMERGY RX2540 M6: new condition; manufacturer Fujitsu; form factor 2U Rack; processor family 3rd Gen Intel Xeon Scalable (Ice Lake); sockets 2; max cores (total) 80 cores / 160 threads (2x 40-core); max tdp per socket 270W. Manufacturer part number VFY:R2546SC010IN. For the full datasheet with electrical, environmental, and compliance details, contact our pre-sales engineering team.
