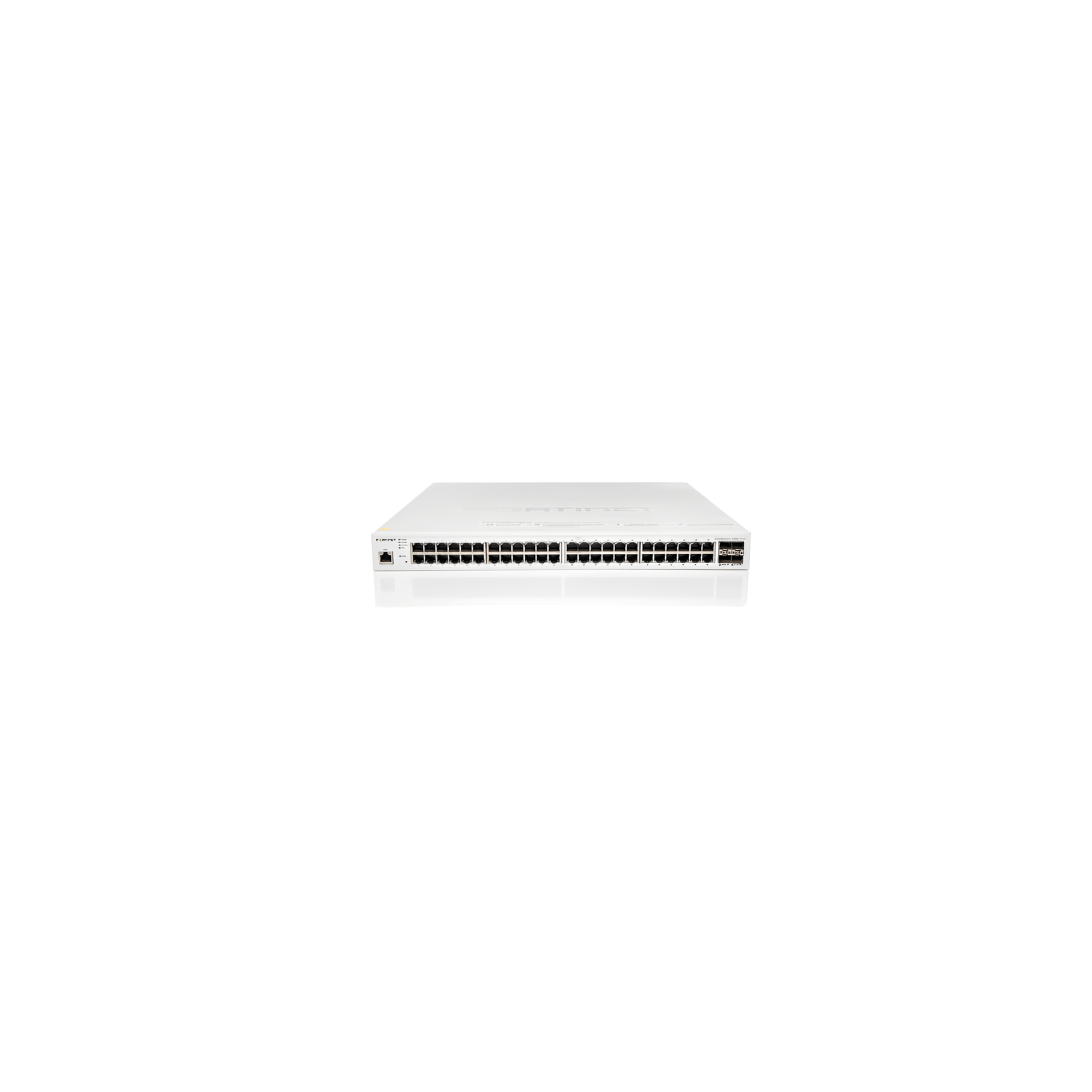

Fortinet FortiSwitch 248E-FPOE 48-Port Full PoE Switch
Brand: Fortinet | Category: Network Switches
SKU: FTNT-FS248E-FPOE-001 | Part #: FS-248E-FPOE | MPN: FS-248E-FPOE
Contact for Pricing — Request a Quote
About the Fortinet FortiSwitch 248E-FPOE 48-Port Full PoE Switch
The Fortinet FortiSwitch 248E-FPOE 48-Port Full PoE Switch from Fortinet is enterprise-grade Network Switches hardware built for data centers. It features 10GbE interface. The Fortinet FortiSwitch 248E-FPOE (FS-248E-FPOE) is a security-driven Layer 2/3 access switch delivering 48 full Power over Ethernet ports alongside four 10GbE SFP+ uplinks, purpose-built for integration within Fortinet's Security Fabric. When managed through a FortiGate next-generation firewall via FortiLink, the switch becomes a logical extension of the firewall policy engine, enabling unified wired and wireless network access control, dynamic VLAN assignment, and 802.1X p Available in brand new condition. Fortinet network switches products are trusted by enterprises and data centers worldwide. Available from Omnixon Global. Contact our sales team to request a quote.
Technical Specifications
| Brand | Fortinet |
| Category | Network Switches |
| SKU | FTNT-FS248E-FPOE-001 |
| Part Number | FS-248E-FPOE |
| Condition | New |
| Interface | 10GbE |
| Manufacturer Part Number | FS-248E-FPOE |
| Form Factor | 1U Rack-Mount |
| Total Ports | 52 |
| PoE Downlink Ports | 48 × 10/100/1000BASE-T (Full PoE) |
| Uplink Ports | 4 × 10GbE SFP+ |
| PoE Standards Supported | IEEE 802.3af, 802.3at, 802.3bt |
| Total PoE Budget | 740 W |
| Switching Capacity | 176 Gbps |
| Forwarding Rate | 130.95 Mpps |
| MAC Address Table Size | 32,768 entries |
| VLANs Supported | 4,094 |
| Jumbo Frame Support | 9,216 bytes |
| Layer 2 Features | 802.1Q VLAN, RSTP, MSTP, LACP (802.3ad), IGMP Snooping, Spanning Tree |
| Layer 3 Features | Static Routing, Inter-VLAN Routing |
| Security Features | 802.1X Port Authentication, MAC-Based Authentication, DHCP Snooping, Dynamic ARP Inspection, IP Source Guard, Quarantine VLAN |
| Management Integration | FortiLink (FortiGate-managed), FortiManager compatible |
| QoS | 802.1p, DSCP marking and queuing, 8 queues per port |
| Rack Units | 1U |
| Power Supply | Redundant PSU capable (internal) |
| Operating Temperature | 0°C to 45°C |
| Compliance | FCC, CE, RCM, VCCI, UL/cUL |
Frequently Asked Questions about Fortinet FortiSwitch 248E-FPOE 48-Port Full PoE Switch
What does the Fortinet FortiSwitch 248E-FPOE 48-Port Full PoE Switch do?
The Fortinet FortiSwitch 248E-FPOE 48-Port Full PoE Switch is enterprise networking hardware for data-center, campus, and branch deployments. Common roles include core/distribution switching, server uplinks, top-of-rack fabric, and edge connectivity in mixed Cisco/Juniper/Arista environments.
Is the Fortinet FortiSwitch 248E-FPOE 48-Port Full PoE Switch compatible with my infrastructure?
The Fortinet FortiSwitch 248E-FPOE 48-Port Full PoE Switch interoperates with standard switching protocols (LACP, MLAG/VPC, 802.1Q, OSPF/BGP). For specific cross-vendor scenarios — Cisco-to-Arista MLAG peering, fabric integration with Cumulus/SONiC, or migration from legacy Catalyst — our network engineers map a compatibility plan as part of the RFQ.
